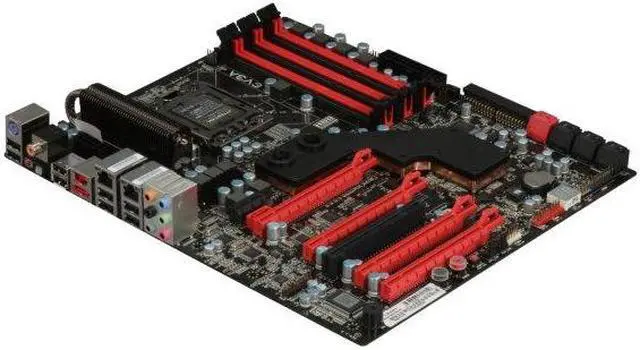

EVGA 141-BL-E769-A1 LGA 1366 Intel X58 Extended ATX SLI Classified Hydro Copper Intel Motherboard
- Intel X58
- Core i7 (LGA1366)
- DDR3 1600MHz+
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EVGA 141-BL-E769-A1
| Brand | EVGA |
|---|---|
| Model | 141-BL-E769-A1 |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| FSB | QPI 6.4GT/S |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Number of Memory Slots | 6x240pin |
|---|---|
| Memory Standard | DDR3 1600MHz+ |
| Maximum Memory Supported | 24GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 4 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5/JBOD |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|

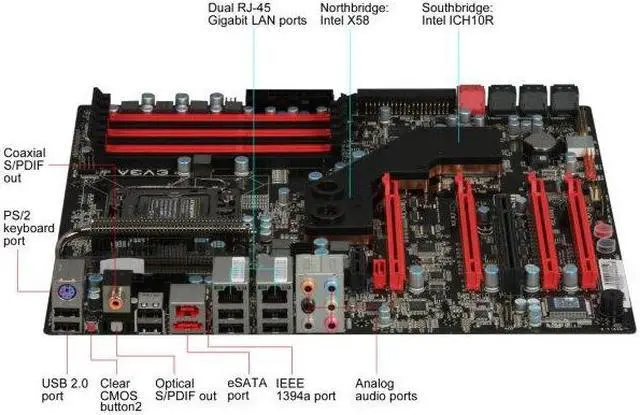

| Back I/O Ports | 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard 1394 | 1 x 1394a |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 10.38" |
| Power Pin | 24 Pin |
| Features | EVGA Vdroop Control EVGA E-LEET Tuning utility EVGA EZ Voltage read points Onboard Clear CMOS, Power, and Reset Buttons Onboard CPU Temperature Monitor Passive chipset heatsink EVGA SPD Utility that saves to the motherboards bios 100% Solid State Capacitors |
|---|
| Date First Available | June 23, 2009 |
|---|
