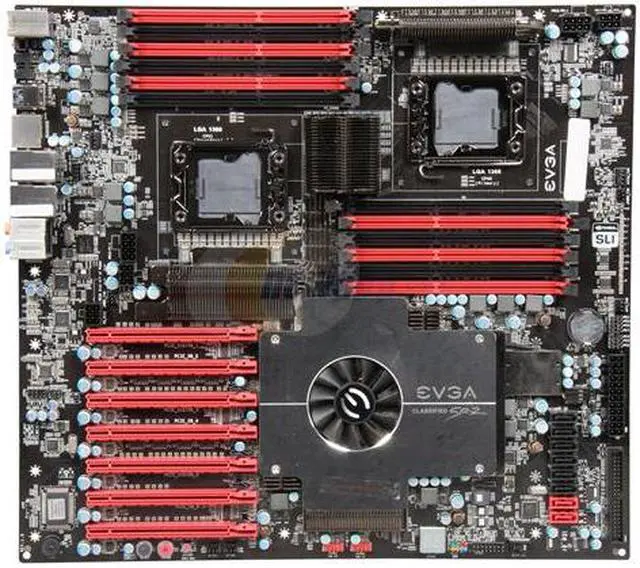

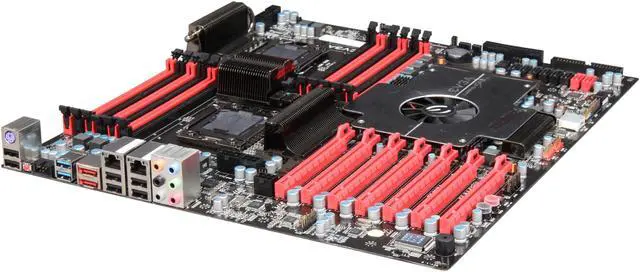

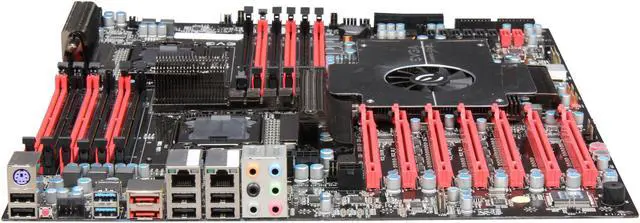

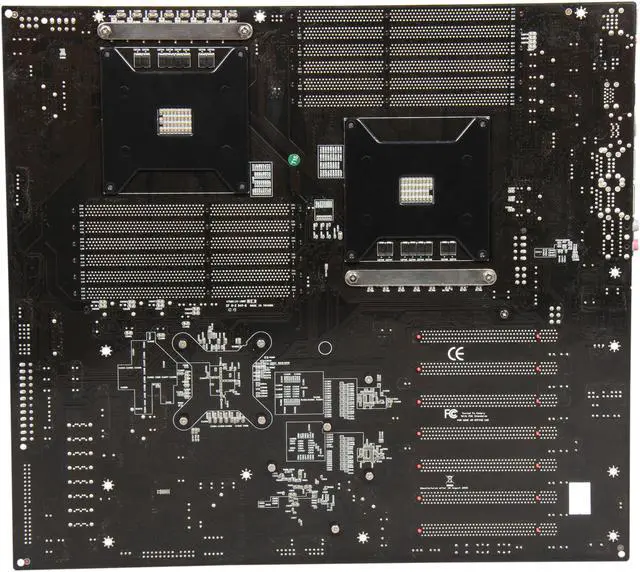

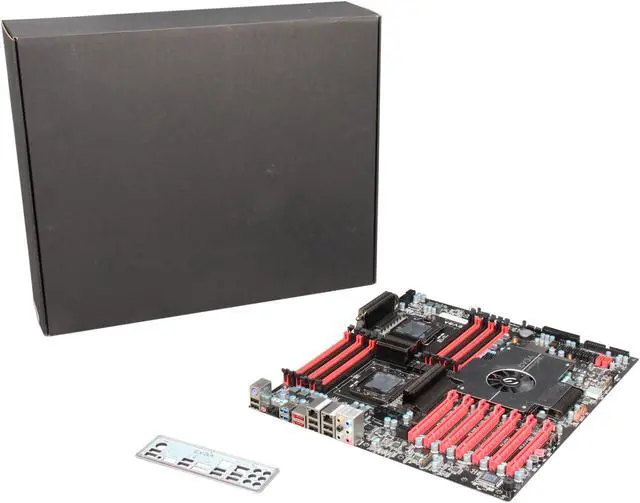

EVGA 270-WS-W555-RX LGA 1366 Intel 5520 USB 3.0 HPTX Intel Motherboard
REFURBISHED Product Type
- Intel 5520
- Xeon (LGA1366)
- DDR3 2000 (OC)/1866 (OC)/1600 (OC)/1333/1066
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EVGA 270-WS-W555-RX
| Brand | EVGA |
|---|---|
| Model | 270-WS-W555-RX |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Xeon (LGA1366) |
| FSB | QPI 6.4GT/S |
| Chipset | Intel 5520 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 12x240pin |
|---|---|
| Memory Standard | DDR3 2000 (OC)/1866 (OC)/1600 (OC)/1333/1066 |
| Maximum Memory Supported | 48GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 7 (4 x16 or 6 x8 + 1 x16) |
|---|
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10/JBOD |
| Audio Chipset | Realtek ALC889 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | 2 x Marvell 88E8057 |
|---|---|
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 1 |
|---|---|
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 2 x eSATA 3Gb/s |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | HPTX |
|---|---|
| Dimensions (W x L) | 15" x 13.6" |
| Power Pin | 24 Pin |
| Features | Supports Intel Xeon Socket Dual QP11366 Processors Intel 5520 Chipset 8+2 Phase PWM w/ switching frequency up to 1,333KHz Supports 2-way SLI, 3-way SLI, 4-way SLI or CrossFireX 100% Solid State Capacitors AMI BIOS 8 Fan Headers EVGA Vdroop Control EVGA Dummy OC EVGA E-LEET Tuning Utility EVGA EZ Voltage read points Onboard Clear CMOS, Power, and Reset Buttons |
|---|
| First Listed on Newegg | July 07, 2011 |
|---|
