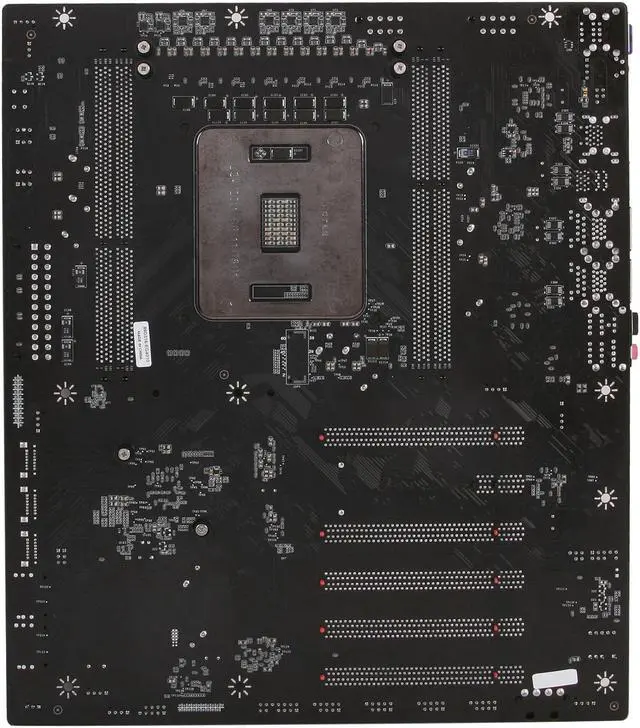

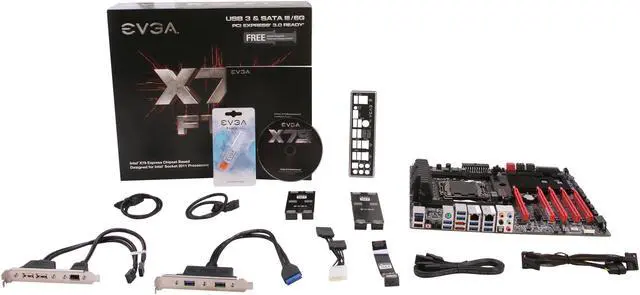

EVGA X79 FTW – LGA 2011 Intel X79 SATA 6Gb/s USB 3.0 E-ATX Motherboard

(39) Write a Review
  • Intel X79
  • Core i7 (LGA2011)
  • DDR3 2133/1866
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (39)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the EVGA X79 FTW (151-SE-E777-K2)

Model
Brand EVGA
Model X79 FTW (151-SE-E777-K2)
Supported CPU
CPU Socket Type LGA 2011
CPU Type Core i7 (LGA2011)
Chipsets
Chipset Intel X79
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2133/1866/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 5 (1x16, 2x16 or 3x8 )
PCI Express x1 1 x PCI Express x1
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 4 x SATA 3Gb/s Support for RAID 0/1/0+1/5/10/JBOD
2 x SATA 6Gb/s Support for Raid0/1.
Onboard Audio
Audio Chipset Realtek ALC898
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8059
Second LAN Chipset Marvell 88E8059
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 1
USB 3.0 8 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 8 x USB 2.0
Onboard 1394 1 x 1394b
Physical Spec
Form Factor Extended ATX
Dimensions (W x L) 12" x 10.38"
Power Pin 24 Pin
Features
Features Intel X79 Express Chipset

E-LEET Software Support

4 DIMM Quad-Channel DDR3 2133MHz+ (up to 32GB)

EVGA EVBot Support

8 Channel High Definition Audio + Optical

Dual BIOS Support

100% Solid State- Capacitors

EZ Voltage Read Points

6+2 Phase PWM

Onboard CPU Temp Monitor

PCI Express 3.0 Ready

CLEAR CMOS, Power and Reset
Additional Information
First Listed on Newegg June 15, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
