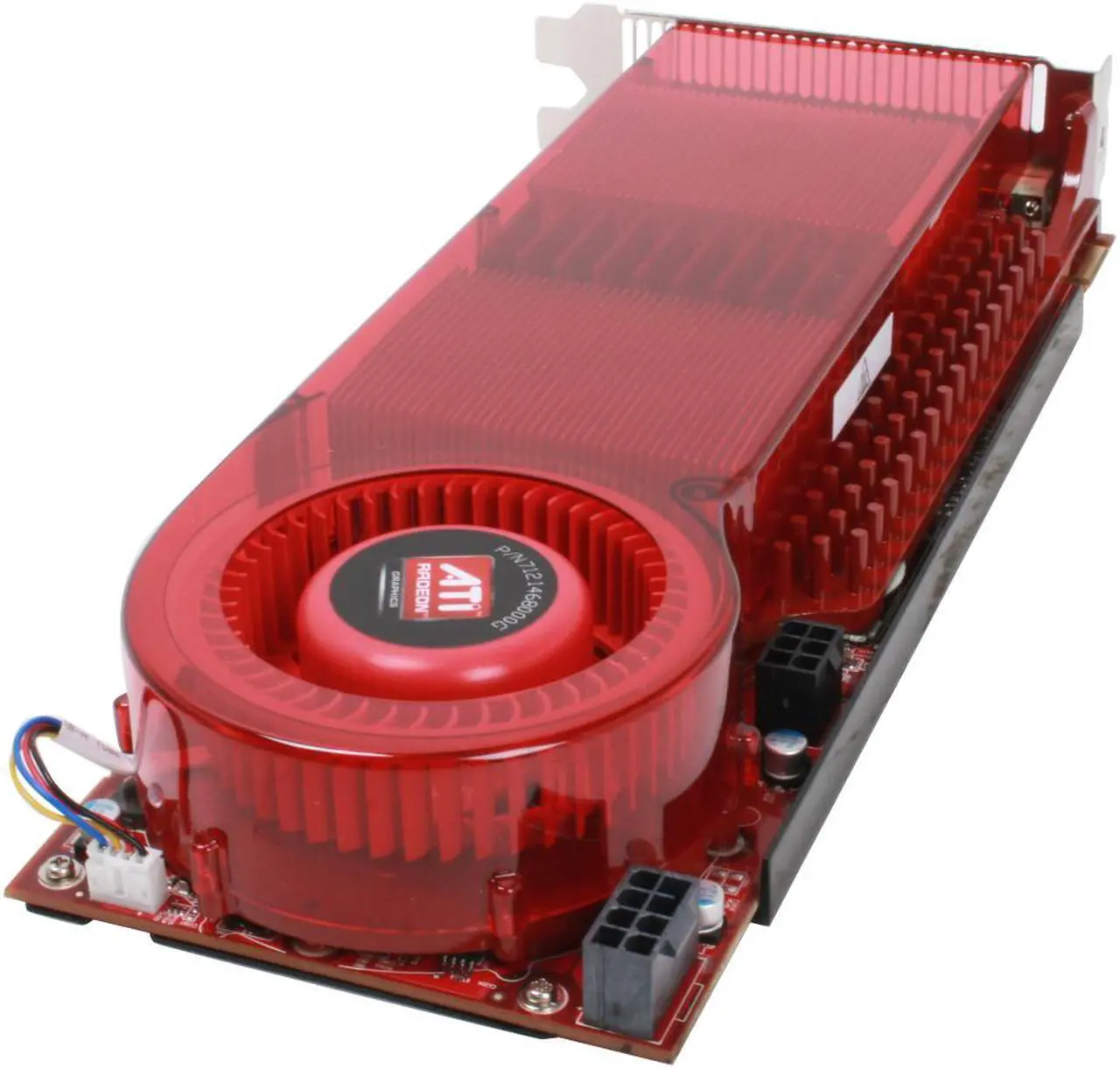

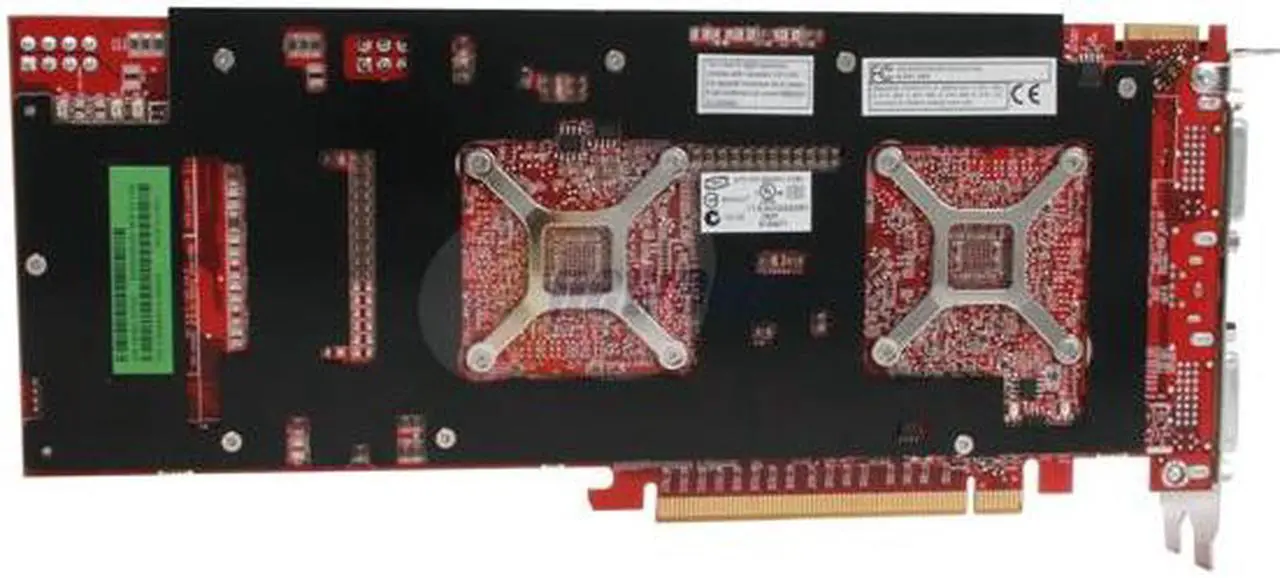

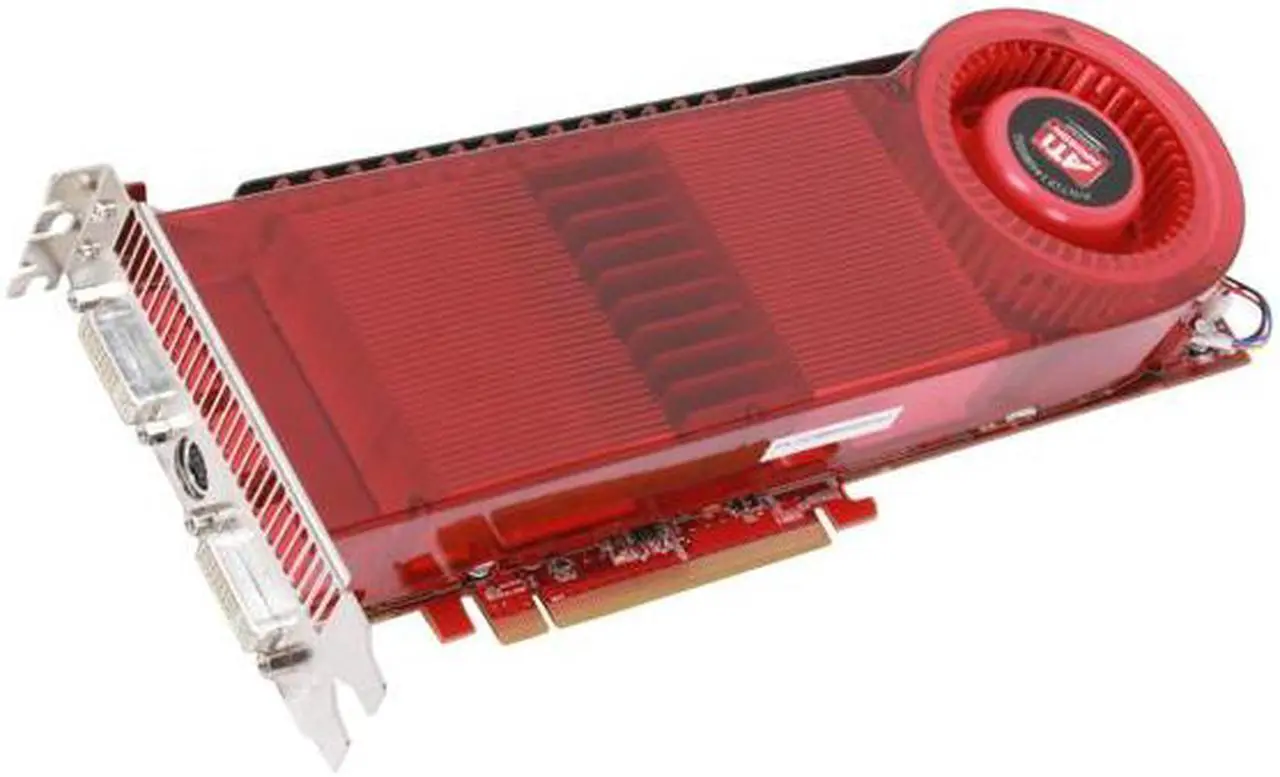

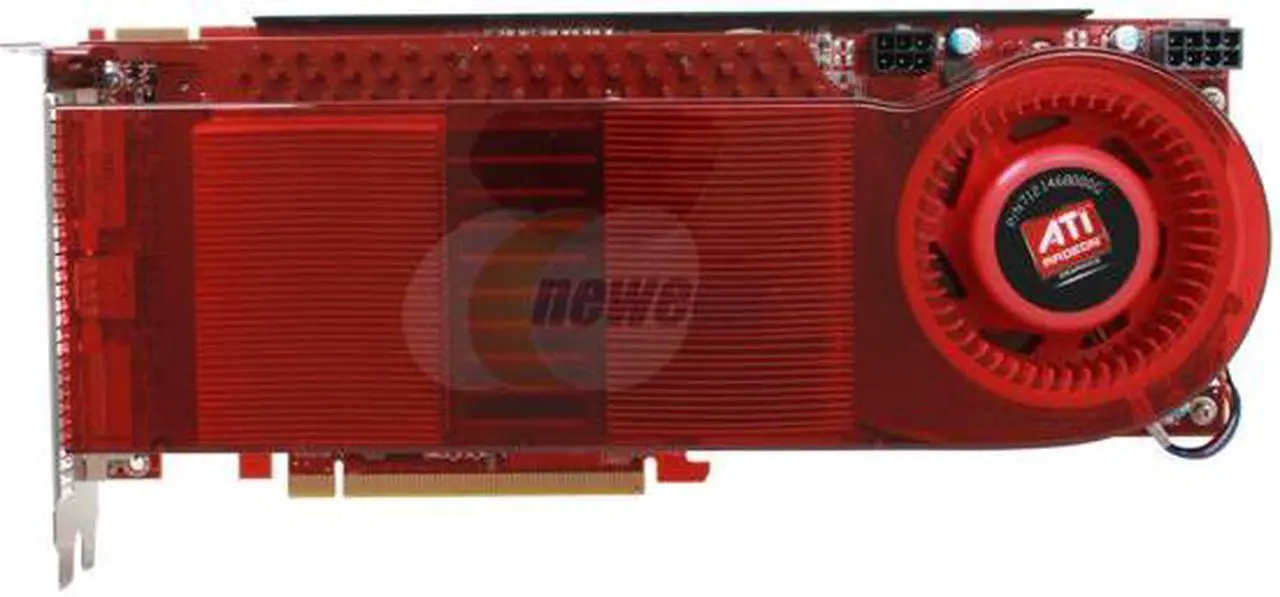

VisionTek Radeon HD 3870 X2 1GB (512MB x 2) GDDR3 PCI Express x16 CrossFireX Support Graphics Card 900209

(62) Write a Review
  • 1GB (512MB x 2) 512-bit (256-bit x 2) GDDR3
  • 2 x DVI 1 x HDMI (via Adapter)
  • 640 (320x2) Stream Processing Units
  • PCI Express x16
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (62)

Learn more about the VisionTek 900209

Model
Brand VisionTek
Model 900209
Interface
Interface PCI Express x16
Chipset
Chipset Manufacturer AMD
GPU Radeon HD 3870 X2
Stream Processors 640 (320x2) Stream Processing Units
Memory
Memory Size 1GB (512MB x 2)
Memory Interface 512-bit (256-bit x 2)
Memory Type GDDR3
3D API
DirectX DirectX 10.1
OpenGL OpenGL 2.0
Ports
HDMI 1 x HDMI (via Adapter)

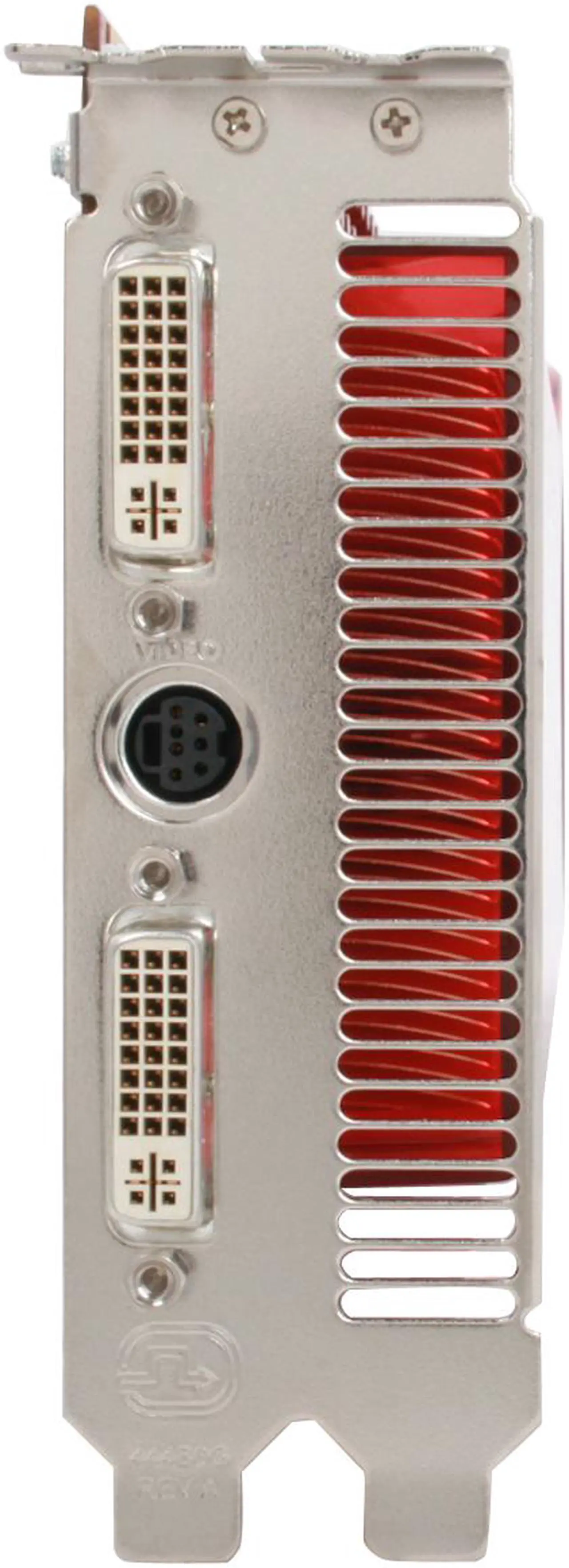

DVI 2 x DVI
TV-Out HDTV / S-Video Out
Details
RAMDAC 400MHz
Max Resolution 2560 x 1600
CrossFireX Support Yes
Cooler Single Fan
Operating Systems Supported Windows Vista (all versions)
Windows XP
Windows XP Media Center Edition
System Requirements Intel Pentium 4, Celeron, AMD Athlon 64, AMD Athlon XP, Sempron or compatible
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
550 Watt or greater power supply with two 2x3-pin PCIe power connectors required (750 Watt and four 6-pin connectors for dual ATI CrossFireX) .
For enhanced performance with ATI Overdrive, a power supply with one 2x3- pin and one 2x4-pin PCIe power connector is required
1GB of system memory
Installation software requires CD-ROM drive
DVD playback requires DVD drive
Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
For a complete ATI CrossFireX system, a second ATI Radeon HD 3870 X2 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per board (included) are required
Power Connector 1 x 6-Pin + 1 x 8-Pin
Dual-Link DVI Supported Yes
Windows Vista Certified for Windows Vista
HDCP Ready Yes
Features
Features Superscalar unified shader architecture
320 x2 stream processing units
256-bit memory x2 interface
DirectX 10.1 / Shader Model 4.1 support
ATI CrossFireX multi-GPU support for highly scalable performance
Use up to four GPUs with an AMD 790FX based motherboard
High-speed 128-bit HDR (High Dynamic Range) rendering
ATI Avivo HD video and display technology
Built-in HDMI and 5.1 surround audio
Unified Video Decoder (UVD) for Blu-ray and HD DVD
ATI PowerPlay energy conserving technology
Packaging
Package Contents 900209
Driver Disk
User Manual

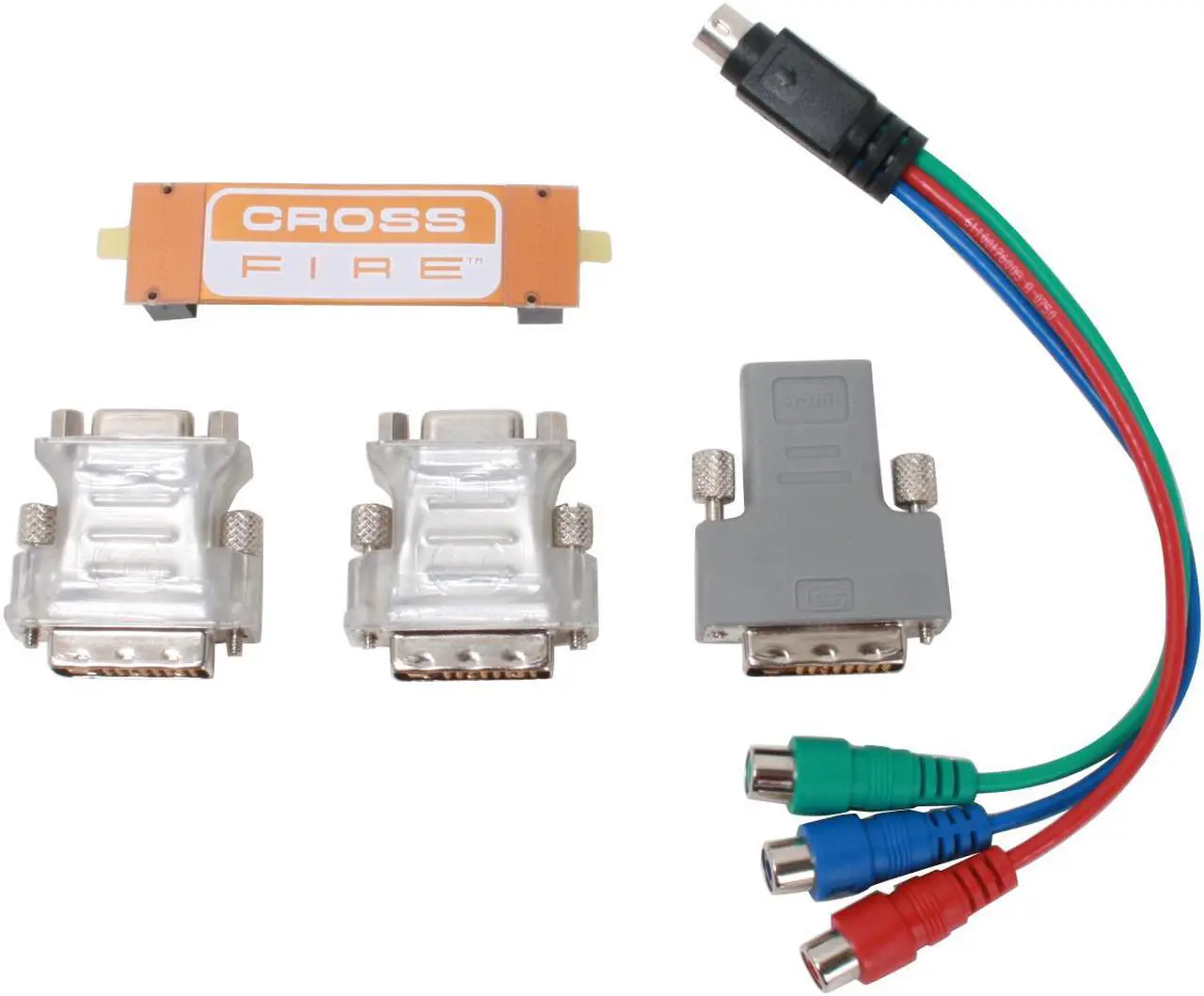

HDTV Cable
2 x DVI to VGA/D-sub Adapter
DVI to HDMI Adapter
CrossFire Bridge
Additional Information
Date First Available January 27, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
