Item#: N82E16814129172

Visiontek Radeon 5570 SFF 1GB DDR3 4M VHDCI DVI (4 x DVI-D)

  • 1GB DDR3
  • Core Clock 650 MHz
  • 400 Stream Processors
  • PCI Express 2.0 x16

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
AMD Radeon HD 5570

Great option for users who engage in monitor,
multi-view 2D/3D workstation acceleration.

The VisionTek AMD Radeon™ HD 5570 1GB SFF 4-port VHDCI x16 PCIe graphics card Part # 900345 offers the most features and functionality in its class with complete DirectX 11 support and the world's most advanced graphics, display features and technologies. Designed to deliver a feature laden gaming/computing experience, ATI Radeon™ HD 5570 enables a seamless HD gaming experience with amazing image quality. At the "heart" of the entertainment experience on the PC, things like video playback, editing and transferring content to portable media players are now fast and easy. Supports Windows 7 and future DirectX®11 games giving users incredible system performance in an energy efficient card that is easy to install with no external power supply needed.

4 Monitors
Achieve the most productive workspace with Visiontek VHDCI Graphics!

A great option for business users who engage in monitor, multi-view 2D/3D workstation acceleration. Cards are ideal for multi monitor productivity in financial and corporate marketplaces. Drive up to 4 DVI monitors simultaneously in multiple desktop modes. With platform-independent intelligent power management, the AMD Radeon™ HD 5570 Series graphics cards deliver the power needed to blaze through even the most intense applications while intuitively conserving energy at idle or when demand is low. Expand your visual workspace with multi- monitor support for advanced multi- tasking to help you get more done in less time. AMD also offers monthly ATI Catalyst™ driver updates and industry leading customer support for your ATI Radeon™ graphics products (some conditions may apply, check for more details).

Small Form Factor design fits in today's Low Profile desktops and workstations (short bracket mounted on card). Card is convertible to standard ATX design with (included) tall bracket for standard chassis as well. Single slot, Dual Monitor support is now available for your SFF PC. Run up to 4 monitors simultaneously using ATI eyefinity mode.The VisionTek Radeon HD5570 4-port VHDCI graphics card combines a radically new and efficient ultra-threaded core architecture with ATI's revolutionary AvivoTM video and display technology. Full support for Microsoft DX11, DX 10.1 and DX9. The VisionTek Radeon HD5570 4-port VHDCI graphics card delivers exceptional visual performance for all types of PC entertainment and productivity. Ideal for moderate gaming, multimedia, office productivity, and workstation applications.

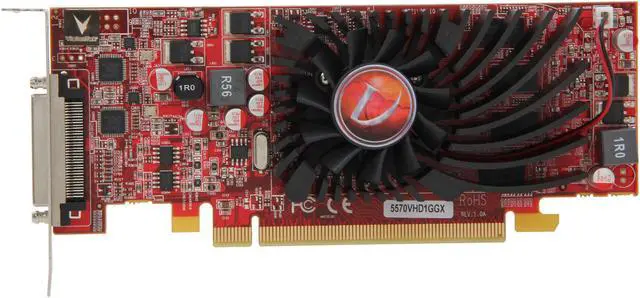

AMD Radeon HD 5570 Top View

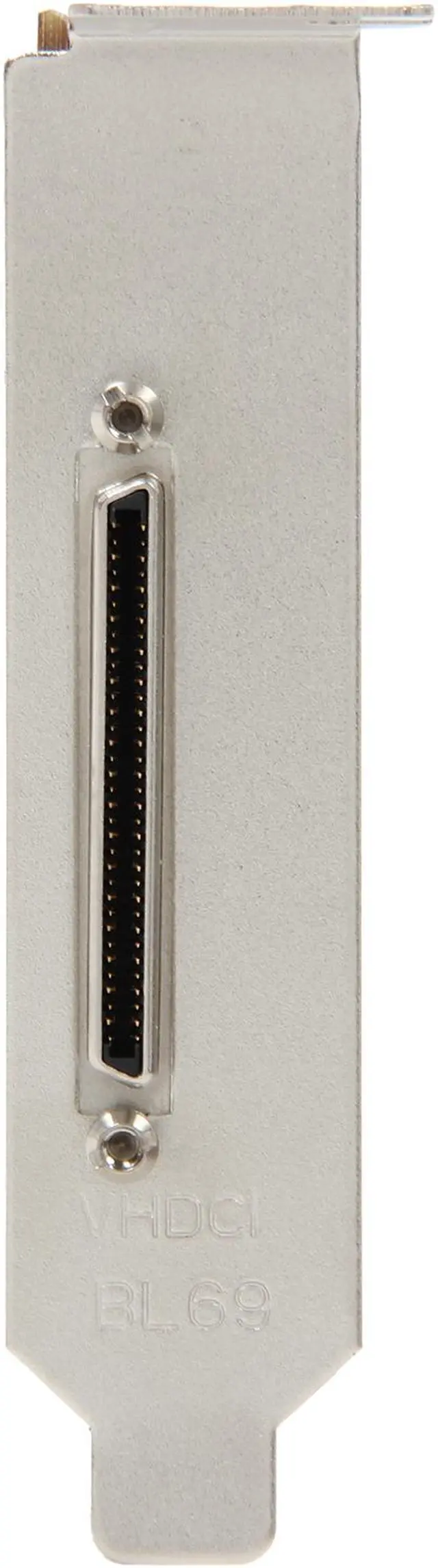

DVI-D View High Definition 3D Performance & Image Quality for Your PC!
Full DX11, DX 10 and DX9 capability
Short bracket (SFF) and Tall bracket (ATX) capable
4-port DVI functionality

ATI Eyefinity**
Compliant with next-generation DirectX® 11, ATI Eyefinity Technology with DisplayPort connectivity, enables a single card to support up to three independent display outputs simultaneously.

Avivo™ Video and Display Technology
Avivo™ technology connects to high-resolution displays and home entertainment devices and produces vibrant colors, ultra sharp images, and the smoothest video playback ever offered by ATI.

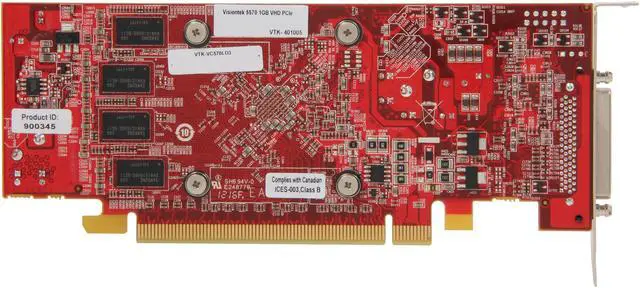

AMD Radeon HD 5570 Side View

Quick Specs
  • AMD RADEON 5570 GPU @ 650MHz 900345
  • High speed DDR3 Memory
  • 1GB on board memory
  • x16 PCI Express

Detailed Specifications
  • VHDCI connector (support 4 DVI digital monitors simultaneously)
  • Support single DVI-D, Dual DVI-D, triple DVI-D, Quad DVI-D
  • HDMI video and audio supported*
  • Single slot solution
  • Small Form Factor design - 2.4" x 6.7"
  • Convertible to tall bracket ATX form factor

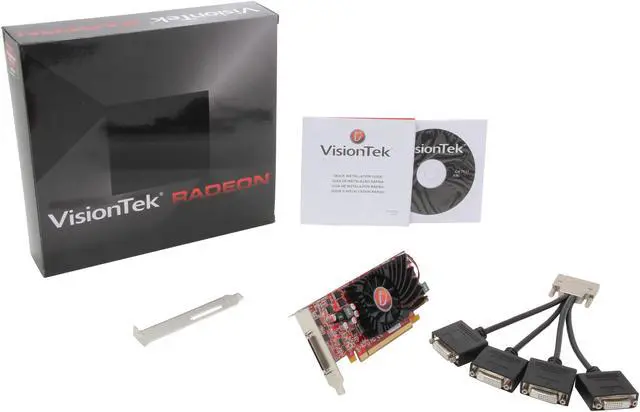

  • (1) Tall bracket for ATX conversion (optional)
  • (1) 4-port VHDCI cable
  • (1) Driver CD
  • (1) Quick Install Guide

System Requirements
  • Intel® Pentium® 4/III, Celeron™, AMD™Duron™/Athlon™/Athlon™ XP, or compatible with x16 PCI Express slot
  • 256MB of system memory (1GB+ recommended for Windows Vista)
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Correct Chipset drivers
  • 250 watt or greater power supply
  • Single x16 PCI Express expansion slot
Supported Operating Systems**
Windows 7, Windows Vista

Supported Configurations

This Card only outputs DVI-D (does not supply VGA signal)

Full height mode

DVI x1 (single link)
DVI x2 (single link)
DVI x3 (single link)
DVI x4 (single link)
HDMI x1 (via DVI to HDMI adapter)*
SFF mode

DVI x1 (single link)
DVI x2 (single link)
DVI x3 (single link)
DVI x4 (single link)
HDMI x1 (via DVI to HDMI adapter)*

Supported Resolution
640 x 480 (digital)
800 x 600 (digital)
1024 x 768 (digital)
1152 x 864 (digital)
1280 x 1024 (digital)
1600 x 1200 (digital)
1920 x 1080* 16:9 (digital)
1920 x 1200 (digital)
7680 x 1080 (2x2) Eyefinity mode
1920 x 4320 (1x4) Eyefinity mode
5760 x 1080 (1x3) Eyefinity mode
1920 x 3240 (3x1) Eyefininity mode

* 3 and 4 monitored config's require Windows 7 and Vista. Windows XP is limited to 2 monitors!
** Windows XP limited to 2 Monitors.
*** Card support digital DVI output only. VGA monitors are not supported.

Learn more about the VisionTek 900345

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the VisionTek 900345

Do you own this product? Write a Review

ICON Loading...

Filter Results


5 out of 5 eggsIt is what I thought it would be

Pros: It is exactly what I thought it would be.
It works great right out of the box, and supports 4 monitors with 1 PCI slot. No screen tearing for non-gaming applications and works great on windows, and Ubuntu with no config time setup from me.
My 4 monitors are each 24'' 1920x1080. The card handles all the pixels just fine.
It can even handle basic settings on some games!! (which is more than I expected from a low profile 4 monitor card)

Cons: Terrible for games on Ultra Settings but if you are buying this card you should not expect that. Go buy a gaming card for that, this card is for doing work which can be faster with more screens.

Other Thoughts: Buy this card if you want 4 monitors to instantly plug into your computer, and start working using browsers/text editors, low quality games. I love it an I am considering a second one so I can get 8 monitors going, and further increase my productivity.

Do not buy this card if you have some fantasy about playing some next gen game on the highest settings with many screens. Go buy a full size ATX tower and get 4 full size high quality cooled cards to do that for you, and allocate one card per screen.

1 out of 1 people found this review helpful. Did you? Yes No

  • Tony V.
  • 2/5/2015 2:13:44 PM
  • Ownership: more than 1 year

2 out of 5 eggsLimited Lifetime Warranty - NOT REALLY

Pros: Decent card. For business graphics on up to 4 monitors with Windows 7 or 8 it will do the job

Cons: There is no real warranty support if your card fails 1 year and 1 day after you bought it and you didn't register the card in the first 30 days. VisionTek will not honor the warranty. I have been in the IT industry for 16 years and have had to do warranty replacements on a lot of equipment and have never heard of a company not honoring a warranty because the customer didn't register the equipment. This is a total con and allows them to advertise a limited lifetime warranty without really having to honor it because I am sure that most people don't register their cards. This is a great cost savings for VistionTek, but bad news for the customer.

1 out of 1 people found this review helpful. Did you? Yes No

  • Bernard F.
  • 6/5/2014 1:28:41 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsburntf

Pros: easy to install works without a flaw

Cons: none

1 out of 1 people found this review helpful. Did you? Yes No

1 out of 5 eggs

Pros: Great when computer is able to boot.

Cons: I have a brand new Win8 Asus CM6340 i7 Desktop with a HD7670 card, 128 gig SSD + 2TB Hard drive, 350watts power supply and it worked great, until I install this card with updated latest drivers. From then on, I have to hard-restart 2 to 3 time before it would finally boot (even with all USB unplugged), I also lost access to the Bios (doesn't show at all).
I suspect this is a power hungry card and my 350 watts is not enough, although it worked great with the Asus HD7670 graphic card... to which I reverted to.

Unfortunatly: This is a waste of money in my case.

Other Thoughts: It was so cool to have 4 monitors from a single card, but no access to the bios is unacceptable to me.
This one will go on a shelf, waiting for the next desktop with hefty power supply.

1 out of 7 people found this review helpful. Did you? Yes No

  • Tyler M.
  • 3/13/2013 12:37:42 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsAwesome card!

Pros: Great cards! I bought two of these and both worked perfectly after installing drivers on CD! Setup and instillation was a breeze! They both played really nicely with my AMD Firepro 2270 card in my 10 monitor setup! 10 monitors running 10 separate web pages all at the same time! Simply Awesome!

Cons: NONE!

1 out of 1 people found this review helpful. Did you? Yes No

  • JOE G.
  • 6/19/2012 10:11:02 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsNO WARRANTY

Pros: Great card for supporting 4 monitors on a single card.

Cons: This is the third one, the fans keep going out and they overheat rather quickly. I have sent in two request for warranty and no response. This is not a newegg issue it is the manufacturer that is responsible for the quality of the product. This will be my last card from this company!!

2 out of 4 people found this review helpful. Did you? Yes No

  • Roger P.
  • 12/20/2011 6:03:20 PM
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsNot quite what I expected.......

Pros: I thought the 4 ports would help....Small card. No external power hookups needed.

Cons: Does NOT support 4 monitors in Windows XP. Only in Windows 7. This is not really Visiontek's fault. It is AMD's new "better" way of doing things. Which is why I'm going back to Nvidia.

1 out of 20 people found this review helpful. Did you? Yes No

  • Gary M.
  • 7/21/2011 3:56:09 PM
  • Ownership: less than 1 day

5 out of 5 eggsa great card for 4 monitors!

Pros: low profile, fits in small form-factor D*ll desktop. Low power draw, pretty cool, very quiet, and impressive desktop (non-gaming) graphics on W7 x64. Running 4 1080p displays with no problem *and* no eyefinity active or other adapters needed! Good with HD video too.

Cons: pricey, but one of a kind. Disappointed it took so long to find out about this card.

Other Thoughts: if you need 4 monitors in a low-profile form factor, I don't know of any other choices.

13 out of 13 people found this review helpful. Did you? Yes No
