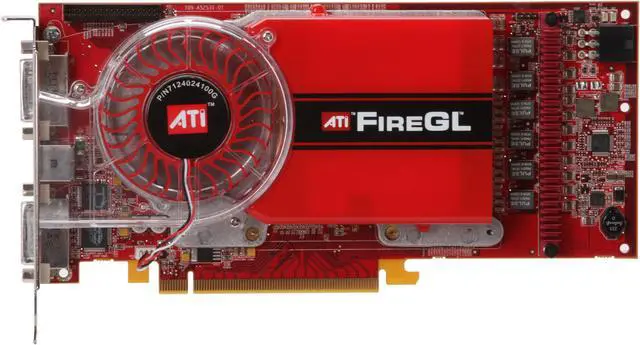

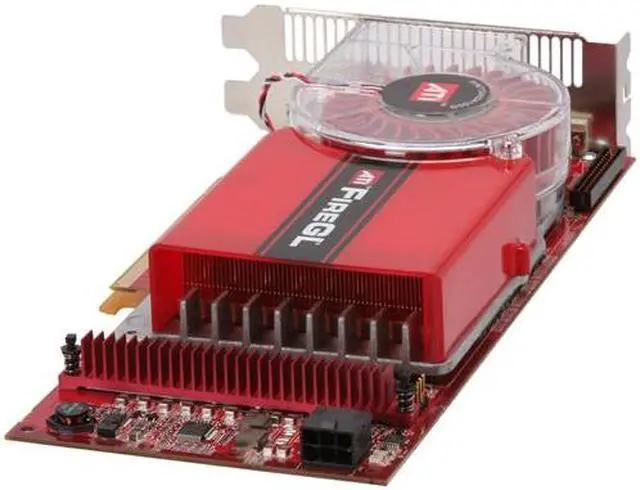

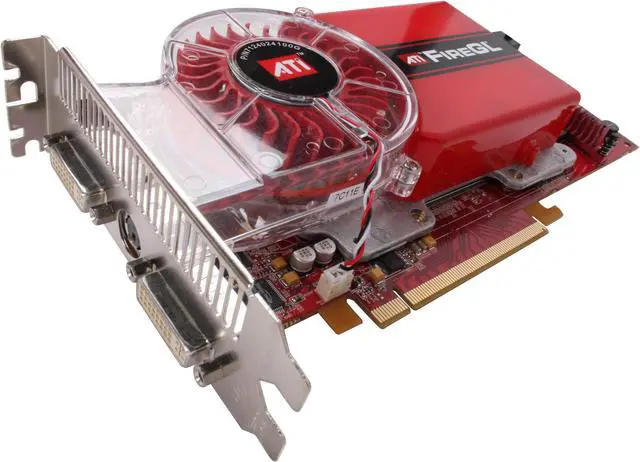

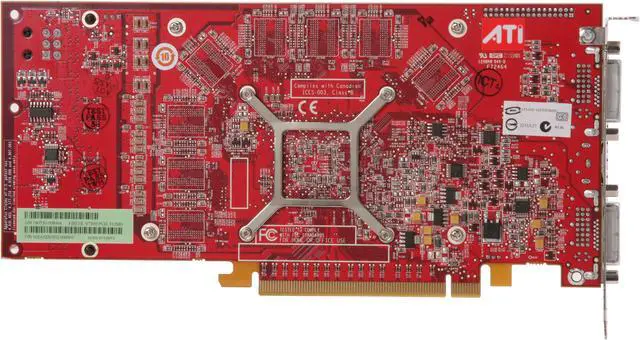

ATI 100-505144 FireGL V7300 512MB 512-bit GDDR3 PCI Express x16 HDCP Ready Workstation Video Card

  • FireGL V7300
  • 512MB GDDR3
  • PCI Express x16
ICON Loading...

Learn more about the ATI 100-505144

General

Brand
ATI
Model
100-505144

Interface

Interface
PCI Express x16

Chipset

Chipset Manufacturer
ATI
GPU
FireGL V7300
PixelPipelines
16

Memory

Memory Size
512MB
Memory Interface
512-bit
Memory Type
GDDR3

3D API

DirectX
DirectX 9
OpenGL
OpenGL 2.0

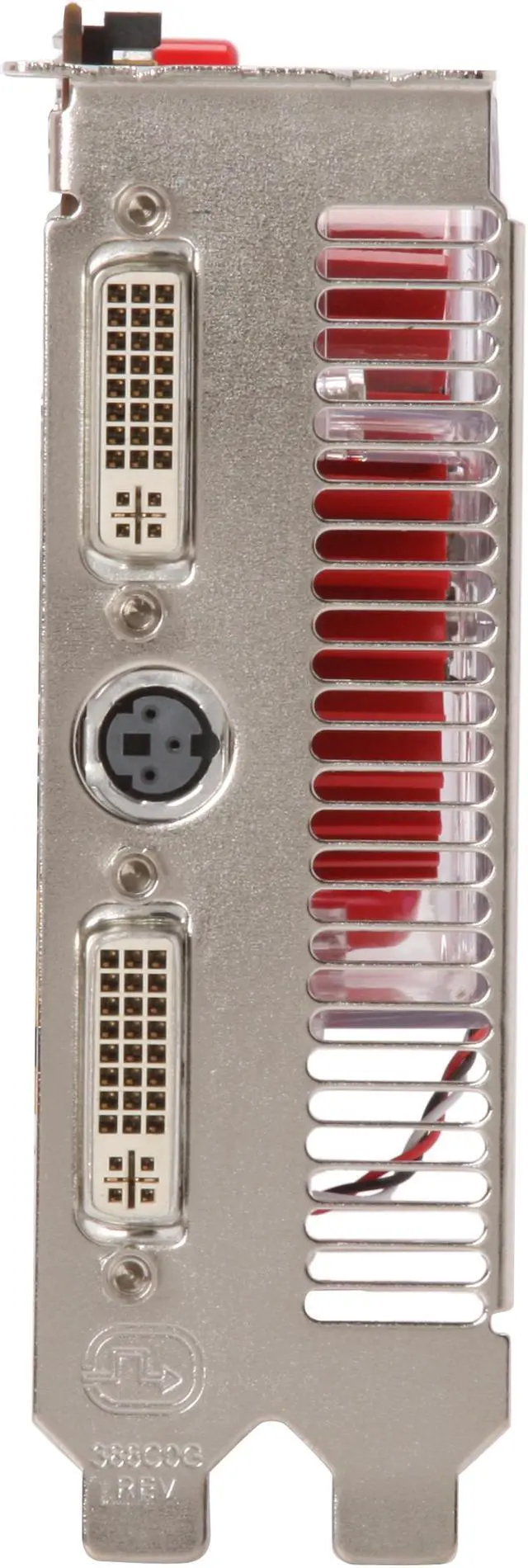

Ports

DVI
2
TV-Out
HDTV via adapter
Other Ports
Stereoscopic 3D output connector with quad buffer

Spec

Analog Resolution
3840 x 2400 Dual Link output
Cooler
With Fan
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Operating Systems Supported
Windows Vista (64-bit and 32-bit), Windows XP (64-bit and 32-bit) and Windows 2000
System Requirements
PCI Express based workstation with available x16 lane graphics slot
Connection to the system power supply (adapter included)
450-Watt power supply or greater (assumes fully loaded system)
512MB of system memory
Installation software requires CD-ROM drive

Features

Features
Powered by ATI's next generation FireGL graphics processor unit with Avivo Technology
Scalable ultra-threaded architecture with 8 Parallel Geometry Engines and 16 Pixel Shader Processors
Full Shader Model 3.0 support for vertex and pixel shaders
High Dynamic Range (HDR) rendering with 8-bit, 10-bit & 16-bit per RGB color component support
High fidelity display engine capable of producing over one billion colors
Two Dual Link outputs each capable of ultra-high resolutions up to 3840 x 2400
Optimized and certified for CAD and DCC applications
Direct access to ATI's dedicated workstation technical support team

Packaging

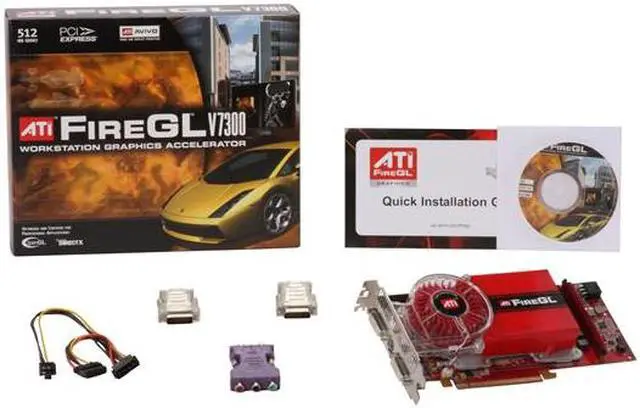

Package Contents
100-505144
Driver Disk
Power Cable
2 x DVI to VGA/D-sub Adapter
HDTV Adapter

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the ATI 100-505144

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Deborah L.
  • 9/25/2006 10:37:19 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month

5 out of 5 eggsGreat Card

Pros: Great card i run two of them at the same time havent had any problems with them yet great excellent :)

Vengeance

Cons: None

Other Thoughts: Great
CArd AAAAAAA++++++++++++++

5 out of 35 people found this review helpful. Did you? Yes No

  • Justin M.
  • 5/24/2006 8:58:18 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggsv7300

Pros: 512 mb of ram, Higher Clocks than Quadro fx4500, 3,840 x 2,400 res. Great Card, 512-bit ring bus memory controller, Shader model 3.0 support

Cons: 16 pixel pipes, 8 vertx pipes, high cost, older r520 chip.

Other Thoughts: This is a great workstation graphics card but it is behind a little using the R520 based gpu. It has less pipes than the quadro fx4500, but the higher clocks helpm make up for that. 600mhz/1.3ghz compared to 4500's 470/1050. It is a decent value considering the prices and performance of some of the other cards including this card in the v7350 with 1 gig of memory.

Ati is just a few months behind on workstation graphics cards and still focusing on their gaming cards, as well they should.

23 out of 25 people found this review helpful. Did you? Yes No
