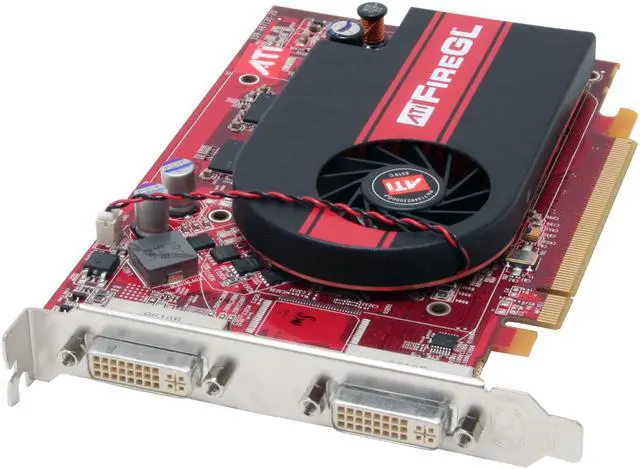

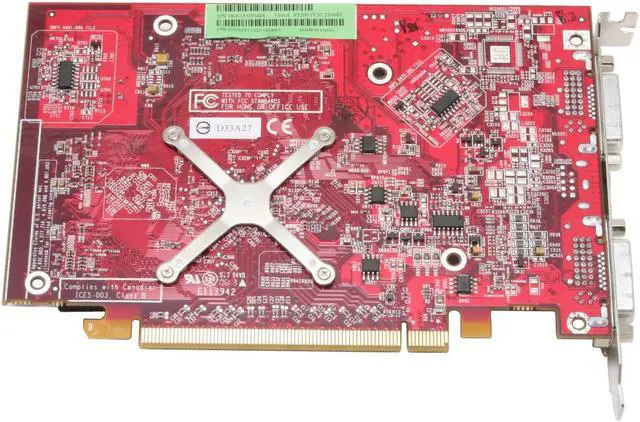

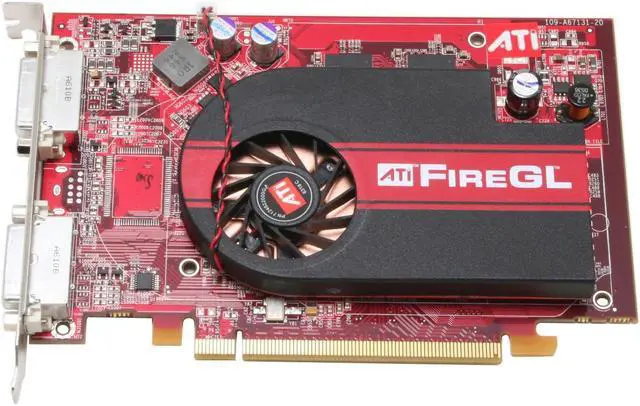

AMD FireGL V5200 100-505157 256MB 128-bit GDDR3 PCI Express x16 Workstation Video Card - OEM

  • FireGL V5200
  • 256MB GDDR3
  • PCI Express x16
ICON Loading...

Learn more about the AMD 100-505157

General

Brand
AMD
Model
100-505157

Interface

Interface
PCI Express x16

Chipset

Chipset Manufacturer
ATI
GPU
FireGL V5200
PixelPipelines
12

Memory

Memory Size
256MB
Memory Interface
128-bit
Memory Type
GDDR3

3D API

DirectX
DirectX 9
OpenGL
OpenGL 2.0

Ports

DVI
2

Spec

RAMDAC
400MHz
Analog Resolution
3840 x 2400
Cooler
With Fan
Dual-Link DVI Supported
Yes
Operating Systems Supported
Windows XP, Windows XP64 and Windows 2000
Linux 32 and Linux 64 4
Windows Vista Ready
System Requirements
PCI Express based workstation with available x16 lane graphics slot
350-Watt power supply or greater (assumes fully loaded system)
512MB of system memory
Installation software requires CD-ROM drive

Features

Features
Powered by ATI's next generation FireGL graphics processor unit with Avivo Technology
Scalable ultra-threaded architecture with 5 Parallel Geometry Engines and 12 Pixel Shader Processors
Full Shader Model 3.0 support for vertex and pixel shaders
256MB GDDR3 graphics memory with 256-bit ring bus memory controller
High Dynamic Range (HDR) rendering with 8-bit, 10-bit & 16-bit per RGB color component support
High fidelity display engine capable of producing over one billion colors
Two Dual Link outputs each capable of ultra-high resolutions up to 3840 x 2400
Optimized and certified for CAD and DCC applications
Direct access to ATI's dedicated workstation technical support team

Packaging

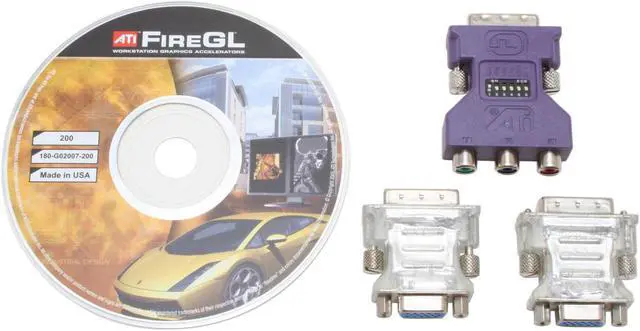

Package Contents
100-505157

Driver Disk
DVI to HDTV Adapter
DVI to VGA/D-sub Adapter

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the AMD 100-505157

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Patrick G.
  • 4/20/2007 11:49:10 PM
  • Tech Level: High
  • Ownership: less than 1 day

5 out of 5 eggsoops

Pros: ..see other thoughts

Cons: ..see other thoughts

Other Thoughts: Sorry. I don't want to cause confusion for readers interested in this product. I meant the review before mine, not above. My mistake.

1 out of 2 people found this review helpful. Did you? Yes No

  • Patrick G.
  • 4/20/2007 11:56:36 AM
  • Tech Level: High
  • Ownership: less than 1 day

5 out of 5 eggsGreat for that intense 3d/2d stuff

Pros: Lots of bandwidth for intense vert calculations. Isn't for gaming since gaming requires high clock speeds and fast real-time shader calculations. This gpu is enhanced for vert calculations, and I recommend to you if you do animation/3D rendering of stills. Game designers can benefit too.

Cons: None really. If you game then this is a waste of money. Also this is the only Ati gpu line that is actually supported in linux (not really a con if you're buying this). Ati drivers (fglrx) are all firegl drivers made compatible with radeon cards and don't perform as well with them.

Other Thoughts: To the review above... of course your render time isn't much faster compare to your other card. Rendering is DONE ON THE CPU, NOT GPU. Infact you SHOULDNT have noticed a difference at all!! Also don't pay attention to the benchmarks of the firegl vs quadros. These cards are aimed at bandwidth and not speed. Benches aren't that important when comparing workstation CAD/DCC cards especially if they show work done/time rather than real bandwidth specs/numbers.

10 out of 11 people found this review helpful. Did you? Yes No

  • Johnathan E.
  • 12/11/2006 1:51:05 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsNot quick enough for the price

Pros: None for our application.

Cons: Far too expensive to be worth it for our software. There is marginal acceleration or even a slight decceleration moving to this from a 7900 GS.

Other Thoughts: The OpenGL rendering time/render quality was just about the same as the 7900 GS, and the software maker (Matrix, GemVision) designed their software to work with nVidia cards.

3 out of 13 people found this review helpful. Did you? Yes No
