Item#: N82E16814202012

SAPPHIRE Radeon HD 7770 DirectX 11 100358FLEX 1GB 128-Bit GDDR5 PCI Express 3.0 x16 CrossFireX Support Video Card

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 1GB 128-Bit GDDR5
  • Core Clock 1000 MHz

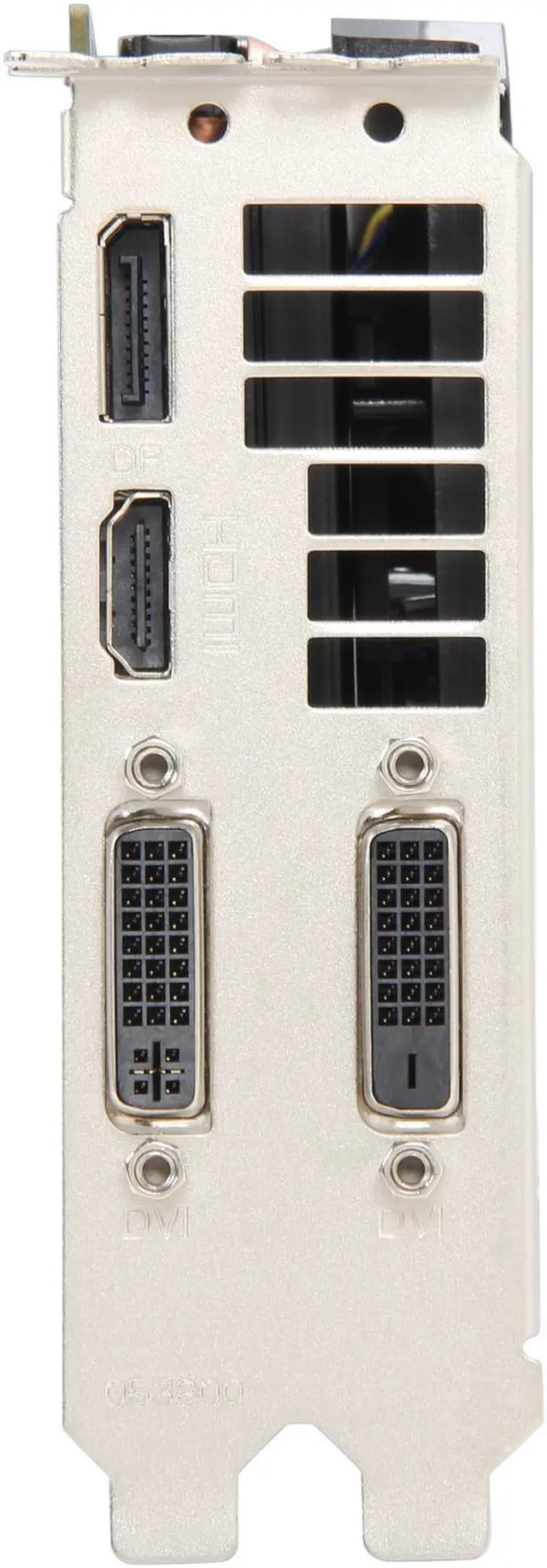

  • 2 x DVI (1 Single Link, 1 Dual Link) 1 x HDMI 1 x DisplayPort 1.2
  • 640 Stream Processors
  • PCI Express 3.0 x16

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews


SAPPHIRE HD 7770 FleX

The ultimate in FleXibility

The SAPPHIRE HD 7770 FleX brings you all the features and performance of AMD's GCN (Graphics Core Next) technology along with SAPPHIRE's FleX technology. This enables you to connect low-cost DVI monitors for the first three screens in landscape or portrait mode providing a cost-effective solution for multiscreen gaming or increased productivity in content creation and editing applications. Using the DisplayPort output, the SAPPHIRE HD 7770 FleX supports four screens in Eyefinity, providing additional display options.

Innovation for over 11 years!

SAPPHIRE Technology is a manufacturer and global supplier of graphics cards, small form factor PCs, mainboards and more since 2001 and has consistently been the worldwide market leader with its graphics products.



SAPPHIRE HD 7770 FleX

Key features:



  • SAPPHIRE FleX is the most economical solution for Eyefinity as it supports many combinations of multiple display outputs simultaneously. Everything you need is in the box!
  • AMD HD3D Technology: Enjoy the most immersive experience possible with full support for High Definition Stereoscopic 3D, a technique that presents 2D images (movies, games, photos) in a format that creates the illusion of three-dimensional depth when using compatible 3D displays / glasses / software.
  • AMD HD Media Accelerator: Optimize and dramatically improve video playback on your computer by taking advantage of hardware video acceleration from your AMD Radeon GPU. With full 3D stereoscopic decode you can enjoy it all in 3D. AMD HD Media Accelerator speeds up the decode of one 1080p and one 1080i HD video streams simultaneously by hardware, and the new hardware encodes/transcoder processes your media content faster than ever!
  • AMD Eyefinity 2.0 featuring support for stereo 3D-multi-display stereoscopic 3D support via DisplayPort 16K X 16K maximum display group resolution-output up to 268 megapixels per GPU. Perfect for powering HD displays.

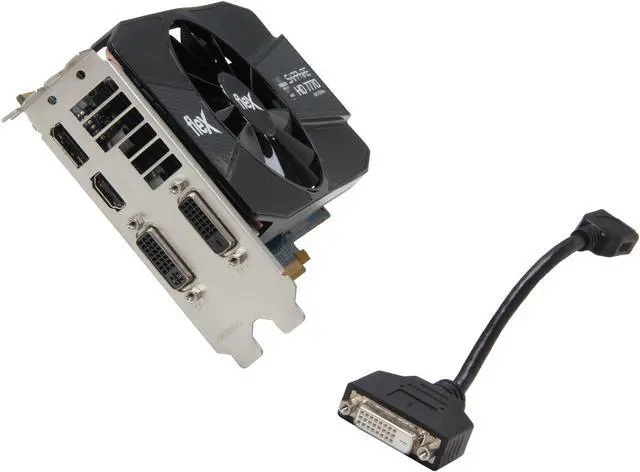

  • Accessories: DVI to VGA Adapter
  • Dimensions: 220 x 95 x 35mm

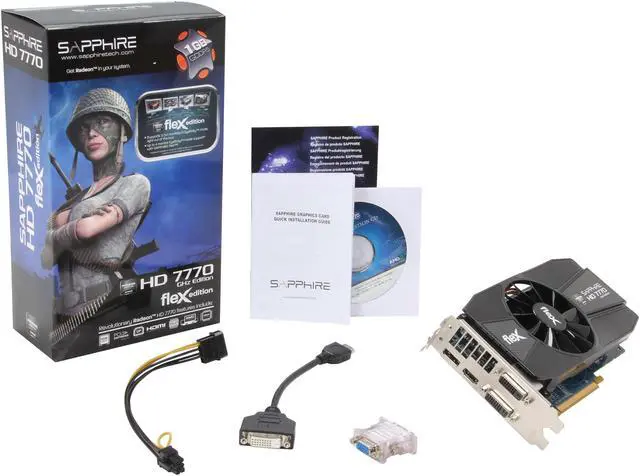

What's in the Box

SAPPHIRE HD 7770 FleX


Learn more about the Sapphire Tech 100358FLEX

Model

|
Brand
SAPPHIRE
Series
HD 7000
Model
100358FLEX

Interface

|
Interface
PCI Express 3.0 x16

Chipset

|
Chipset Manufacturer
AMD
GPU
Radeon HD 7770
Core Clock
1000 MHz
Stream Processors
640 Stream Processors

Memory

|
Effective Memory Clock
4500MHz
Memory Size
1GB
Memory Interface
128-Bit
Memory Type
GDDR5

3D API

|
DirectX
DirectX 11
OpenGL
OpenGL 4.2

Ports

|
HDMI
1 x HDMI
DisplayPort
1 x DisplayPort 1.2
DVI
2 x DVI (1 Single Link, 1 Dual Link)

Details

|
Tuner
None
Max Resolution
2560 x 1600 (DL-DVI)
Eyefinity Support
AMD Eyefinity 2.0
CrossFireX Support
Yes
Cooler
With Fan
System Requirements
450 Watt Power Supply is required

1X75 Watt 6-pin PCI Express power connector is required
Power Connector
6-Pin
Dual-Link DVI Supported
Yes

Features

|
Features
The SAPPHIRE HD 7770 FleX brings this feature to the performance segment with its core clock speeds of 1000MHz (4.5Gb/sec effective) for the 1GB of on board high speed DDR5 memory.

The FleX feature enables users to connect low-cost DVI monitors for the first three screens in landscape or portrait mode providing a cost-effective solution for multiscreen gaming or increased productivity in content creation and editing applications.

Using the DisplayPort output, the SAPPHIRE HD 7770 FleX supports four screens in Eyefinity, providing additional display options.

Form Factor & Dimensions

|
Form Factor
Plug-in Card
Card Dimensions (L x H)
8.66" x 3.74"
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
