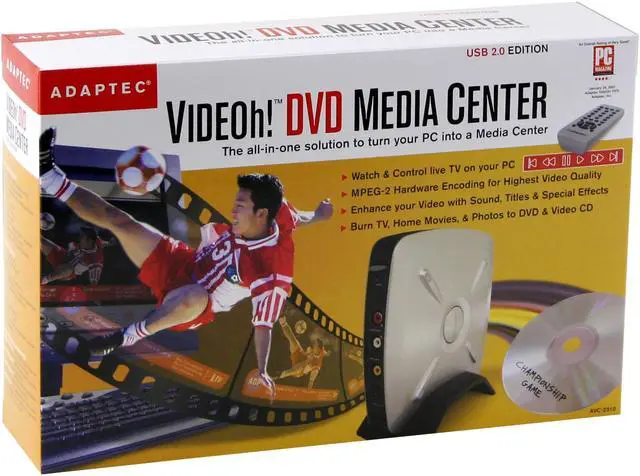

Adaptec VideOh! DVD Media Center USB 2.0 Edition VideOh!(tm) DVD USB USB 2.0 Interface

  • NTSC
  • USB 2.0 Interface
  • Composite (RCA), S-Video (4-pin DIN), Stereo Audio (left/right RCA), 75 Ohm Coaxial
  • Remote Included
ICON Loading...

Learn more about the Adaptec VideOh!(tm) DVD USB

Model

Brand
Adaptec
Model
VideOh!(tm) DVD USB

General

Type
External TV Tuner Box
TV Tuner
Analog Tuner
TV Standards
NTSC
FM Tuner
No
Remote Control
Remote Included
Interface
USB 2.0

Features

Features
End-to-End solution to turn your PC into a Media Center
Fully integrated Personal Video Recording (PVR) software to watch, record, and control TV on your PC
Convert home movies and TV programs to Hollywood style DVDs with the included industry leading editing, authoring and burning software
Utilized MPEG-2 Hardware Encoding for Highest Video Quality
Easy to install external device with High Speed USB 2.0 interface for high quality video transfer
Archive home movies and videotapes then burn to DVD-R/RW or DVD+R/RW or CD-RW disks
Edit video adding special effects, transitions, overlay effects, photos, music, titles and more
Record video at full screen MPEG-2 (720 x 480 @ 30fps) D-1 broadcast resolution or other resolutions
Use your existing CD burner to create MPEG-1 Video CDs

Specifications

Video Format
MPEG-2(DVD)/MPEG-1(VCD)
Ports In
Composite (RCA), S-Video (4-pin DIN), Stereo Audio (left/right RCA), 75 Ohm Coaxial
Specifications
Video Capture Format: MPEG-1, MPEG-2
Video Input: Composite (RCA), S-Video (4-pin DIN)
Audio Input: Stereo Audio (left/right RCA)
Bit Rate: VCD and adjustable within the DVD specifications
Video Resolution: NTSC: up to 720x480 PAL: Up to 720 x 576
TV Input: 75 Ohm Coaxial
PC Interface: USB 2.0 or USB 1.1

System Requirements

Processor
600-MHz processor or faster
Graphics Card
24/32-bit color and higher resolution recommended
Memory
128 MB RAM
Available Slot
Available USB 2.0 or 1.1 port
Operating Systems Supported
Windows 2000/XP
Others
250 MB free disk space for applications
Sound card
CD-ROM drive
CD-Recorder or DVD-Recorder

Packaging

Package Contents
Adaptec AVC-2310 MPEG-1, MPEG-2 hardware encoding device with 125 channel cable ready TV tuner
Remote control
6-foot RCA to RCA audio/video cable
6-foot USB cable
Power adapter
Installation guide
CD

Consumer Alert

Consumer Alert
This television receiver has only an analog broadcast tuner and will require a converter box after February 17, 2009, to receive over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products. For more information, call the Federal Communications Commission at 1-888-225-5322 (TTY: 1-888-835-5322) or visit the Commission's digital television website at: www.dtv.gov

Quick Info


Customer Reviews of the Adaptec VideOh!(tm) DVD USB

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 11/2/2005 2:47:35 PM
  • Tech Level:
  • Ownership:

5 out of 5 eggs

Comments: I bought mine primarily for the TV tuner function. I've owned two PCI ATI tv tuners, including the HDTV wonder and I must say that the picture quality of this Adaptec (analog TV) is superb. Anyway, decided to go external because of the incredible heat that is generated by a PCI TV tuner (not good for keeping case temps down). Installation was almost too easy. Everything works as advertised, including remote control.

Did you find this review helpful? Yes No

  • Anonymous
  • 8/18/2005 5:58:08 PM
  • Tech Level:
  • Ownership:

1 out of 5 eggsMedia Center Edition NOT

Comments: The inclusion of 'Media Center' in the product name should not be mistaken as MCE compatability. This box did not reliably capture video on any of six machines below 2 GHz I've tried. I'd put up with poor video quality and frequent code lockups for over a year before thinking that at least the box could be used as an analog tuner for MCE to enable an HDTV card. Wrong.

Did you find this review helpful? Yes No

  • Mr. B.
  • 1/3/2005 10:09:41 AM
  • Tech Level:
  • Ownership:

3 out of 5 eggsYOU'VE GOTTA BE SAVVY TO GET IT TO WORK!!

Comments: I was at a fork in the road between this USB Media Center unit and a similar USB setup by Pinnacle. I did some reading about the product before I purchased and decided on this one for I was concerned about the capture quality. I also was fully aware of some of the bumps in the road experienced with this product, well the software. The InterVideo WinDVR program installed fine and works pretty well. The capture quality is good and variable settings is sufficient for my needs. I like the time shift feature. The Sonic MyDVD program is another issue. When I installed it and went through a routine reboot, I noticed that the two optical drives were not working or acccessible at all. BIOS was registering the drives fine but the Device Manager placed exclaimations next to both drives and also my Iomega ZIP 250MB drive, claiming that there was a definite problem. What one needs to do is follow the instructions to edit the registry files which were defined as "lower filters" for me. That got the optical drives back. I reinstalled the ZIP driver and got that drive back fine. The operation within the MyDVD program is easy to use and never has crashed or locked up on me, same for the WinDVR program. The next problem to arise was the inability to press the burn button (greyed out). One has to go to the Sonic website and download the appropriate Record Engine <font>u</font>pdate. This enabled me to burn my first 1 hour DVD and it was exciting to see it play on a regular player! (took 90 minutes for the burn but that could be my setup). One should note that there's a slight ripple bar that shows up on the bottom of the video upon capture and editing. The finished DVD product however WHEN SHOWN THORUGH A CONVENTIONAL TV will be fine, as the image is cropped in a little bit (completely normal differences between a TV and computer monitor). I should add that I did at one time have a problem with the audio/video sync. I was capturing from a VCR on a tape that had some rough spots on it. This tends to upset things. I happen to have two hard drives on my PC and decided to use the second drive to capture. This does help, and it also helps to have a system that's properly <font>u</font>pdated, free of ad/spy/virusware etc. My system is about 20 months old, an xxxxxxxxxx with 3.06 HT Pentium 4, 200GB Seagate HDD, and 180 Maxtor HDD, 1GB RAM. Also sometimes it depended on how I started the process of recording a VHS tape. What seems to work for me is to get the tape ready to go in the VCR, press the record button WinDVR wait about 3 secs and then press play on the VCR. I managed to capture my 1 hour show with some rough spots in it with absolutely no sync out problems.
I will decide to give this product a 3 since I had to swim through a lot of technical muck to get it to work beautifully. If you're the type that has used utility programs, <font>u</font>pdated drivers, installed new equipement, and played mind bending problem solving games like the whole MYST series then this product should be approachable to you. I'm happy now with it.

Did you find this review helpful? Yes No
