Brand | Pinnacle |
---|---|

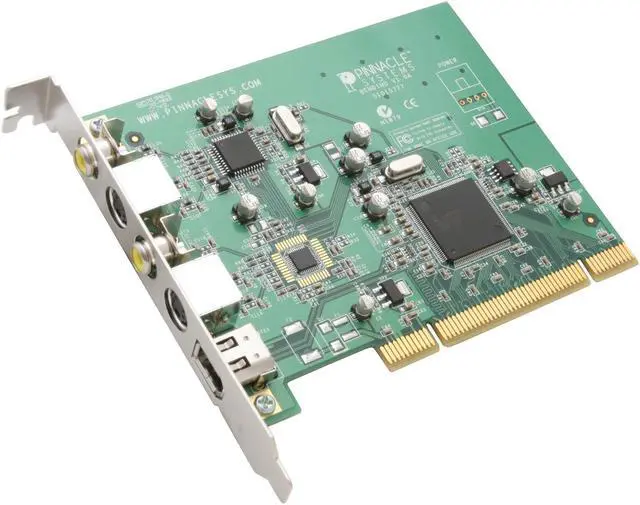

Model | Studio MovieBoard PCI |
Type | Video Capture & Editing |
---|---|
Others | 1 GB of disk space to install software and 3+ GB to install bonus content DVD-ROM drive to install software |

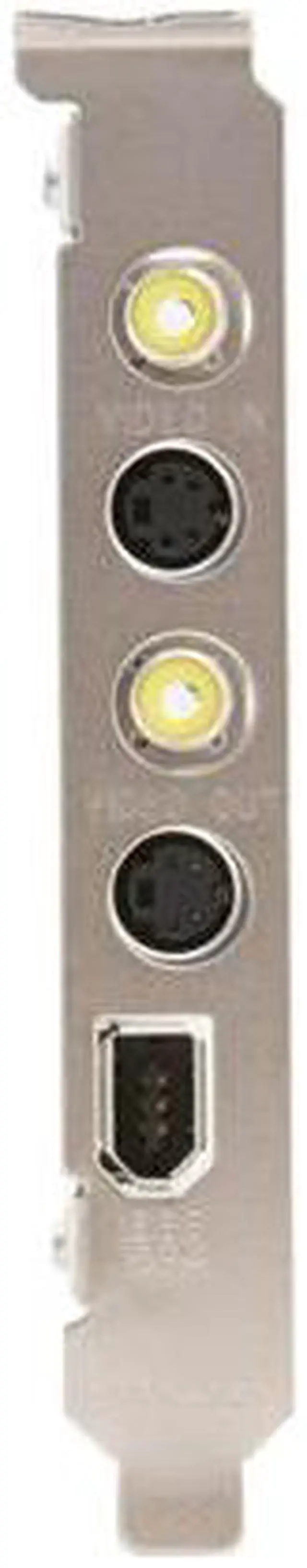

Specifications | Inputs & Outputs Composite video input/output (RCA connector) PAL,SECAM (input only), NTSC S-Video input/output (mini-DIN connector) PAL,SECAM (input only), NTSC IEEE 1394 In/Out connector (6-pin type) Analog Video Capture to Computer Video format: PAL/SECAM (SECAM input only) Frame rate PAL: 25 frames per second/50 fields persecond Frame rate NTSC: 30 frames per second/60 fields persecond Frame size PAL: 720x576 Frame size NTSC: 768x480 Compression: MPEG-2, MPEG-1, DV, MJPEG (Userselectable. Available real-time capture formats depend on CPU speed.) Video Playback from Computer Analog PAL/NTSC output DV (IEEE 1394) output to camcorder 25 Mbit/s. Fullcamera/device control support Import Formats Video: DV, AVI MPEG-1, MPEG-2, DivX, MPEG-4, 3GP(MPEG-4), WMV, Non-encrypted DVD titles Audio: WAV, MP3 Graphic: BMP, JPG, PCT, TGA, TIF, WMF Export Formats Video CD (VCD) or S-VCD with optional CD burner (CD-R or CD-RW) DVD with optional DVD burner (DVD-R, DVD-RW, DVD+R or DVD+RW) DV, AVI, DivX, RealVideo 8, Windows Media 9, MPEG-1, MPEG-2, MPEG-4 files Apple iPod and Sony PSP compatible (MPEG- 4) formats Dolby Digital 2 channel & 5.1 channel audio |
TV Standards | No |
---|---|
Remote Control | No |
Interface | PCI |
---|---|
FM Tuner | No |
Processor | Intel Pentium or AMD Athlon 1.4 GHz or higher (2.4 GHz or higher recommended) |
---|---|
Graphics Card | DirectX 9 or higher compatible graphics card with 64 MB (ATI Radeon or NVIDIA GeForce 3 or higher with 128 MB recommended) DirectX 9 or higher compatible sound card (Creative Audigy or M-Audio recommended) |
Memory | 512 MB RAM (1 GB recommended) |
Available Slot | 1 PCI slot |
Operating Systems Supported | Windows XP (SP2 or higher) |

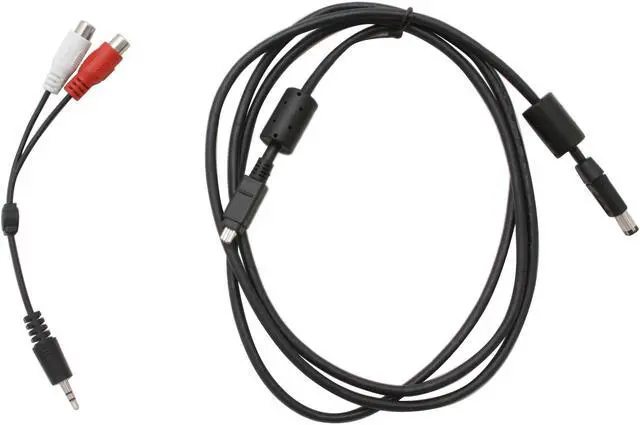

Package Contents | Studio MovieBoard PCI Driver Disk User's Manual Cables |
---|
Date First Available | October 16, 2007 |
---|
