Easy Live Broadcasting
Easy operation without a PC. No need to struggle with streaming software or capturing devices anymore. You'll be fine even if you don't understand some difficult terms such as FMLE, encorder, driver, etc.
Easy Broadcasting High Video Quality
You can easily broadcast high video quality simply by connecting an HDMI cable. You can use any level of camcorder from home use to professional use. Before starting your broadcast, you can check out video quality with a broadcasting sample.
Excellent Stability
With live streaming, "stability" is everything. Stability that can withstand broadcasting 24 hours a day, 365 days a year - this is the strongest ally of important broadcasting. Even if an Internet line is temporarily disconnected, there will be fully automated recovery.
Simple operation by just connecting to a camcorder via an HDMI cable and turning the power on. Enjoy broadcasting beautiful video and audio good enough even for professional use with a high-end camcorder! Compared to a webcam, camcorder video quality is much higher and has other features such as hand-shake compensation, etc.
Have you ever experienced difficulties because trouble occurred with a personal computer or streaming software when important live streaming is in progress? One of LiveShell's selling points is the ability to do stable broadcasting for long periods. Stable broadcasting is possible with AC adapter operation. Visit for our 24/7 Street live camera from Akihabara in Tokyo, Japan.
We have prepared a dedicated control screen called the "Dashboard" for operating the LiveShell. All operations including volume adjustment, video quality change, recording start and stop, etc., can be done from a personal computer or a smartphone. The large screen is easy to understand, and intuitive touch operation is used. Since this is remote operation via the Internet, as long as you have a smartphone, you can go away from the streaming site.
Long term operation is possible using AA batteries that can be obtained anywhere. Three hours* continuous broadcasting is possible using the recommended Duracell DC1500, 2450mA type rechargeable. It is also possible to use an eneloop mobile booster KBC-L2, realizing even longer term streaming. *Wireless network, CIF resolution

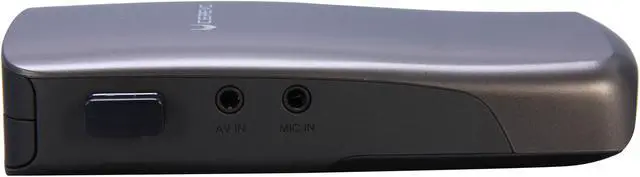

In addition to the video and audio input from an HDMI, both line input (L/R) and microphone input (L/R) have been provided. Broadcasting can be done after doing mixing internally within LiveShell. Analog composite video input has also been provided so that old camcorders can be used as well. It is also possible to simultaneously connect with an HDMI to be able to switch to any video source from the "Dashboard." Inserting still images into videos as well as inserting subtitles can also be done easily.
LiveShell supports not only Ustream but also other streaming services like Niconicolive. Additionally, you can prepare your own server and streaming on it (e.g., Adobe Flash Media Server, Wowza Media Server, etc.). For RTMP setting, look at Online Manual.
*Youtube Live is not supported LiveShell. It is available in LiveShell PRO. Click here for details
*LiveShell and LiveShell PRO does not support new LiveStream service.
Function Details | |

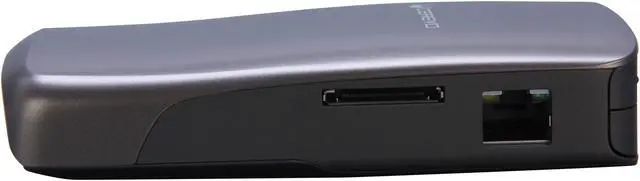

Network Connection Function | 10/100 BASE-T ethernet LAN and 802.11 b, g, n compatible wireless LAN |
Broadcasting Video Resolution | 4 CIF (704 x 528 pixels) Max. approx. 1.5Mbps |
Video Input Terminal | HDMI (480p/576p) *1, composite (NTSC/PAL) |
Audio Input Terminal | HDMI / Stereo microphone in / Line in Volume can be adjusted for each item independently. Broadcasting is done after mixing internally. |
Power Supply | 3 x AA batteries (Sanyo Electric's eneloop or eneloop pro recommended) |
Operating time | More than 3 hours battery life x 2; 24/7 continuous operation with the AC adapter accessory |

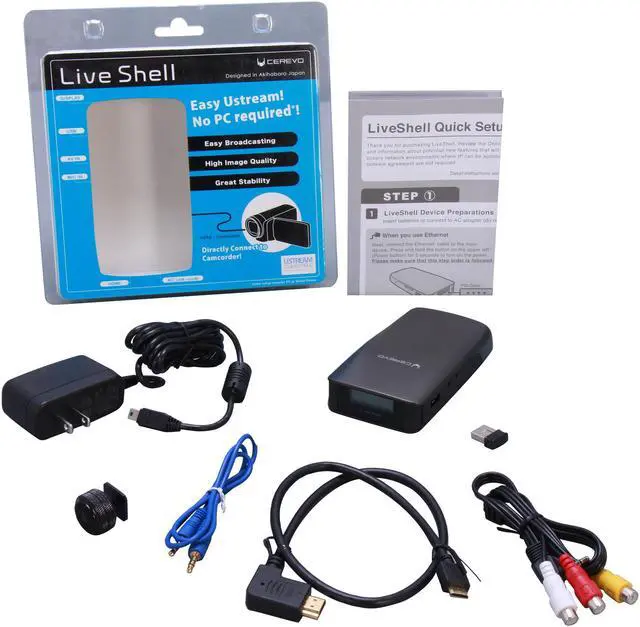

Accessories | AC adapter, mount shoe, AV-IN cable, Wi-Fi adapter, HDMI cable with 60cm right angle (HDMI to HDMI-mini) and set-up cable |
Dimensions (D x W x H) | 4.7 x 2.6 x 1 inches (120 x 68 x 26mm) |
Weight | 3.8oz (108g) |
* 1. Supported VGA, 480p, 576p. Not compatible with HDCP
* 2. When using Sanyo Electric eneloop pro
* 3. LiveShell does not support New LiveStream
