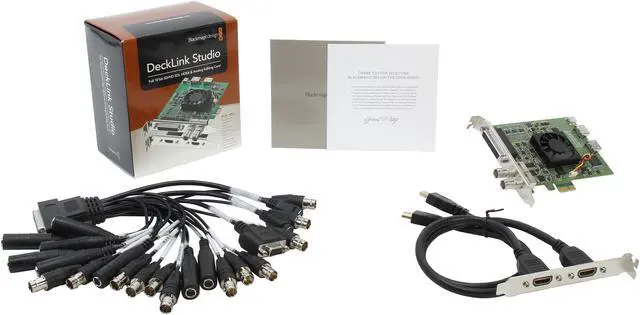

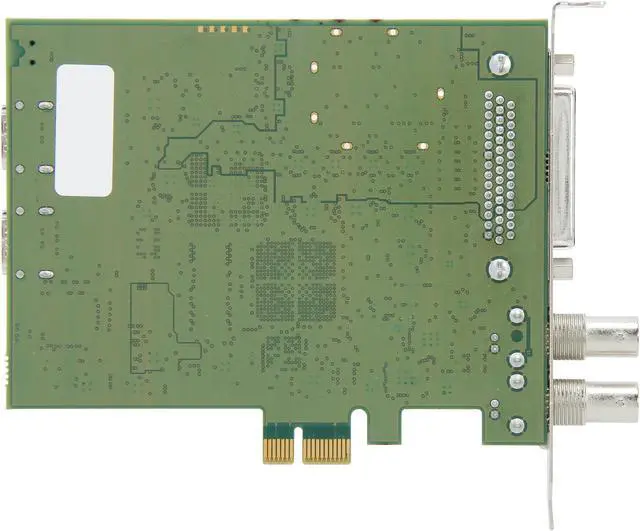

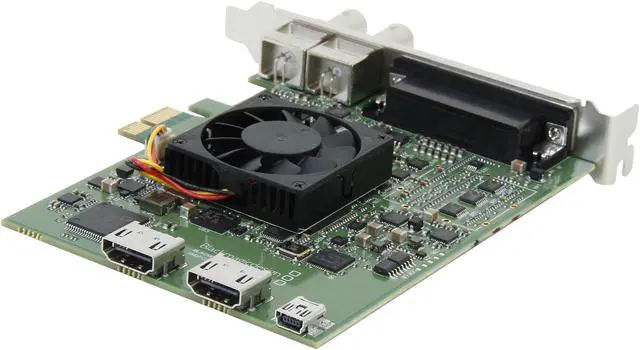

Blackmagic Design DeckLink Studio 2 SD/HD Video Card with SDI, HDMI & Analog Connections BDLKSTUDIO2
- NTSC & PAL
- PCI-Express Interface
- Fully independent connections for SDI, HDMI, analog component, S-video, and composite video
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. BDLKSTUDIO2
| Brand | Blackmagic Design |
|---|---|
| Model | BDLKSTUDIO2 |
| Interface | PCI-Express |
| Format | Supported Video formats: 525i NTSC, 625i PAL, 720HD and 1080HD HD Format Support: 1080PsF23.98/24, 1080i50, 1080i59.94, 720p50 and 720p59.94 SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC |
|---|---|
| Video Sampling | 4:2:2 |
| Audio Sampling | Television rate of 48kHz at 24 bit |
| Color | Color Precision: 4:2:2 10-bit Color Space: 4:2:2 YUV |
| Copy Protection | For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP |
| Video | SDI Video Input: 1 x 10 bit SD/HD switchable SDI Video Output: 1 x 10 bit SD/HD switchable HDMI Video Input: Direct HDMI connection supports HDMI capture from HDMI compatible cameras, set-top boxes, decks and video games HDMI Video Output: Direct HDMI connection supports HDMI digital compatible displays, such as a TV or video projector (includes both audio and video) |
| Audio | SDI Audio Input: 8-channel embedded in SD and HD SDI Audio Output: 8-channel embedded in SD and HD Analog Audio Input: 4 channels of professional balanced analog audio via 1/4" jack connectors Analog Audio Output: 4 channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 and 4 can switch to AES/EBU outputs HDMI Audio Input: 2 channels HDMI Audio Output: 2 channels |
| HDMI | HDMI Configuration: HDMI automatically configures to connected display HDMI Resolution: Pixel-for-pixel HD resolution input to connected device. |
|---|---|
| SDI | SDI Compliance: SMPTE 259M, 292/296M SDI Metadata Support: VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file. HD RP188 |
| Specification | Multiple Rate Support: Standard-definition SDI and high-definition SDI Sync Input: Blackburst in SD and 1080i50, 720p50, 1080i59.94, 720p59.94 HD formats TriSync in all HD formats. Updates: Firmware for cards built into software driver Loaded at system start, or via updater software Colorspace Conversion: Hardware-based real time HD Down Conversion: Built-in hardware down conversion. High-quality down converter always outputs to SD-SDI, composite and S-video outputs when working in HD video formats. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles HD Up Conversion: Real-time up conversion from 720HD to 1080HD during video capture Real-Time Effects: Apple Final Cut Pro internal effects in DV, ProRes and uncompressed on Intel Mac OS X Device Control: Sony compatible RS422 deck control ports Serial ports TxRx direction reversible under software control Settings Control: DeckLink System Preferences (Intel Mac OS X) DeckLink Control Panel (Windows) |
|---|
| Feature | This video card supports fully independent connections for SDI, HDMI, analog component, S-video, and composite video Audio connections include 4 channels of balanced analog audio, 8 channels of SDI audio, and 2 channels of AES/EBU digital with sample-rate converters Support for NTSC & PAL standards is included It features an RS-422 deck control The device offers blackburst and tri-sync reference input This unit is compatible with Windows, Mac, and Linux systems and 1, 4, 8 and 16 PCIe slots |
|---|
| First Listed on Newegg | June 07, 2013 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within - Contact Manufacture for Assistance
- Return for replacement - Contact Manufacture for Assistance
- This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-954-0500
- Support Website
- View other products from Blackmagic Design Pty. Ltd.
