Item#: N82E16816103218

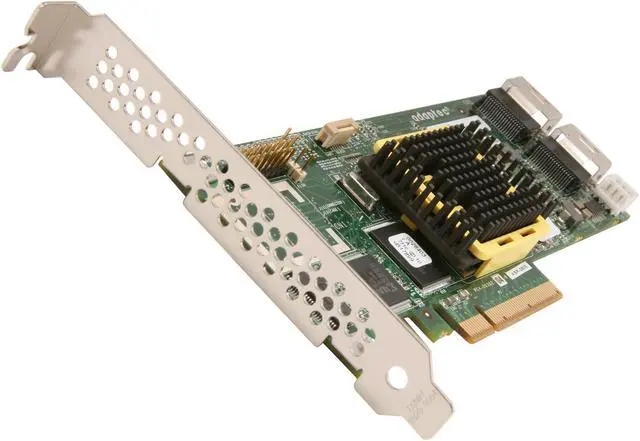

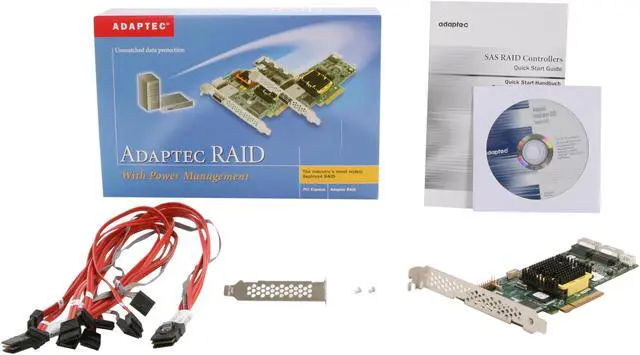

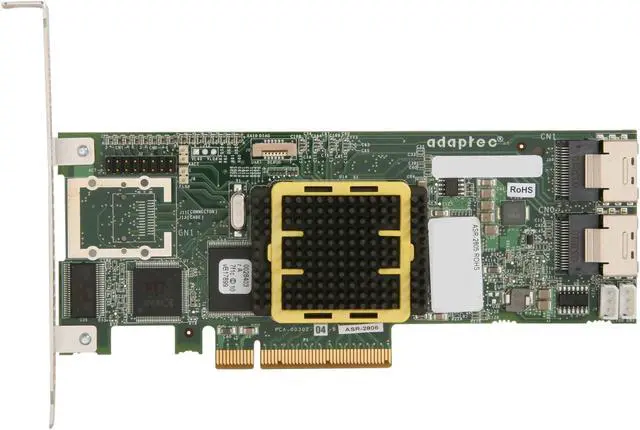

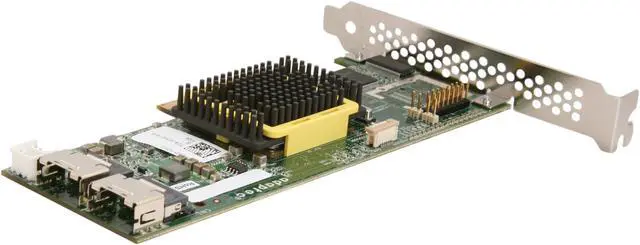

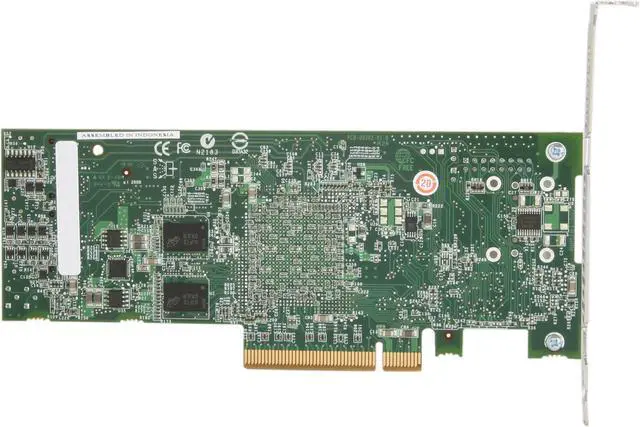

Adaptec RAID 2805 2269600-R SATA/SAS 8 internal ports w/ 128MB cache memory Controller Card, Kit

  • RAID 0/1/1E/10 JBOD
  • 2 x SFF-8087 mini-SAS Internal Connectors
ICON Loading...

The Series 2 family of Adaptec Unified Serial (SATA/SAS) RAID controllers leverages the same industry-leading dual-core hardware RAID design as our industry-leading Series 5 Performance RAID controllers. The Adaptec RAID 2805 features 800 MHz of processing power, a 128MB of DDR2 write cache, connectivity with the latest x8 PCI-Express, and direct I/O connectivity for SATA/SAS tape devices and hard drives. Using SAS expanders, it supports up to 128 devices. The Adaptec RAID 2805 supports a wide range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager for centralized management of all Adaptec RAID controllers on the network.


Learn more about the Adaptec 2269600-R

Model

Brand
Adaptec
Model
2269600-R

Specifications

Type
SATA / SAS
Internal Connectors
2 x SFF-8087 mini-SAS
Interface
PCI Express
Transfer Rate
Up to 3Gb/s
Cache Memory
128MB DDR2
RAID
RAID 0/1/1E/10 JBOD
Operating Systems Supported
Microsoft Windows
Red Hat Linux
SUSE Linux
SCO OpenServer
UnixWare
Sun Solaris
FreeBSD
VMware ESX

Features

Features
Intelligent Power Management

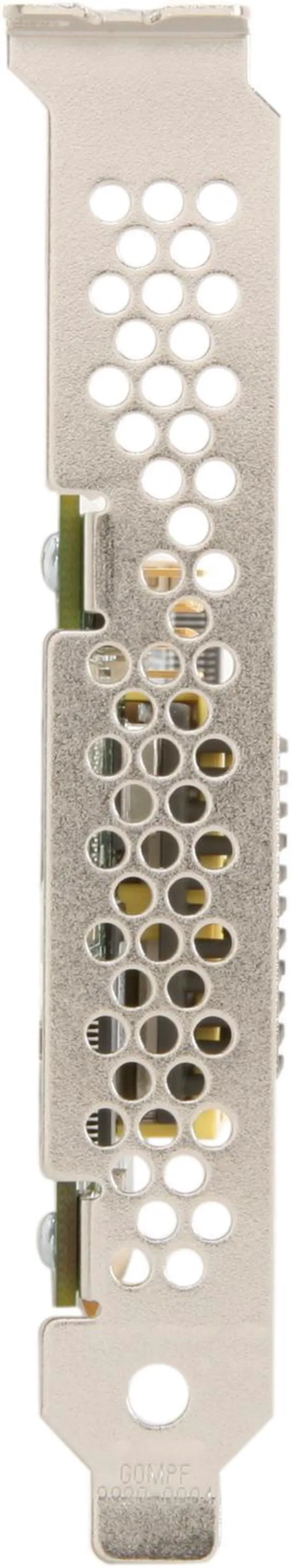

MD2 – Low profile form factor
800MHz processor
8-Lane PCI-Express bus interface
Up to 128 SATA or SAS drives using SAS expanders
Adaptec Storage Manager, Copyback Hot Spare management features
RoHS compliant

Manufacturer Warranty

Parts
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 0 day


Customer Reviews of the Adaptec 2269600-R

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Ryan A.
  • 9/2/2011 6:03:34 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

3 out of 5 eggsYou cannot use this just for the extra ports!

Pros: Low price for a 8 port raid card, has bios, looks easy to work with (did not configure any raids)

Cons: This card CANNOT be used just to add extra sata ports to a computer! My intention was to use this for Linux md raid but the drives do not show up. It wants to initialize them, which will destroy all data.

Other Thoughts: Rated 3 eggs to try to keep it neutral, the card itself may not bad for what it's suppose to do, I suppose, it's just a bummer that it cannot act as a non-raid card and just present the drives to the OS. Returning and will try to find a non-raid card for my needs.

0 out of 6 people found this review helpful. Did you? Yes No

  • Shane H.
  • 7/26/2011 6:43:21 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGood card to graduate from a HBA card.

Pros: -Latest firmware as of this review, 7/26/11, supports 3tb hard drives.
-Great customer service from adaptec.
-Management software is very easy to use
-No problems while during setup.
-Worked with no problems on my Gigabyte GA-Z68X-UD4-B3.

Cons: -As of 7/26/11 no EFI firmware for this card. if you have a motherboard with a uEFI bios this card will not work.
-Limited supported RAID levels.
-Requires adequate airflow over the ROC to keep it cool. Adaptec could have shipped with a better heatsink or one with a fan.

Other Thoughts: gigabyte ga-z68x-ud4-b3
intel i5 2500k
8gb corsair vengeance 1867
evga gtx 275

This is my first non-HBA raid card. I previously had a highpoint rocketraid 2310 which worked very well. When I first got this card I was on windows xp and would receive the "delayed write failed" message and my serial number was also showing an error whenever I tried to register it on the adaptec website.

I contacted customer support to resolve both issues. Once the agent, Norman(great help), had input my issue with my serial number he gave me technical support for my problem. The serial number issue was resolved the next day and I never did resolve the windows xp error because I upgraded to windows 7 and have not had an issue since.

11 of my 15 hard drives are configured in JBOD. I have a RAID 10 array with 4x2tb seagate green drives that spin at 5900rpm. With HD tach this array benchmarks at 919MB/s burst and 405MB/s sustained read. I am very pleased with this card so far, would buy again.
