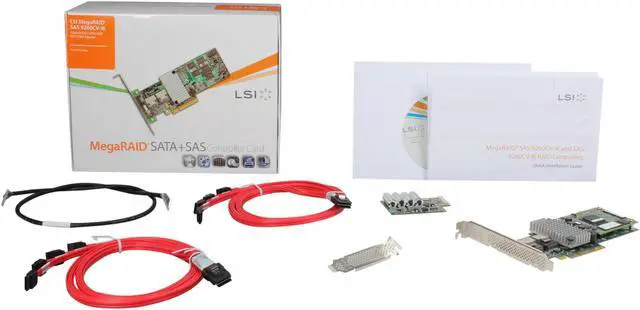

LSI LSI00283 PCI-Express 2.0 x8 MD2 Low profile SATA / SAS MegaRAID SAS 9260CV-8i Controller Card, Kit

Model

Brand

LSI

Model

LSI00283

Form Factor

MD2 Low profile

Specifications

Type

SATA / SAS

Internal Connectors

2 x SFF-8087 mini-SAS

Interface

PCI-Express 2.0 x8

Transfer Rate

Up to 6Gb/s

Cache Memory

512MB DDRII SDRAM

RAID

RAID 1/5/6/10/50/60

Operating Systems Supported

Extensive support includes Microsoft Windows 7 Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, Free-BSD, VMware and more.
Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support

Features

Features

I/O Processor/SAS Controller : LSISAS2108 RAID on Chip (ROC)

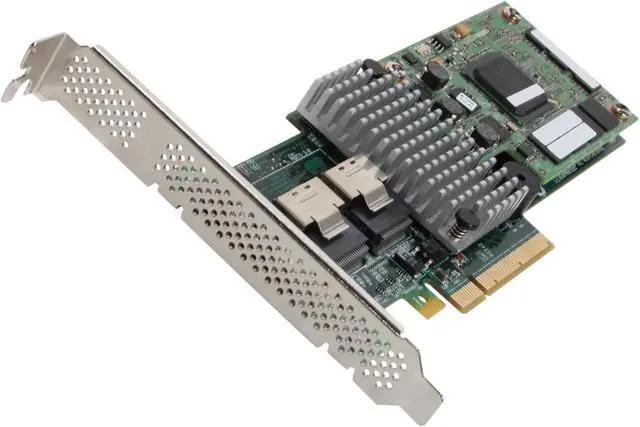

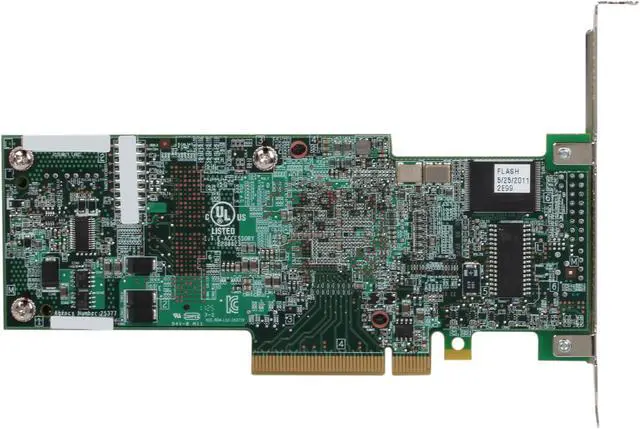

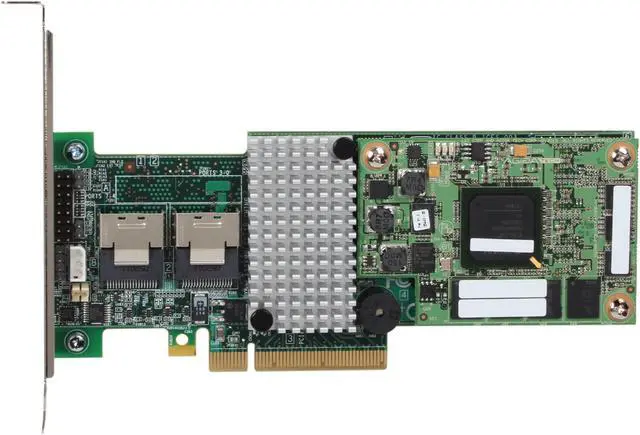

Low-profile, 8 internal port 6Gb/s SATA+SAS RAID card with x8 PCIe 2.0 host and powerful LSI RAID-on-Chip technology
Benefit from reduced hardware maintenance, lower total cost of ownership, and greener cache protection with CacheVault technology.
Flexibility to support 3Gb/s or 6Gb/s SATA, SAS or Solid State Drives
