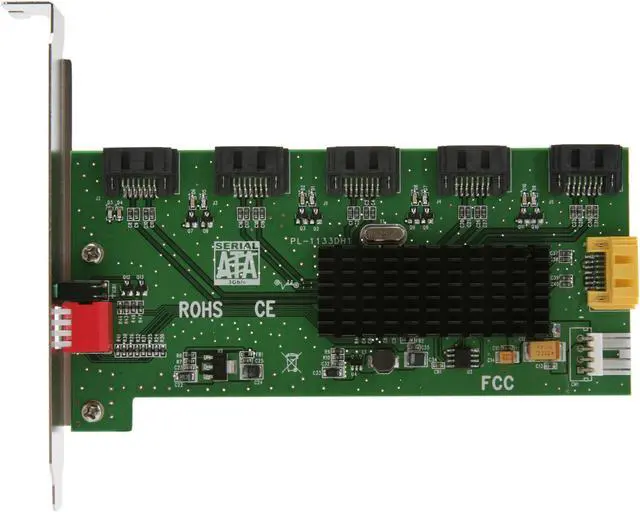

SYBA SY-PCI40037 SATA II (3.0Gb/s) 1:5 (5x1) Port Multiplier PCI Mounting Card

OPEN BOX Product Type
  • RAID 0 / 1 / 3 / 5 / 10 / LARGE / CLONE
  • 5 x SATA II Internal Connectors
  • Up to 3Gb/s
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Syba SY-PCI40037

Model
Brand SYBA
Model SY-PCI40037
Details
Type SATA II (3.0Gb/s)
Internal Connectors 5 x SATA II
Transfer Rate Up to 3Gb/s
RAID RAID 0 / 1 / 3 / 5 / 10 / LARGE / CLONE
Operating Systems Supported Windows 7 (32/64 bit)
Vista
Windows XP
Windows 2000
Windows 2003 (32/64 bit)
Windows 2008 64 bit
Features
Features JMB393 is a self-contained storage processor chip which completely frees up the main CPU loading.

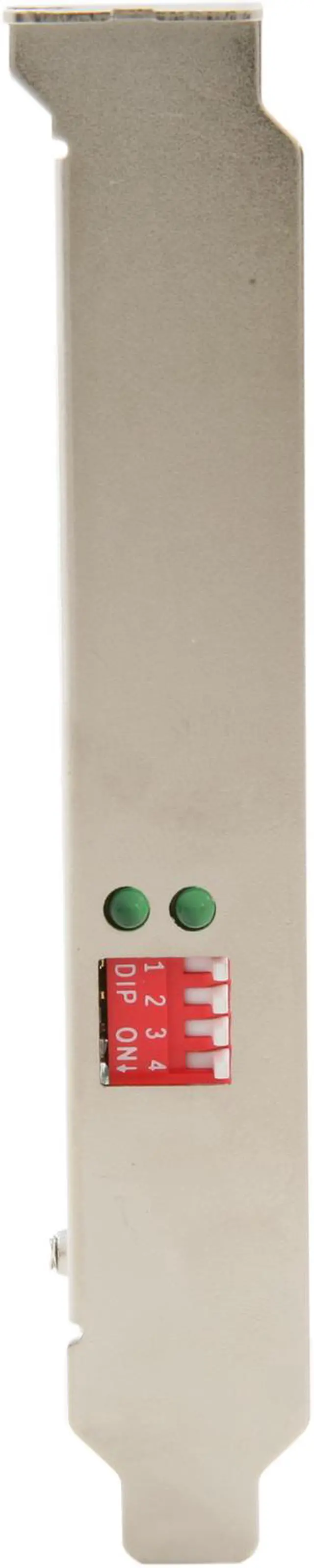

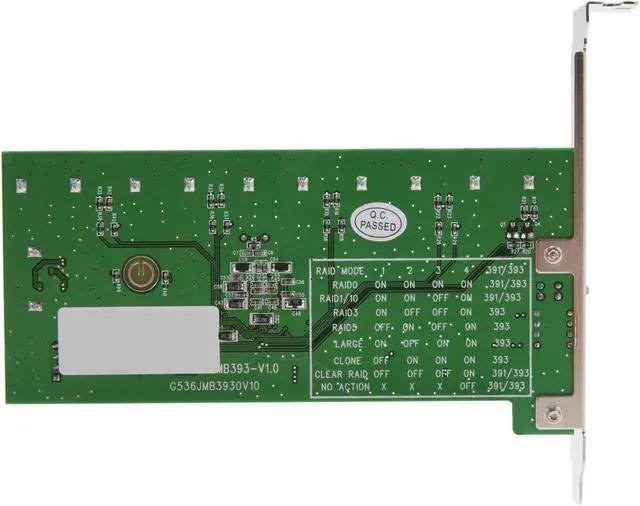

External Dip Switch for Easy RAID Configiration.

Provides SATA Port Expansion, Data Protection and Performance.

Supports SATA II Gen2i and Gen2m.

Supports Native Command Queue (NCQ).

Supports Hot-plug.

Supports PM Aware and Non-PM Aware Host.

RAID feature:
Fully hardware-accelerated RAID Engine.
No driver, BIOS or software required for RAID operation.
No external DRAM or processor required for RAID operation.
Independent of device SATA port connection sequence.
RAID 3 / 5 write-back cache to enhance performance.
SATA In-band application interface.
Supports more than 2Tera Bytes RAID drive.
Supports on-line command based bad sector recovery.
Supports on-line Auto-Rebuild.
Rebuild speed: 200GB/hour.
Rebuild proceed continuously between power cycling.
Supports Hot Spare on RAID.
Supports various RAID configuration and monitoring method.

Application:
RAID Subsystem
NAS Servers
Backup Systems
Disk Clone Systems
Serial ATA Enclosures
Large Capacity & High Performance Solid State Drive
Very Large Capacity Disk Systems
SATA Ports Expander.

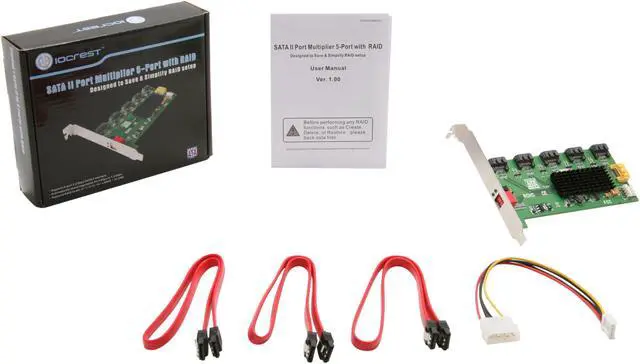

Package Contents
Package Contents 5x1 SATA II Port Multiplier PCI Mounting Card
4-Pin Molex Power Cord
SATA Cables 18" (2)
User Manual
Additional Information
Date First Available August 23, 2011
