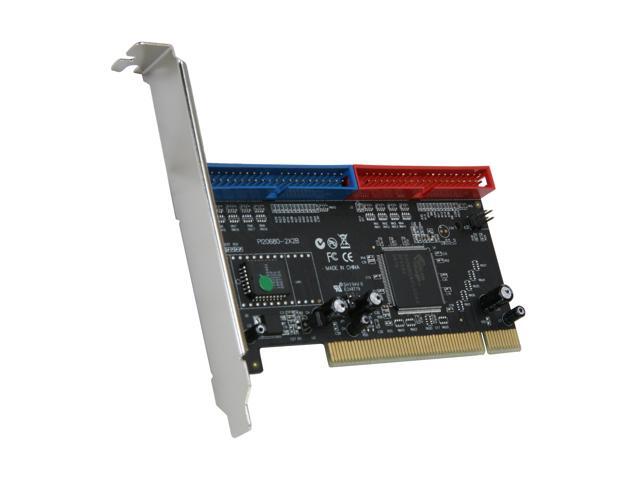

So you need to add an additional hard drive to your system but don't have any ports left? Well the Rosewill RC-200 controller card will provide all the ports you need, especially those of you with older systems. With 2 internal Ultra ATA/133 ports, the Rosewill RC-200 will enhance any system and provide loads of expansion. The RC-200 is compliant with UltraDMA6 ATA/133 specifications so it will work on almost any IDE device.
To add to your expansion capabilities, the RC-200 can support RAID in the following modes: RAID0(striping), RAID1(mirroring), RAID 0+1(mirroring+striping) Also keep in mind that you can choose to have just 2 hard drives without RAID. Last but not least the RC-200 includes drivers for most Windows operating systems including Windows 98SE/ ME/ NT 4.0/2000/XP/Server 2003/Vista32/64bit.
Other Thoughts: This is a real steal for a controller card that is unbeatable in many respects... Been using this card, and its Koutech cousin for years. My Server has one of these running and XP 1700 and 2 Samsungs in Raid 0+1...its that old. Paired with good 7200 hard drives, it will easily do 90 to 110 mbs/sec.
12 out of 12 people found this review helpful.
Did you?
Thanks for the valuable feedback you provided!
Cheap and easy RAID card
Reviewed By: timeToy on 3/12/2007
Tech Level: high - Ownership: 1 week to 1 month
This user purchased this item from Newegg
Pros: - Cheap - Easy to set up and manage - Use "old" PATA Drives
Cons: - Cheap - Use "old" PATA Drives
Other Thoughts: This is a RAID card on a budget, for both the card and the Hard drives connected to it... It does that job perfectly...
12 out of 16 people found this review helpful.
Did you?
Cons: This controller card will randomly stop recognizing drives, and when this happens, you have to remove the card, and swap it out, I happen to have two of these thanks to this happening, and they both do the same thing, Rosewill, if your gonna put your QC label on the card, at least make sure it works properly!!!. Do not buy this card, as you will have weekly headaches with it, it also seems to happen more often when you shut down the machine
Other Thoughts: This card is one of the worst parts I have ever bought at Newegg.com and I would have thought that it would have been better considering that it was on Newegg...... First bad product offa here, and I've built several machines with parts I've gotten from newegg, and never been dissappointed before..... Don't buy this card
Did you find this review helpful?
Thanks for the valuable feedback you provided!
RC-200 RAID PCI was DOA
Reviewed By: on 11/5/2009
Tech Level: high - Ownership: less than 1 day
This user purchased this item from Newegg
Pros: I installed PCI raid controller card into my system but unfortunately it could not read any drives on the primary master slot. Tried switching drives and cables, no joy. From what it looked like, if the card would of worked it would of been SUPER EASY to setup a RAID config. I was very disappointed. The good news is that NewEgg is sending me a new card free of charge and I didnt even have to mail back the old defective card. :) I was very happy about that. I will create another review when the second cards shows up.
Cons: it was DOA. :(
Did you find this review helpful?
Thanks for the valuable feedback you provided!
Works fine
Reviewed By: nuttervm on 11/2/2009
Tech Level: high - Ownership: 1 week to 1 month
This user purchased this item from Newegg
Pros: Works good, inexpensive, Windows 7 recognizes this device out of the box without needing to use the provided driver disk. No fuss, i was up and running in under 5 minutes.
Cons: One of the included IDE cables tore because it was a tight fit... seems a little too flimsy, but i have to admit i was stretching it a little bit. If they provided longer cables this would have been avoided.
Other Thoughts: Just buy it already!
Did you find this review helpful?
Thanks for the valuable feedback you provided!
Model
Brand
Rosewill
Model
RC-200
Specifications
Type
IDE
Internal Connectors
2 x ATA 133
Interface
PCI
RAID
RAID 0,1,0+1 JBOD
Operating Systems Supported
Windows 98SE/ME/NT 4.0/2000/XP/Server 2003/Vista 32/64bit
Features
Features
Silicon Image SiI 0680 Compliant with UltraDMA6 ATA/133 specifications Compliant with PCI v2.2 Plug-n-Play Provides two independent Ultra ATA channels Full ACPI power management support Supports Ultra DMA 0-6 and Multi-word DMA 0-2 Supports hard drives larger than 137GB Supports RAID 0(Striping), RAID1(Mirroring) and RAID 0+1 (Mirror+Striping) CRC(Cyclical Redundancy Check) error-checking provides data verification and achieves flawless data transfer Achieves burst data transfer rates up to 133MB/sec Works with various brand of Ultra ATA 133/100/66/33 hard disk drives
Warning:RC-200 is design for hard drive only and can't work with DVD ROM. If you want to plug a DVD ROM, please consider RC-208.
Packaging
Package Contents
User Manual Driver Disk 1 x IDE Cable
Introduction
So you need to add an additional hard drive to your system but don't have any ports left? Well the Rosewill RC-200 controller card will provide all the ports you need, especially those of you with older systems. With 2 internal Ultra ATA/133 ports, the Rosewill RC-200 will enhance any system and provide loads of expansion. The RC-200 is compliant with UltraDMA6 ATA/133 specifications so it will work on almost any IDE device.
To add to your expansion capabilities, the RC-200 can support RAID in the following modes: RAID0(striping), RAID1(mirroring), RAID 0+1(mirroring+striping) Also keep in mind that you can choose to have just 2 hard drives without RAID. Last but not least the RC-200 includes drivers for most Windows operating systems including Windows 98SE/ ME/ NT 4.0/2000/XP/Server 2003/Vista32/64bit.
Highlights
Ultra ATA 133 Compliant Compliant with ATA 133, the Rosewill RC-200 provides up to 133MB/s bandwidth and works with various brands of Ultra ATA 133/100/66/33 hard disk drives.
RAID Support Two IDE ports support RAID 0, RAID 1 and RAID 0+1 for better performance and reliability.
