| Model |
| Brand |
Rosewill |
| Model |

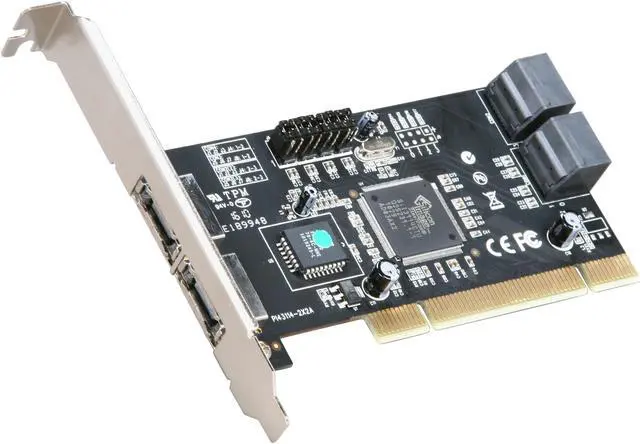

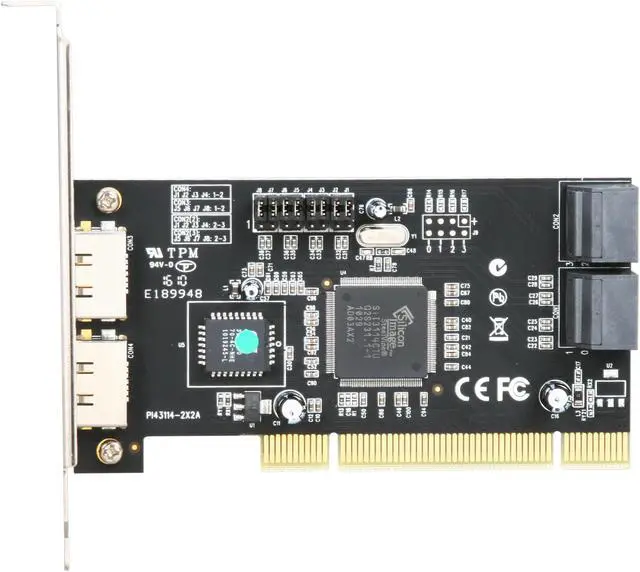

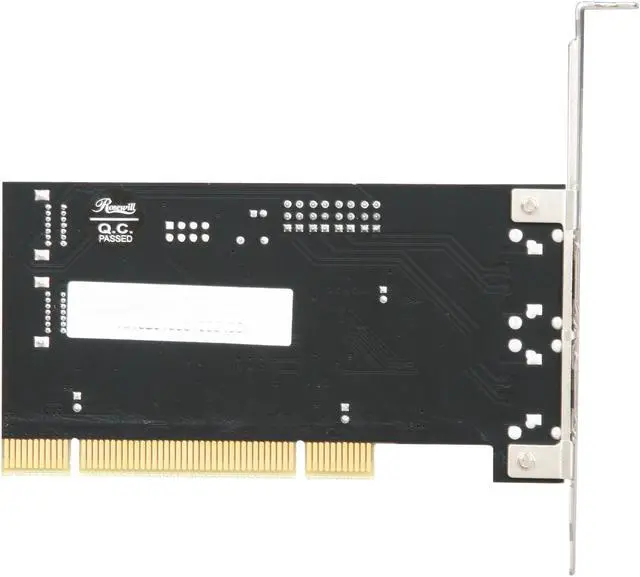

RC-209-EX |
| Specifications |
| Type |
SATA |
| External Ports |

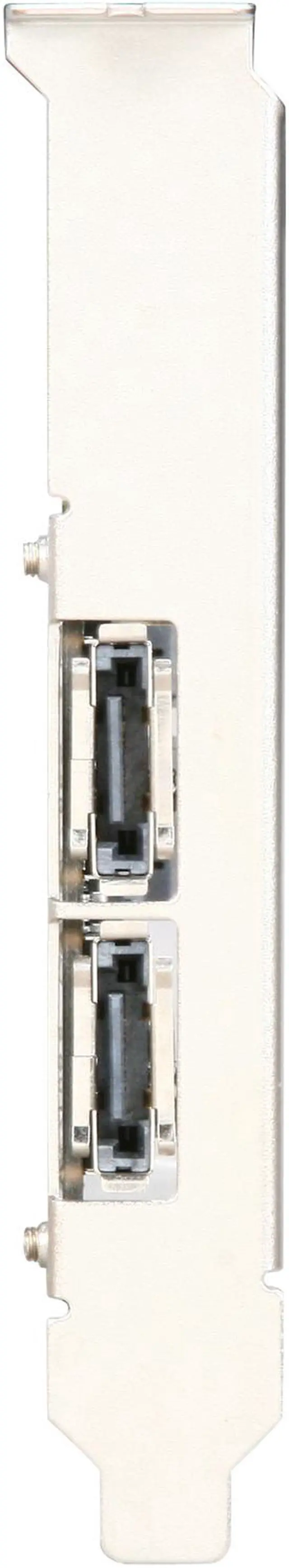

2 x eSATA 1.5G |
| Internal Connectors |

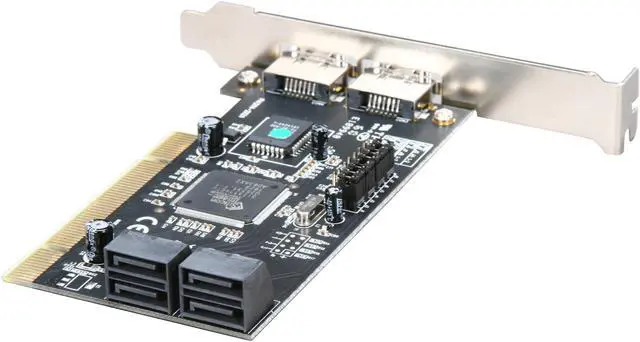

4 x SATA 1.5G |
| Interface |
PCI 2.3, 32bit, 33/66Mhz |
| Transfer Rate |
Up to 1.5Gb/s |
| RAID |
Supports RAID0(striping), RAID1(mirroring), RAID5(Parity RAID), RAID 0+1(mirroring+striping) and Concatenation modes |
| Operating Systems Supported |
Windows 2000,XP/2003 32/64bit,Vista 32/64bit, Windows 7 32/64bit |
| Features |
| Features |
Enterprise-class Throughput - With Ultra/150 Command Queuing technology that optimizes the sequence of data transfers to the hard drive from the host, resulting in higher performance in enterprise applications. Rugged - Enterprise-class mechanical platform with high-end bearings and actuator. Unsurpassed Reliability - 1,200,000 hours MTB RC209-EX with Silicon 3114 can support 4 SATA channels at one time. It can work as a RAID 0/1/0+1/5 HDD controller card or an un-RAID extension card for SATA device (HDD or SATA optical drive) If you don’t active the RAID function, you can attach 4 SATA HDD as a normal extension card. Rosewill special design, “Magic Switch”, allows two modes operation. Mode one: You can active 4 internal SATA ports and two external e-SATA is off-line. Mode two: You can active 2 internal + 2 external SATA ports for connecting your e-SATA enclosures and SATA devices. In this mode, two internal SATA channel will be off-line. Attention: Need a floppy driver on PC if you want to install a new OS into a fresh HD attaching to this card (fresh installation) You can select booting from HDD connecting to motherboard or RC-209-EX (if you want to install a new system from HDD connecting to RC-209-EX, you need a floppy drive to process the installation) RC-209-EX is an upgrade version of RC-209. The only different between RC-209-EX and RC-209 is the external eSATA port. RC-209-EX is an external eSATA version which can allow you hook up more eSATA enclosures. All other parts of RC-209-EX are the same as RC-209. |
| Packaging |

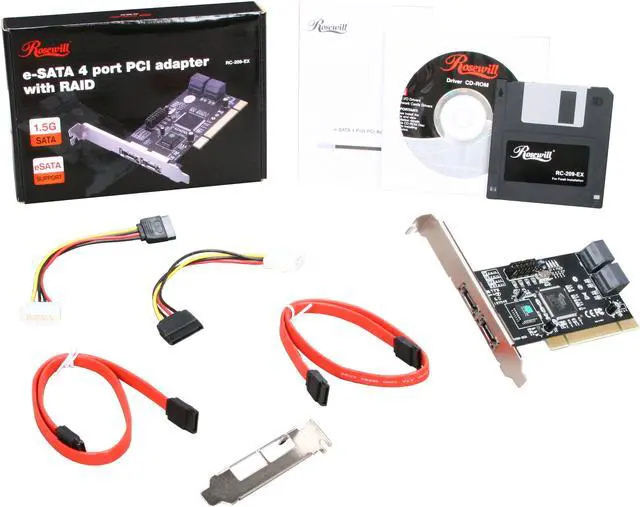

| Package Contents |
RC-209-EX SATA Cable Low Profile Bracket 2 x SATA Cable User Manual Floppy Drive Diskette Other Accessories |
|
|
