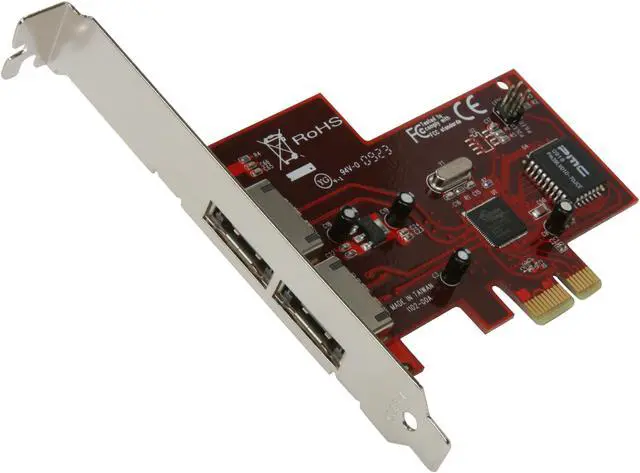

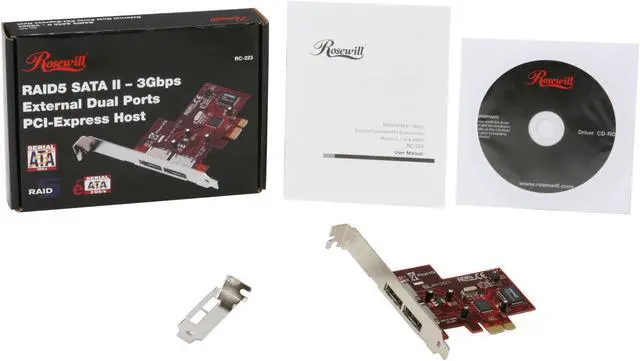

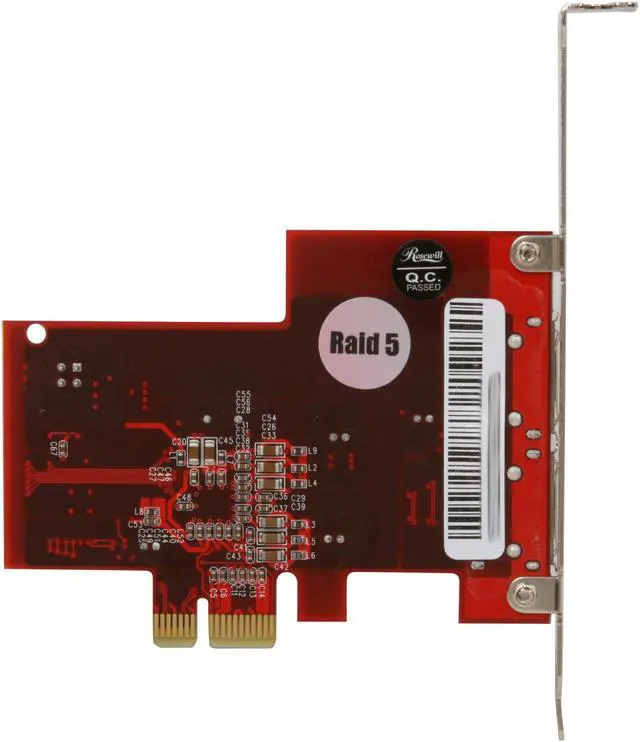

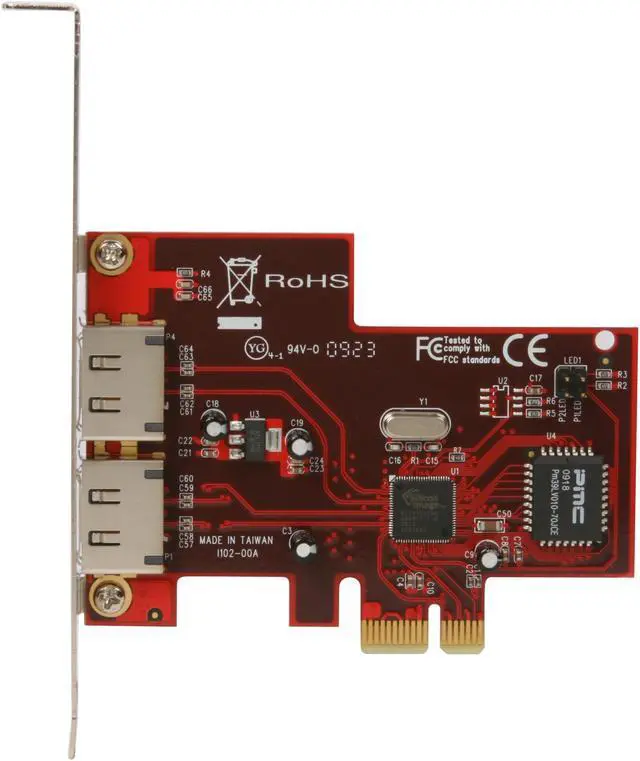

Rosewill RC-223 PCI Express Low Profile Ready SATA Controller Card

(5) Write a Review
  • RAID 0/1/0+1/5 JBOD
  • 2 x eSATA External Connectors
  • Up to 3Gb/s
Specs
Reviews (5)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Rosewill RC-223

Model
Brand Rosewill
Model RC-223
Form Factor Low Profile Ready
Details
Type SATA

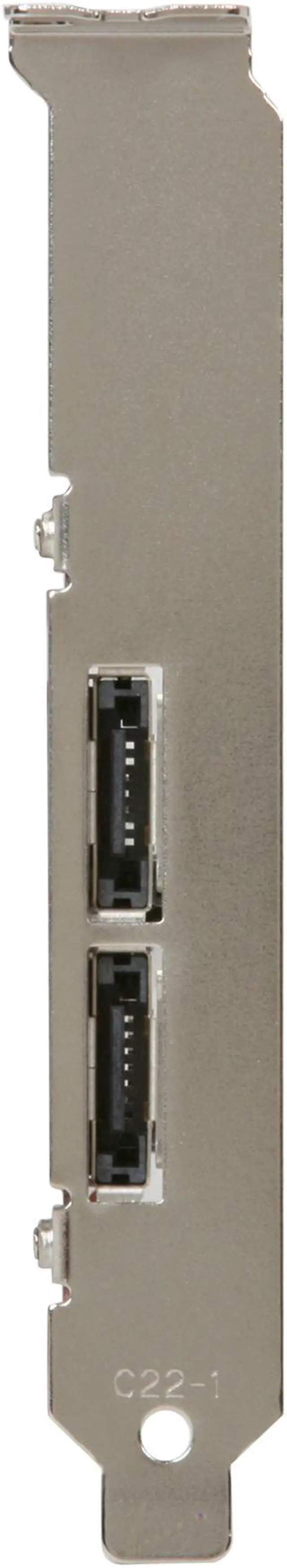

External Connectors 2 x eSATA
Interface PCI Express
Transfer Rate Up to 3Gb/s
RAID RAID 0/1/0+1/5 JBOD
Dimensions 4.76" x 4.5" x 0.78"
Features
Features 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
Hot-plug capability
Independent Link, Transport, and data FIFO
Independent command fetch, scatter/gather, and command execution
Supports Legacy Command Queuing (LCQ)
Supports Native Command Queuing (NCQ)
Supports Non-zero offsets NCQ
Supports Out of order data delivery NCQ
Supports FIS-based switching with Port Multipliers
31 Commands and Scatter/Gather Tables per Port
Two Pin headers on board for LED connection
RAID 5 (Distributed Parity RAID) has Highest Read data transaction rate and Good aggregate transfer rate
Raid 5 requires Port Multiplier and 3rd Drive
JBOD is a virtual disk that combines all disk drives as one entire disk drive
Provides RAID 0 (Striping) to greatly increase the performance of data transfer by simultaneously writing data to multiple drives
Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives
RAID 0+1 (Mirrored-Striping) combine both Striping and Mirroring technologies to provide both the performance enhancements that come from Striping and the data availability and integrity that comes from Mirroring
Completely with drivers for Windows 2000 ,XP and 2003 Server
Supports 64bit / 32bit Windows Vista
Linux 32bit / 64bit drivers supported for RHEL 4.0 Up2, RHEL 4.0 Up3, SuSE 9.0 SP2, SuSE 9.0 SP3 by SiliconImage SiI3132.
Mac OS X v10.4 Non-booting driver supported by SiliconImage SiI3132
Chipset : SiI3132
Fully RoHS compliant
