Item#: N82E16816151105

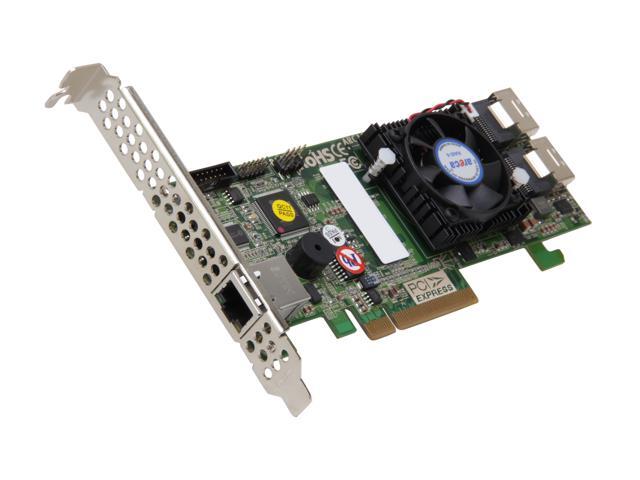

areca ARC-1882I PCI-Express 2.0 x8 Low Profile SATA / SAS 8 Ports 6Gb/s SAS/SATA RAID Adapters

  • RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
  • 2 x SFF-8087 mini-SAS Internal Connectors
  • Pin It
  • Email this page
ICON Loading...

SAS 2.0 is designed for much higher speed data transfer than previous available and backward compatibility with SAS 1.0. The 6Gb/s SAS interface supports both 6Gb/s and 3Gb/s SAS/SATA disk drives for data-intensive applications and 6Gb/s or 3Gb/s SATA drives for low-cost bulk storage of reference data. The ARC-1882 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports models.


Learn more about the Areca ARC-1882I

Model

Brand
areca
Model
ARC-1882I
Form Factor
Low Profile

Specifications

Type
SATA / SAS
Internal Connectors
2 x SFF-8087 mini-SAS
Interface
PCI-Express 2.0 x8
Cache Memory
1GB on-board DDR3-1333 SDRAM
RAID
RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Operating Systems Supported
Windows 7/2008/Vista/XP/2003
Linux
FreeBSD
VMware
Solaris 10/11 x86/x86_64
Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x
Dimensions
6.67" x 2.54"

Features

Features
Dual Core RAID-on-Chip (ROC) 800 MHz processor

PCIe 2.0 x8 lane host interface

1GB on-board DDR3-1333 SDRAM with ECC

Write-through or write-back cache support

Support up to 8 internal 6Gb/s SAS ports

Multi-adapter support for large storage requirements

BIOS boot support for greater fault tolerance

BIOS PnP (plug and play) and BBS (BIOS boot specification) support

Support EFI BIOS for Mac Pro

NVRAM for RAID event & transaction log

Redundant flash image for controller availability

Battery Backup Module (BBM) ready (Option)

RoHS compliant

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the Areca ARC-1882I

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Brian C.
  • 5/30/2014 3:05:37 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

4 out of 5 eggsIt's okay, but only just...

Pros: I use it in my MythTV server and it has proven to be very reliable with my 5x WD Red 3.0TB drives in a RAID5 configuration. I love having direct access to the controller via network connection/web browser.

Cons: Doesn't seem to perform nearly as fast as my old Areca ARC-1220 controller.

Did you find this review helpful? Yes No

  • Dennis K.
  • 1/29/2014 4:54:01 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat RAID Card!

Pros: I can't say enough good things about this card. And it is VERY FAST. The manual is by far the most comprehensive I have ever read. Very clearly written, it makes installation easy if you take the time to read it. A myriad of options are available yet very manageable. Browser based configuration utility is beautifully clear as is the boot utility. Firmware upgrade (1.52) was easy. The entire installation was trouble free.

Cons: Not one.

Other Thoughts: Using 8 Crucial M500x240 SSDs R5 config, ASUS KGPE-D16, WIN 7x64,

Did you find this review helpful? Yes No

  • Stephen T.
  • 10/31/2013 12:02:44 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat card for the price!

Pros: Excellent, high performing card for the price.

Cons: None

Did you find this review helpful? Yes No

  • Stephen T.
  • 10/31/2013 11:56:08 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat card for the price!

Pros: Fast, reliable card that's more than reasonably priced.

Cons: None

Did you find this review helpful? Yes No

  • Mark M.
  • 2/7/2013 1:02:29 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsNice card

Pros: Added card to super micro dual xeon 5670 server. The card supports low profile, so no problem installing. Setup with 8 Seagate Cheetah 15K.7 ST3600057SS 600GB 15000 RPM in a raid 5 configuration. Using Samsung SSD as boot disk. With this raid setup for Hyper-V machines, this is by far the fastest setup I have ever owned.

Cons: Expensive for raid card plus 8 sas disks.

Other Thoughts: Crystal Sequential Read 1259 MB/s, Sequential Write 1314 MB/s.
Brought new life to server that is going on 3 years old.

Did you find this review helpful? Yes No

  • Sergio R.
  • 4/25/2012 9:55:43 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggs

Pros: Worked straight out of the box as expected. Raid setup was easy. You can do it through bios or through the browser after installing drivers and utility.

Cons: The small fan has a bit of a high pitch wine. Is not very noticeable when all of your other fans are spinning. But when your computer is not working hard and everything else is powered down, then you start noticing it. I am thinking of replacing the stock heat sink and fan and retro fit a silent chipset fan.

3 out of 3 people found this review helpful. Did you? Yes No

  • Larry K.
  • 2/3/2012 5:46:20 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsBoot - No Problem

Pros: To N/A that was whining about the card not being bootable, if he had followed suggestions and updated the BIOS, he would find that the card not only can be used for the boot drive, but it is amazingly fast.

Cons: Expensive, but you get your money's worth.

Other Thoughts: ATTO Diskbench shows >2.4Gb/Sec Reads

4 out of 4 people found this review helpful. Did you? Yes No

  • DMS I.
  • 1/29/2012 11:29:57 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsDont Buy to Run an OS

Pros: It works as an additional drive if you never reboot your PC.

Cons: This card which I bought because of a review in a PC Mag was just a waste of money and time. I should have searched the reviews before buying. This card has a known driver issue that will not let you load a OS on it. You will be able to load the drivers, find the drive, load the OS......*****BUT UPON REBOOT IT WILL GET STUCK AT VERIFYING DMI POOL...Spent hours on the phone with tech support, updated to latest firmware, no luck. Their tech support (Which consists of One, Yes One, guy in north america stopped answering my emails. THIS PRODUCT ( For Loading an OS ) IS GARBAGE, AND SO IS THEIR SUPPORT

Other Thoughts: Dont Buy For Loading OS

0 out of 13 people found this review helpful. Did you? Yes No

  • Tina H.
  • 1/10/2012 1:20:49 AM
  • Tech Level: Average
  • Ownership: less than 1 day

5 out of 5 eggsFan out cables

Pros: Does it come with fan out cables?

Cons: none

Other Thoughts: none

0 out of 12 people found this review helpful. Did you? Yes No
