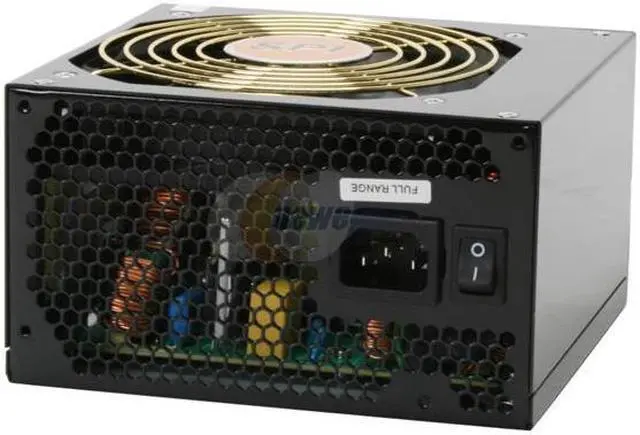

SPARKLE R-SPI600GLN 600 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS Certified Active PFC Power Supply

(1) Write a Review
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Sparkle Power Inc. R-SPI600GLN

General
Brand SPARKLE
Model R-SPI600GLN
Details
Type ATX12V / EPS12V
Maximum Power 600 W

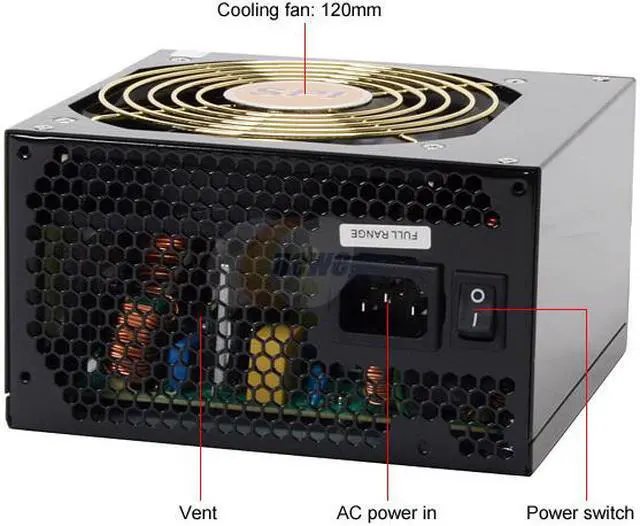

Fans Internal 12V DC fan included
PFC Active
Main Connector 20+4Pin
+12V Rails 4
PCI-Express Connector 2 x 6+2-Pin
SATA Power Connector 6
SLI SLI Ready
CrossFire CrossFire Ready
Modular No
Power Good Signal 100-500ms
Hold-up Time 17ms minimum at nominal input voltage
Efficiency 80% ~87% on 20~100% Load.
Energy-Efficient 80 PLUS Certified
Over Voltage Protection Yes
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 10/ 5A
Output +3.3V@36A,+5V@30A,+12V1@18A,+12V2@18A,
+12V3@18A,+12V4@18A,[email protected],[email protected]
MTBF 100,000 hours on maximum load at +25°C
Approvals UL, CSA, TUV, CB, CE

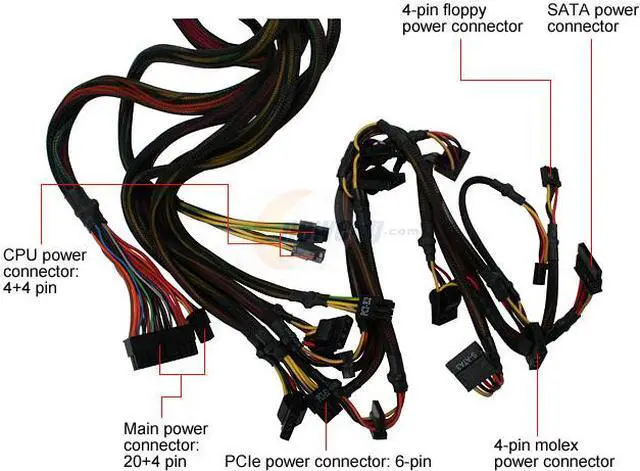

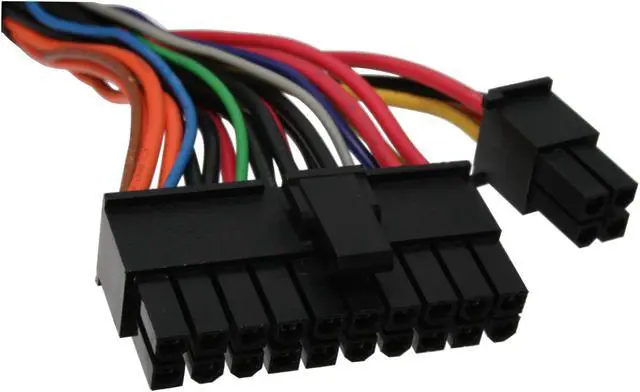

Connectors 1 x Main connector (20+4Pin)
1 x 12V(4+4Pin)
6 x peripheral
6 x SATA
2 x Floppy
2 x PCI-E
Features
Features Complied with EPS12V standard
High efficiency and reliability
Remote ON/OFF function
Noise Killer (thermal fan speed control function)
Low noise and ripple
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Additional Information
First Listed on Newegg May 21, 2007
