Item#: N82E16817103908

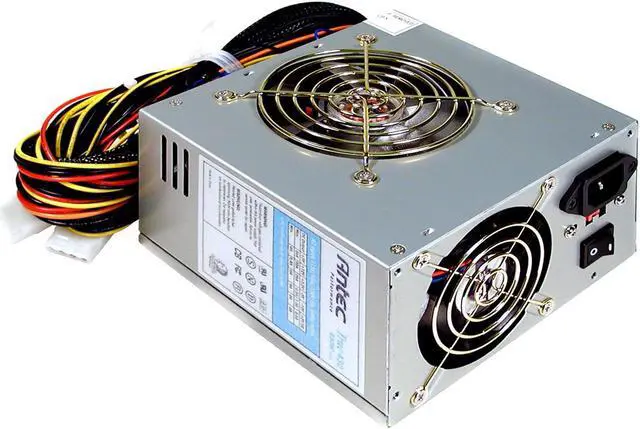

Antec TRUE430 430W ATX Power Supply

  • ATX
  • 115 / 230 V 50/60 Hz
  • +5V@36A, +3.3V@28A, +12V@26A, -5V@0.5A, -12V@1A, +5VSB@2A
ICON Loading...

Learn more about the Antec TRUE430

Model

Brand
Antec
Model
TRUE430

Spec

Type
ATX
Maximum Power
430W
Fans
2
PFC
No

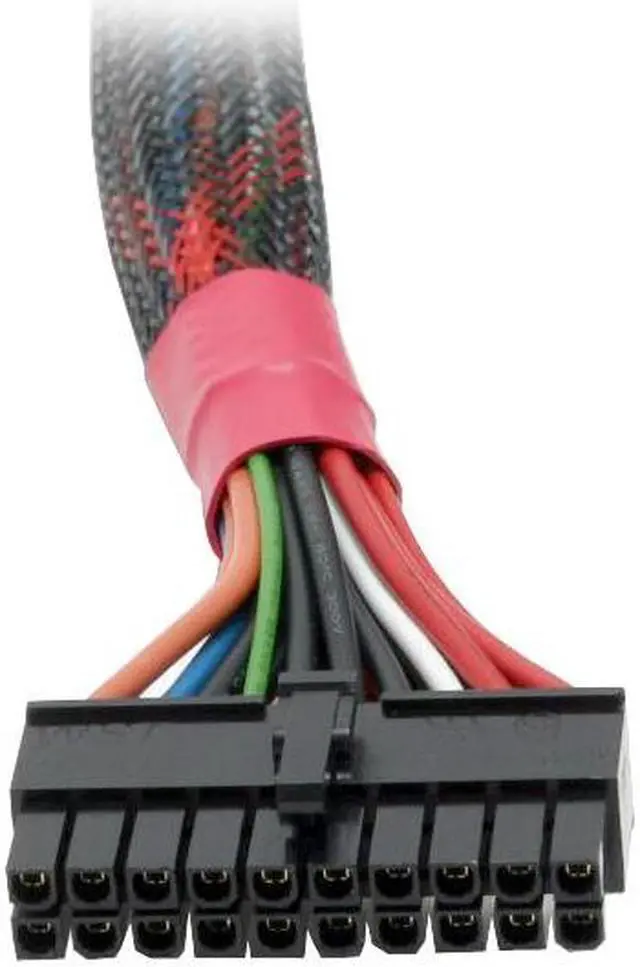

Main Connector
20Pin
+12V Rails
Single
Power Good Signal
100-500ms
Hold-up Time
17ms min.
Efficiency
> 68%
Over Voltage Protection
+5V trip point < +6.5V
+3.3V trip point < +4.1V
+12V trip point < +14.4V
Overload Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
10A @ 115V, 5A @ 230V
Output
+5V@36A, +3.3V@28A, +12V@26A, -5V@0.5A, -12V@1A, +5VSB@2A
MTBF
>80,000 Hours
Approvals
UL, TUV, CB, VDE, FCC CLASS B, DEMKO, NEMKO, SEMKO

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the Antec TRUE430

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Edwin P.
  • 1/30/2013 5:22:28 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggsLifetime

Pros: Longevety

Cons: Missing modern connectors?

Other Thoughts: Just for the record, this has been powering my system for over 10 years now. I bought a PSU with a lifetime warranty figuring that it would eventually fail and the manufacturer would send me something more modern, but the darn thing wont' die!

Did you find this review helpful? Yes No

  • Andy L.
  • 1/20/2012 12:51:54 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggs

Pros: Still going strong more than 7 years later. Powers my new ATI Radeon HD 6870 video card without a hitch.

Cons: Doesn't have the 6-pin/8-pin connectors for the most current PCI-E video cards, but that's expected.

Did you find this review helpful? Yes No

  • Ryan B.
  • 1/11/2006 6:30:17 PM
  • Tech Level: High
  • Ownership: more than 1 year

5 out of 5 eggssimply the best

Pros: This replaced a 500 watt generic that lasted a month. Had for over a year still running perfect, with a bfg 6600gt and a prescot 3.4. Well worth the money, no point in buying a dual 12V rail really if your video card doesnt have an sli power connector

Cons: the bottom fan is starting to scrape a little. Still very very quiet, as it runs around 1000rpm.

Did you find this review helpful? Yes No

  • Anonymous
  • 10/5/2005 12:56:08 PM
  • Tech Level:
  • Ownership:

2 out of 5 eggspoor choice for me, too

Comments: Wow, wish I had read these reviews before I bought it. Looks like Antec set out to sink their integrity. 1.9 years old, paid seventy for it through newegg, and it took about two days to fail. Slowly, but surely, the voltage dropped on the +5. Then the computer just would not get through, or sometimes into, the BIOS. Replaced it, on a guess and a whim, with a Roxxxill RV350 (only xx bucks!), and my computer is up and running strong again. Antec's RMA process is proving to be a bit of a pain, too - as if I paid that good money to have my compuer down for two weeks. Thank goodness it didn't fry my equipment like it seemed to have for some.

0 out of 1 people found this review helpful. Did you? Yes No

  • chad c.
  • 9/23/2005 8:14:07 PM
  • Tech Level:
  • Ownership:

1 out of 5 eggsPoor Quality

Comments: I have had TWO Antec power supplies (True430) fail to maintain stable operation resulting in crashes/reboots/graphical corruption. Seems I'm not the only one...I will never purchase another Antec power supply.

0 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 9/13/2005 5:42:23 PM
  • Tech Level:
  • Ownership:

5 out of 5 eggsPerfect!

Comments: This power supply works like a dream, no random crashes, no noise (okay theres some noise but you have to actually sit there and listen for it), and a great price.

Buy this sucker! unless your going with a dual videocard setup, you'll never need anything else. (or like maxed out hard drives or something looney like that)

Don't believe the competition when they say theres is like 600Watts, as a rule of thumb only the major brand names like Antec with higher price tags are telling you the truth.

Did you find this review helpful? Yes No

  • Lee J.
  • 9/4/2005 4:18:24 PM
  • Tech Level:
  • Ownership:

1 out of 5 eggsdied and took my mobo out within 1.5 years.

Comments: Watch out for this one guys! I had this exact model blow out on me after 1.5years. It took out my motherboard with it. I did some research and it turns out ANTEC uses low-grade capcitors that are prone to leakage. Check this post i found on anandtech.

Did you find this review helpful? Yes No

  • Anonymous
  • 8/29/2005 3:44:06 PM
  • Tech Level:
  • Ownership:

5 out of 5 eggsGood power supply

Comments: Good power supply but I pushed it too hard. Used this supply for about 6 months and it worked great. When I added two new drives (I have 10 drives, AMD 64 3800+, 2 GB, Asus A8N-SLI Deluxe), I exceeded the capacity of the supply and the system became unstable. Replaced it with an Antec True Power II 550 W, and system works fine. Note the supply is just fine. I moved it to another system and it is working away just fine. Supply is quite quite, but not as quite as the new one, which has a 120mm fan instead of the double 80mm fans.

Did you find this review helpful? Yes No

  • Ethan T.
  • 8/26/2005 10:23:32 PM
  • Tech Level:
  • Ownership:

3 out of 5 eggsNot for motherboards with PCI-Express.

Comments: If you are getting a motherboard with a PCI-Express bus, do not buy this Powersupply. It does not have a 24-pin connector. Instead get the 430 TPII Power supoply also from Antec.

Did you find this review helpful? Yes No

  • Anonymous
  • 8/19/2005 5:55:47 PM
  • Tech Level:
  • Ownership:

3 out of 5 eggsnot sure

Comments: Thought I'd put my 2 cents worth here.

First, the 3 stars is mainly to grab attention because I'm not sure what went wrong with my system (maybe me?)

I bought this PS locally, so this is no reflection on Newegg.

I've had my Antec PS for about 2 years now. Seemed to be rock solid the whole time I've used it. It was used with an Epox 8kha+ Mboard.

My whole rig was bought thinking "overclock" when I built it. However I was only able to OC a 133 to 141. I had dreams of higher, but no. Ok, I digress...Well, even that amount may be what happened, and it may not even by the fault of my Antec PS.

Anyway, my wife and I noticed an electrical burning smell recently. Then, my system began to crash every 2 or three minutes. Turns out that I have a charred mainboard connector. Sooooo, I can't tell if my MB or my PS is to blame.

Now I have a new MB on order from Newegg (ASUS A7N8X-X Socket A (Socket 462) NVIDIA nForce2 400 ATX AMD Motherboard) and power supply (ATRIX PSCI-480 480W Power Supply) to replace my lost member of the family. Maybe a review of those down the road.

Did you find this review helpful? Yes No
