FSP Group FSP220-60LE(80) 220W Mini ITX/ Flex ATX 80 PLUS Certified Active PFC Power Supply with Intel Haswell Ready - OEM

  • Mini ITX/ Flex ATX
  • 80 PLUS Certified
  • 115 / 230 V 47 - 63 Hz
  • +3.3V@14A, +5V@16A, +12V1@16A, +12V2@10A, -12V@0.8A, +5VSB@2.5A
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...



Overview

image_01

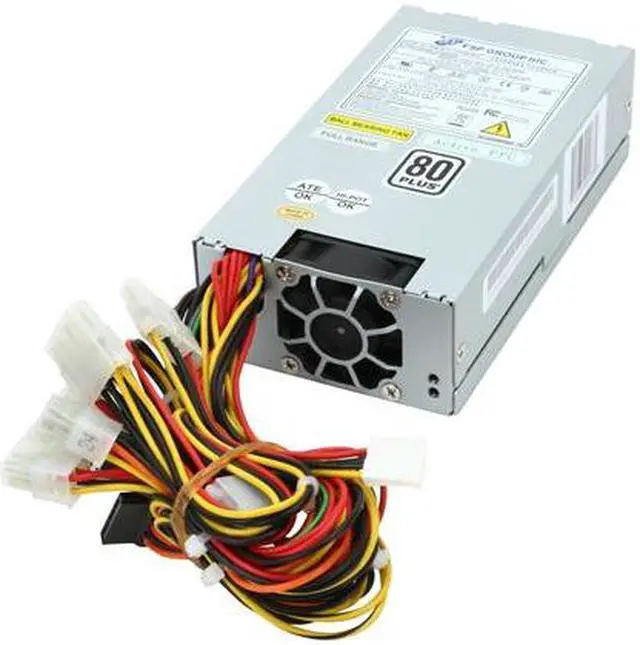

FSP 220W Mini ITX / Flex ATX Power Supply
FSP220-60LE(80)

This Flex ATX 220W Power Supply unit is 80 PLUS certified for strict operating efficiency performance. It fits most compact high-performance Flex ATX form factors and high operating efficiency configurations. FSP Quality Assurance Program, a manufacturer’s direct service, guarantees quality and performance for a period of two years, included. All FSP OEM models are qualified for RoHS, Lead-Free, Green Product (G.P) environmentally friendly status.



Key Features

image_02
  • 80 PLUS Certified
  • Supports AMD/Intel CPU System
  • 220W Continuous Output
  • 40mm Cooling Fan System
  • Thermal Control System Linked To Fan
  • Energy Saver 1W Standby Mode
  • High Power Conversion Efficiency
  • Active PFC Full Range Input
  • Energy Saving Calculator

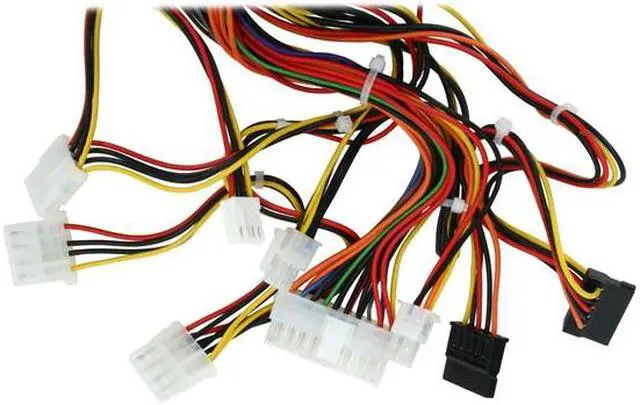

Output Connectors

connector_01

MAIN 20-PIN x 1

connector_02

P4-PIN x 1

connector_03

MOLEX 4-PIN x 3

connector_04

SERIAL ATA 15-PIN x 2

connector_05

FDD 4-PIN x 1




Learn more about the FSP Group (Fortron Source) FSP220-60LE(80)

Model

Brand
FSP Group
Model
FSP220-60LE(80)

Spec

Type
Mini ITX/ Flex ATX
Maximum Power
220W
Fans
1 x 40mm ball-bearing with Thermal Sensor Linked
PFC
Active
Main Connector
20Pin
+12V Rails
2
SATA Power Connector
2
Haswell Support
Yes
Efficiency
80% typical fullload
Energy-Efficient
80 PLUS Certified
Over Voltage Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
47 - 63 Hz

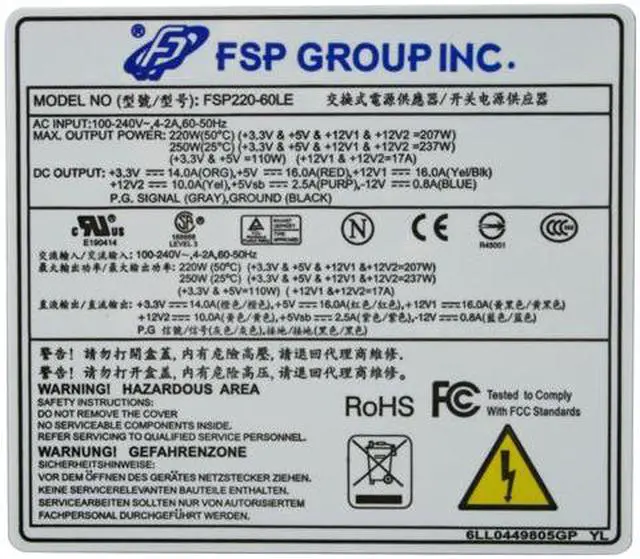

Output
+3.3V@14A, +5V@16A, +12V1@16A, +12V2@10A, -12V@0.8A, +5VSB@2.5A
MTBF
>100,000 Hours
Approvals
UL, NEMKO, TUV, CSA, IEC, CE
Dimensions
5.91" x 3.21" x 1.6"
Weight
3.0 lbs.

Features

Features
Supports AMD/Intel CPU System
220-watt Continuous Output
20mm Cooling Fan System
Thermal Control System Linked To Fan
Energy Saver | 1-watt Standby Mode
High Power Conversion Efficiency
Active PFC | Full Range Input
Energy Saving Calculator

Manufacturer Warranty

Parts
2 years limited
Labor
2 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the FSP Group (Fortron Source) FSP220-60LE(80)

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • scott k.
  • 3/18/2014 9:27:13 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsIn the voice of a French Mars colonist

Pros: Earthlings,

It pleases me to see you considering an energy efficient PSU rather than continuing your wreckless path of self-destruction. You mini-ITX weirdos will be pleased to note that this PSU fits most cases sans modification.

Cons: Underpowered for interstellar travel (if that is your thing).

1 out of 4 people found this review helpful. Did you? Yes No

  • Brian M.
  • 2/3/2014 1:14:02 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorkhorse in my server

Pros: Fits the Slimline 3155 just perfectly. Watch where you screw it into the case--don't use all the holes the case gives you or you will short something inside. That's what I did with my first one and FSP hooked me up with an RMA. It has been running in my server for the last 7 months 24/7 and have had zero issues, even with a couple power outages it hasn't caused me any trouble.

Cons: Can't really think of any cons. Has worked great. I have an 80mm case fan running at about 2400 rpm which is louder than the fan for this unit so although I doubt it is completely silent it is more than fine for a deadhead server that's tucked away somewhere.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 1/27/2014 1:36:41 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsFollow up to my previous review

Pros: I received the replacement unit quickly and it reads perfect voltage across the board, albeit just slightly under as I previously mentioned. The replacement came in an unmarked box, well wrapped, but had no refurbished sticker and appears to be new.

Cons: This has great specs but the wire gauge is just a hair too thin, but still workable. -half egg
Also the replacement unit I received has a shorter ATX connector which will not reach the HP Micro Server motherboard without an extension. It's about 1.5" too short. - half egg
Also, this unit has only 3 molex connectors, the HP requires 4, but I have an extra y-splitter laying around and I'm not installing all four drives, so no big deal.
It reads perfect voltage across the board, albeit just slightly under as I previously mentioned. -half egg

Other Thoughts: I don't like having to buy an ATX extension, but maybe it's just this one. Maybe it is a refurb? It sure looks like new.
As usual, dealing with Newegg is easy.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 10/19/2013 5:26:33 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

2 out of 5 eggsclose, but no cigar

Pros: Fits HP Micro Server G7 perfectly. Claimed 80+ rated, 220W, 16A on 12V. There's some weight to it, for what that is worth.

Cons: Exceeds 990ms limit for the power good signal
11.3V for 12V line is technically within limit, but I'm not satisfied with that. Picky, I know.
20 (or 22?) AWG throughout the trunk, which, for me, is not good enough. IMO, it feels cheap.
Price could be better.

Other Thoughts: I RMA'd this. Pickings are slim for Flex/Mini-ITX PSUs on Newegg.

2 out of 2 people found this review helpful. Did you? Yes No

  • Tyrone R.
  • 10/5/2013 5:19:35 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsFire FIre!

Pros: small perfect size

Cons: Caught on fire when I walked out of the room for a minute.

Other Thoughts: Would RMA but I dont want another fire and there isnt much left of the psu overall. Took what was left over apart to see what happened exactly. My findings: The psu caught on fire..... Maybe it was just a bum one but now my project is set back another 2 weeks for me to find a different one (different company obviously)

6 out of 6 people found this review helpful. Did you? Yes No

  • Robert A.
  • 9/4/2013 9:51:42 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsGood but loud

Pros: Fits in place of custom Inwin case power supply that died.

Cons: Fan was really loud despite loading of only about 130watts. Replaced with quieter one and I am much happier.

1 out of 1 people found this review helpful. Did you? Yes No

  • Brian M.
  • 6/13/2013 6:03:47 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsBummer

Pros: Got good reviews

Cons: The instant I plugged it in a spark flew out the back (plug-side) and the unit does not power on. Now to begin the process of doing an RMA...

Other Thoughts: Depending on how this RMA is handled I'll be revising my review once I receive a replacement that works properly.

2 out of 2 people found this review helpful. Did you? Yes No

  • Stetson S.
  • 6/4/2013 1:09:00 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsDecent PSU- Not for Enclosed Spaces

Pros: Good power. Never stutters.

Cons: Gets a little hotter than I'd like in tight spaces.

Other Thoughts: Bought this for a mini-ITX build i was doing with a fully custom case. The case is a bit of a tight fit for everything. In this situation the PSU gets a little hotter than I'm really comfortable with, but it's still perfectly acceptable. So, if you're doing a really tight build, I'd recommend something a little less powerful.

Did you find this review helpful? Yes No

  • Joobin I.
  • 5/8/2013 8:18:42 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsDOA

Pros: It fits.

Cons: Dead on arrival.

Other Thoughts: Need manual voltage converting function.

1 out of 1 people found this review helpful. Did you? Yes No

  • Karl S.
  • 1/15/2013 2:51:24 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsTwo DOA

Pros: Fits in Case. Cables are short

Cons: Doesn't work. I got first one DOA. Spent $$ for shipping for a repair and second one is DOA. Other power supplies of the same manufacturer work and higher and lower Watts work... Just a bad egg unless New Egg shipped me back the same power supply thinking is was good...

Other Thoughts: Was trying to build a cheap PC and so far paid over $300 for nothing that works. sigh. You get what you pay for.

Manufacturer Response:

Dear Customer

We appreciate your feedback, and very sorry for the inconvenience caused to you. It is unusual for this unit has such issue.

Please email us at info@fspgroupusa.com and let us know about your situation and we would be more than happy to help you out.
Once again sorry for the problem, and thank you for choosing FSP!

Best regards,
FSP Group USA

1 out of 2 people found this review helpful. Did you? Yes No
