Item#: N82E16817104166

FSP Group AURUM XILENSER 500W AU-500FLD ATX12 v2.92 SLI Ready CrossFire Ready 80 PLUS GOLD Certified Active PFC Fanless Power Supply with Intel Hawell Ready

  • ATX12 v2.92
  • 80 PLUS GOLD Certified
  • 110V - 240V 50/60 Hz
  • +3.3V@20A, +5V@20A, +12V1@22A, +12V2@22A, -12V@0.3A, +5VSB@2.5A
ICON Loading...



Overview

image_01

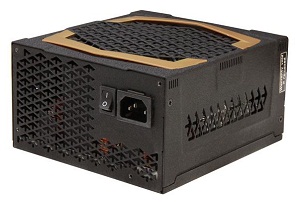

Aurum Xilenser 500W AU-500FLD Power Supply

Aurum Xilenser is 80 PLUS Gold certified with over 90% efficiency, continuing FSP’s unique commitment to energy efficiency with more 80 PLUS certified power supplies than any other manufacturer. The high efficiency and superior passive cooling maintains a low PSU temperature - even under pressure. It is the perfect combination of premium quality and efficiency, making it the ideal choice for those who seek state of the art performance with zero noise. The completely silent and fanless operation makes it the perfect solution for your home theatre PC (HTPC), lab, or studio environment.



Key Features

image_02
  • Supports 4th Generation Intel Core i3 / i5 / i7
  • 80 PLUS Gold Certified
  • Dual +12V Output Circuits
  • Zero Noise: 0dB
  • 99% Active PFC
  • 2 x 6 + 2-Pin PCI-Expres Graphics Card Connector Ready
  • Industrial Grade Components: 100% Japanese Capacitors
  • Thermal Coated (Black) with Gold Crown
  • Complete Protection: OCP, OVP, SCP, OPP, OTP, UVP
  • Multiple Safety Approvals


Output Connectors

connector_01

MAIN 24-PIN x 1

connector_02

PICE-E 8-PIN (6 + 2) x 2

connector_03

4 + 4-PIN EPS x 1

connector_04

SERIAL ATA 15-PIN x 5

connector_05

MOLEX 4-PIN x 4

connector_06

FLOPPY 4-PIN x 1

What's in the Box

What's in the Box




Learn more about the FSP Group (Fortron Source) AU-500FLD

Model

Brand
FSP Group
Model
AU-500FLD
Series
AURUM XILENSER 500

Spec

Type
ATX12 v2.92
Maximum Power
500W
Fans
0
PFC
Active
Main Connector
24Pin
+12V Rails
2
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
5
SLI
SLI Ready
Haswell Support
Yes
CrossFire
CrossFire Ready
Modular
No
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Input Voltage
110V - 240V
Input Frequency Range
50/60 Hz
Input Current
6.0A @ 110 Vrms, 50 Hz.
3.0A @ 240 Vrms, 60 Hz.
Output
+3.3V@20A, +5V@20A, +12V1@22A, +12V2@22A, -12V@0.3A, +5VSB@2.5A
MTBF
100,000 HOURS @ TYPICAL
Approvals
UL, FCC, CB, Nemko, BSMI, CE, GOST
Dimensions
5.9" x 6.25" x 3.38"
Weight
4.81 lbs.

Features

Connectors
1 x 24pin Main Connector
2 x 6+2pin PCI-E
1 x 4+4pin EPS
5 x SATA
4 x Molex
1 x Floppy
Features
COMPATIBLE WITH LATEST INTEL/AMD CPUs

SUPPORTS Intel Core i3/ i5/ i7

ULTRA HIGH EFFICIENCY @ 90%+

DUAL +12V OUTPUT CIRCUITS

ZERO NOISE

99% ACTIVE PFC

2X 6+2PIN PCI-EXPRESS GRAPHIC CARD CONNECTOR READY

INDUSTRIAL GRADE COMPONENT: 100% JAPANESE CAPACITOR

THERMAL COATED (BLACK) WITH GOLD CROWN

COMPLETE PROTECTIONS: OCP, OVP, SCP, OPP, OTP, UVP

MULTIPLE SAFETY APPROVED

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the FSP Group (Fortron Source) AU-500FLD

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Dana T.
  • 8/5/2013 6:22:15 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsDOA

Pros: Completely silent

Cons: Completely dead

Other Thoughts: Clicked a few times, now it doesn't even do that.

Did you find this review helpful? Yes No

  • Donald W.
  • 7/21/2013 5:20:05 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggs

Pros: Great product!!!!!!!!!!

Cons: On the big side. You need to be using a full size case. Pricey

Did you find this review helpful? Yes No
