KINGWIN ABT-600CW 600W ATX 12V Ver.2.2 SLI Certified CrossFire Ready Modular Power Supply
- ATX 12V Ver.2.2
- 115~120 Vac/200~240 Vac
Specs
Reviews
Learn more about the Kingwin Inc. ABT-600CW
| Brand | KINGWIN |
|---|---|
| Model | ABT-600CW |
| Type | ATX 12V Ver.2.2 |
|---|---|
| Maximum Power | 600 W |

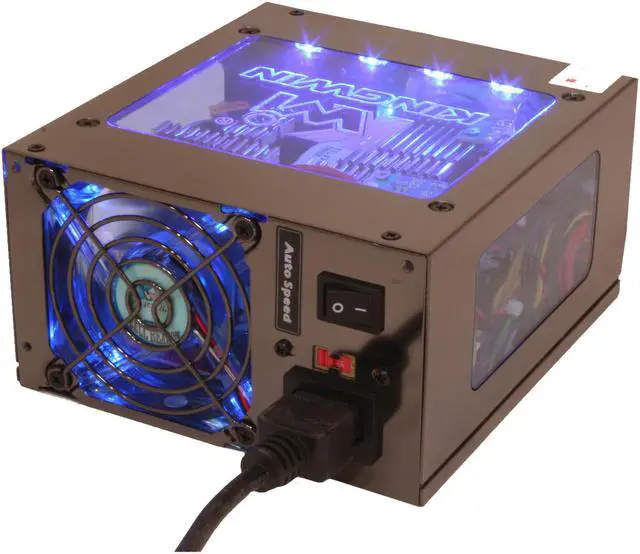

| Fans | 1 x 80mm front blue LED fan 1 x 60mm rear blue LED fan |
| PFC | No |

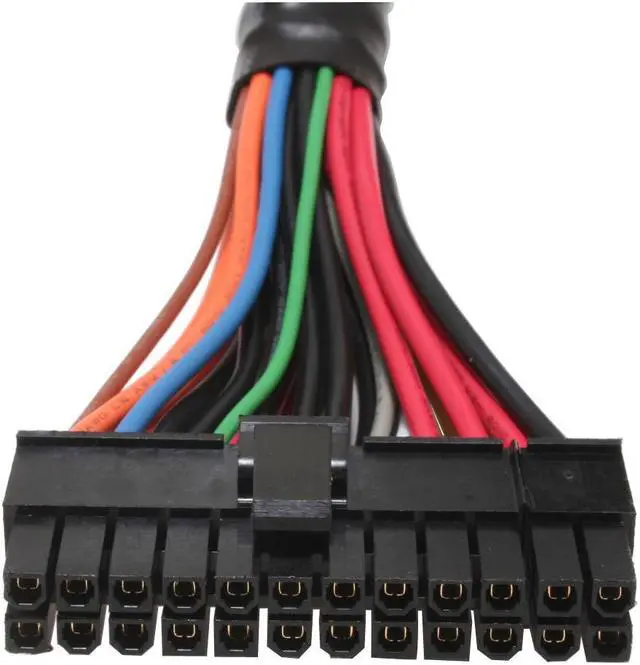

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |

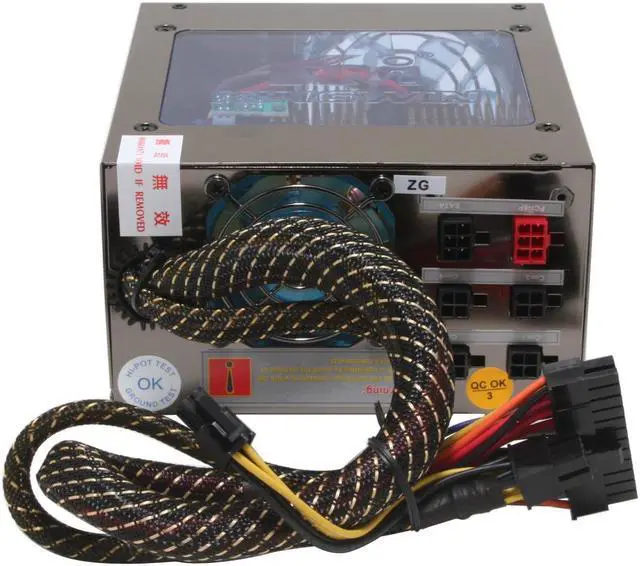

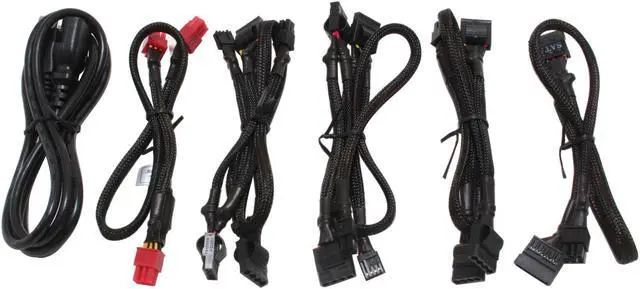

| Modular | Modular type cable management system |
| Efficiency | > 70% |
| Over Voltage Protection | +5V output is between 5.7V to 6.5V/+12V output is between 13.2V to 14.4V/+3.3V output is between 3.7V to 4.1V. |
| Overload Protection | 105%~150% |
| Input Voltage | 115~120 Vac/200~240 Vac |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10.7A@115V/6.2A@230V. |

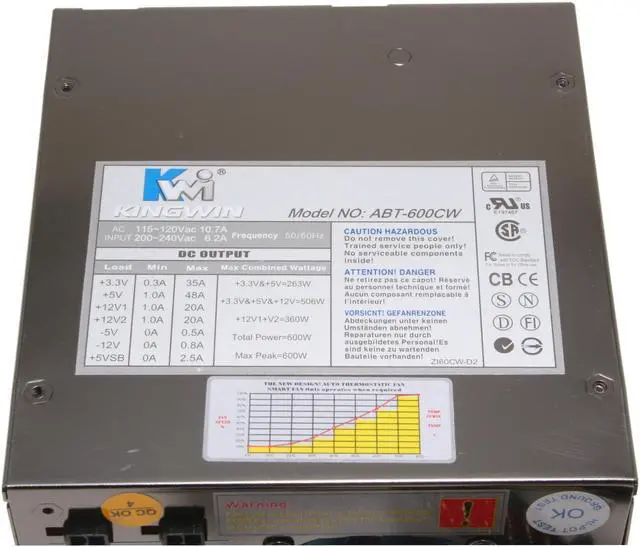

| Output | +3.3V@35A,+5V@48A,+12V1@20A,+12V2@20A, -12V@0.8A,-5@0.5A,+5VSB@2.5A |
| MTBF | >100,000 Hours |
| Approvals | CB, CE, FCC, CSA, UL |
| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 1 x 12V(8Pin) 9 x peripheral 2 x SATA 2 x Floppy 2 x PCI-E |
| Features | Triple Window Design Output gold-coated connector Nickel-Plated Input waveform: Sine wave, modified sine wave or square wave Withstand voltage: Input to output 1800Vac 3 sec/Input to ground 1800Vac 3 sec. Switches: ATX Logic power rocker switch. Support EPS & Intel 945/955 chipset |
|---|
| Date First Available | January 17, 2006 |
|---|
