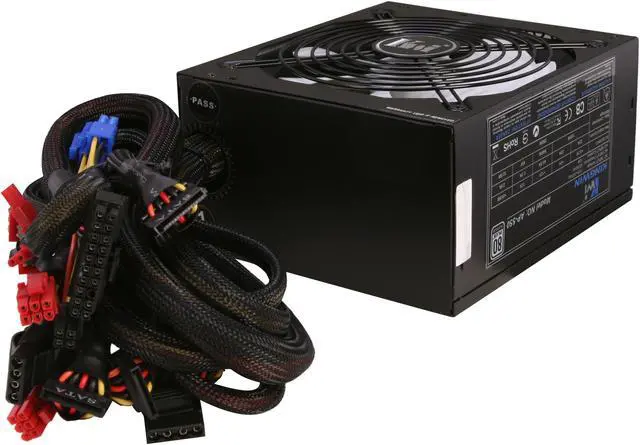

KINGWIN Absolute Platinum Series AP-550 550 W ATX 12V v2.2, EPS 12V v2.91 and SSI EPS 12V v2.92 SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Active PFC Power Supply
- ATX 12V v2.2, EPS 12V v2.91 and SSI EPS 12V v2.92
- 80 PLUS PLATINUM Certified
- 115 - 250 V 50/60 Hz

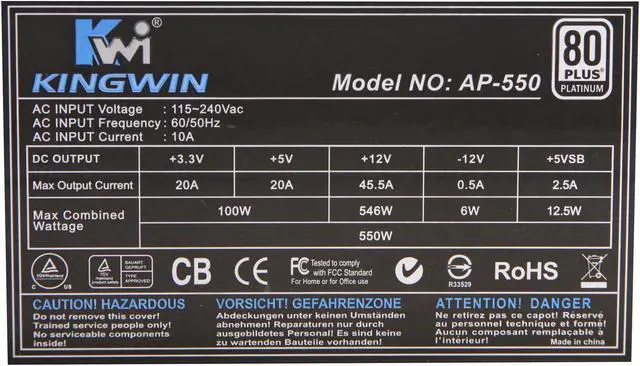

- +3.3V@20A, +5V@20A, +12V@45.5A, -12V@0.5A, +5VSB@2.5A
Overview
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
The Absolute Platinum series was made to deliver absolute power and efficiency. With 80 PLUS PLATINUM certification, the KINGWIN AP-550 has achieved an efficiency rate of up to 92% under 50% load. Kingwin AP-550 also has a 140mm Fan with Intelligent Auto Fan Speed Control for quiet computing. If you want absolute efficiency with supreme performance and quietness, AP-550 will be the weapon of your choice.
80 PLUS Platinum CertifiedThe 80 PLUS Platinum certified power supply provides ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
550W continuous power with Single Strong +12V RailCompliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification, the Kingwin AP-550 is capable of delivering 550W of 80 PLUS Platinum certified, continuous output. A single high current +12V rail @ 45.5A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.

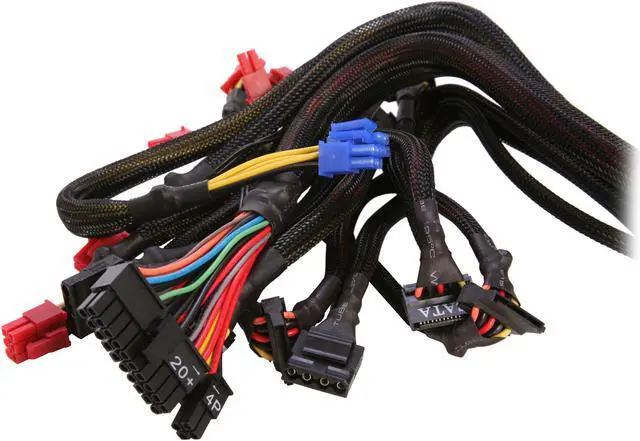

Supports CrossFireX/SLI4 x 6+2-Pin PCI-E connectors are included to support multiple graphic cards in CrossFireX or SLI.

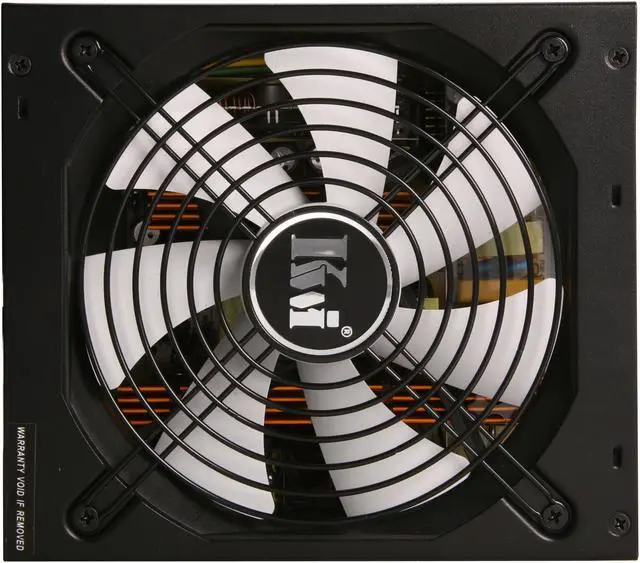

Ultra quiet 140mm FanIntelligent Auto Fan Speed Control on the large 140mm fan ensures exceptional cooling performance as well as minimum noise.
80 PLUS Platinum CertifiedThe 80 PLUS Platinum certified power supply provides ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
550W continuous power with Single Strong +12V RailCompliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification, the Kingwin AP-550 is capable of delivering 550W of 80 PLUS Platinum certified, continuous output. A single high current +12V rail @ 45.5A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.
Supports CrossFireX/SLI4 x 6+2-Pin PCI-E connectors are included to support multiple graphic cards in CrossFireX or SLI.
Ultra quiet 140mm FanIntelligent Auto Fan Speed Control on the large 140mm fan ensures exceptional cooling performance as well as minimum noise.Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-598-2888
- Support Email: techsupport@kingwin.com
- Support Website
- View other products from Kingwin Inc.
