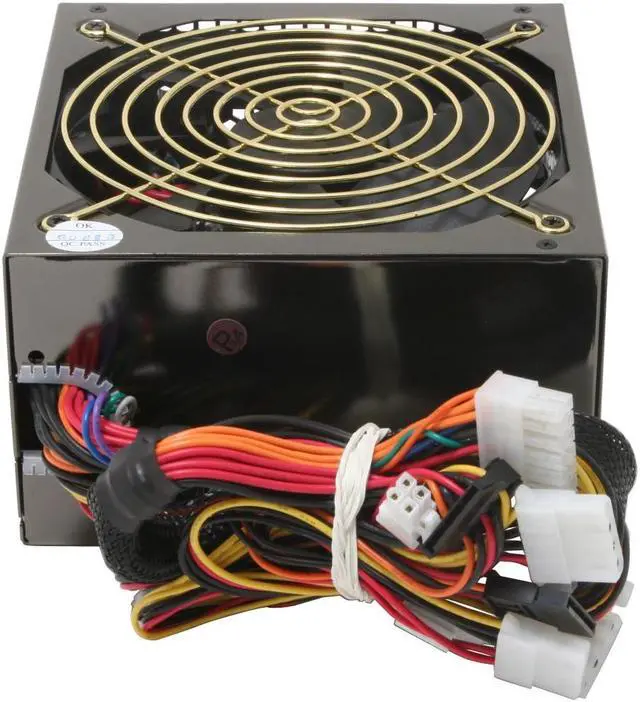

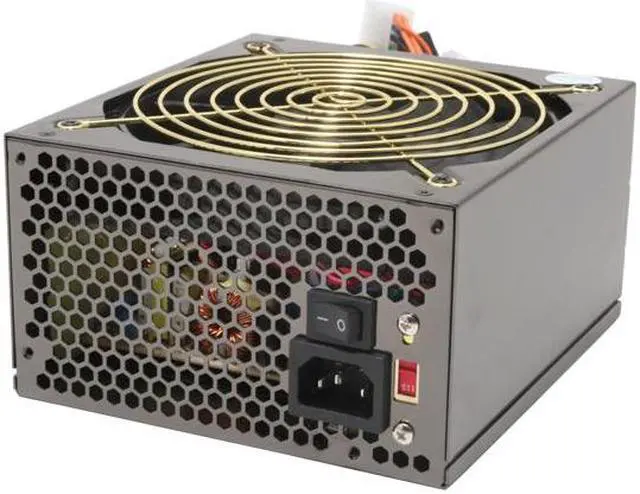

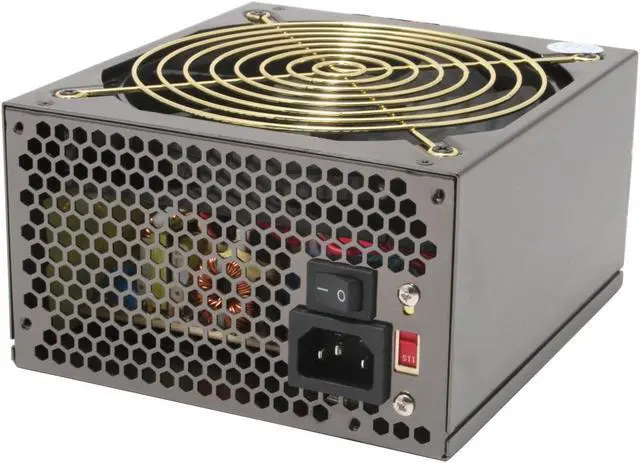

nMEDIAPC Mute Power MP-500 500 W ATX12V Power Supply
- ATX12V
- 115 / 230 V 50/60 Hz
- +3.3V@32A, +5V@38A, +12V1@15A, +12V2@18A,[email protected], +5VSB@2A
Specs
Reviews (30)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the NMEDIAPC MP-500
| Brand | nMEDIAPC |
|---|---|
| Series | Mute Power |
| Model | MP-500 |
| Type | ATX12V |
|---|---|
| Maximum Power | 500 W |
| Fans | 1 x 140mm Dual Ball Fan |
| PFC | No |

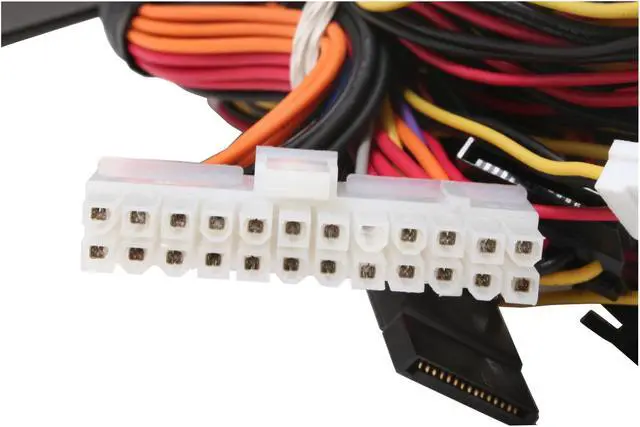

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 1 x 6-Pin |
| SLI | No |
| Modular | No |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16ms min. |
| Efficiency | > 80% |
| Over Voltage Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 7A @ 115V, 4A @ 230V |

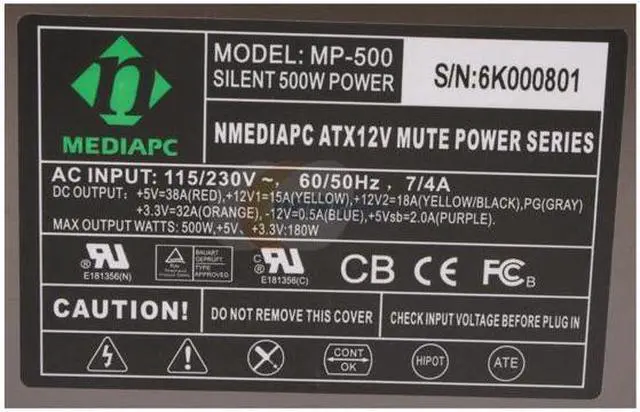

| Output | +3.3V@32A, +5V@38A, +12V1@15A, +12V2@18A,[email protected], +5VSB@2A |
| MTBF | >80,000 Hours |
| Approvals | UL, cUL (Canada UL), CE, CB, CSA, TUV, FCC, CCC |

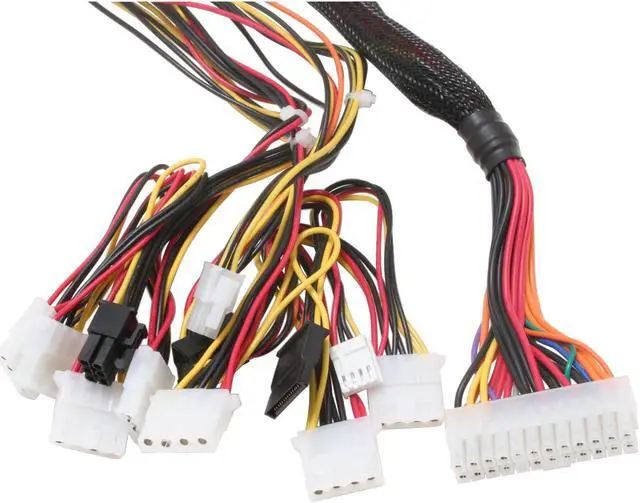

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 7 x peripheral 2 x SATA 1 x Floppy 1 x PCI-E |
| Features | ATX12V Comply with Intel V2.0 & V2.2 Low power consumption on standby (less than 1 W) Super silent design under 25dB Save up to 30,000W one year Fan speed control function inside |
|---|
| First Listed on Newegg | July 03, 2006 |
|---|
