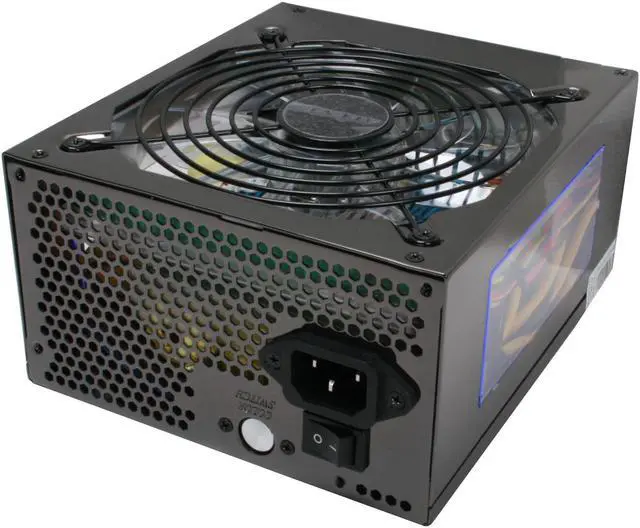

APEVIA WARLOCK POWER ATX-WA1100W 1100 W ATX12V / EPS12V SLI Ready CrossFire Ready Active PFC Power Supply
- ATX12V / EPS12V
- 115 / 230 V 50/60 Hz
- +3.3V@25A, +5V@30A, +12V1@30A, +12V2@30A, +12V3@30A, +12V4@30A, [email protected], [email protected]
Specs
Reviews (63)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the APEVIA CORP. ATX-WA1100W
| Brand | APEVIA |
|---|---|
| Series | WARLOCK POWER |
| Model | ATX-WA1100W |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 1100 W |

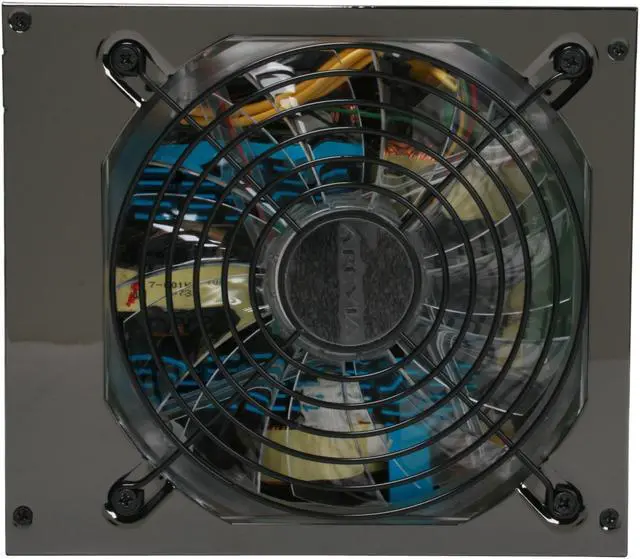

| Fans | 1 x 135mm Changeable Fan Lights |
| PFC | Active |

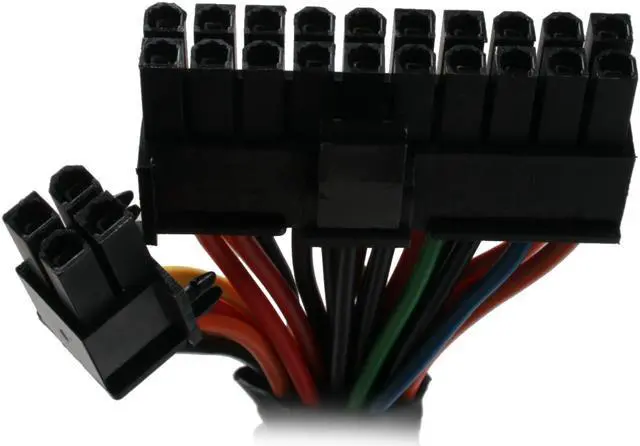

| Main Connector | 20+4Pin |
| +12V Rails | 4 |
| PCI-Express Connector | 2 x 6-Pin, 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Ready |
| Haswell Support | Yes |
| CrossFire | CrossFire Ready |
| Power Good Signal | 100-500ms |
| Hold-up Time | 17ms min. |
| Efficiency | > 80% |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |

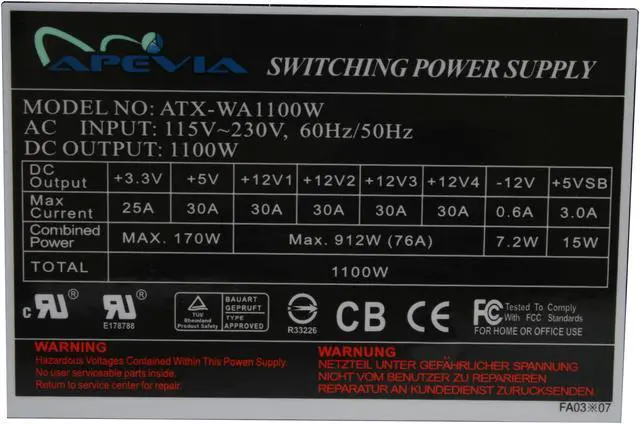

| Output | +3.3V@25A, +5V@30A, +12V1@30A, +12V2@30A, +12V3@30A, +12V4@30A, [email protected], [email protected] |
| MTBF | >100,000 Hours |
| Approvals | CB, CE, TUV, cUL, FCC |

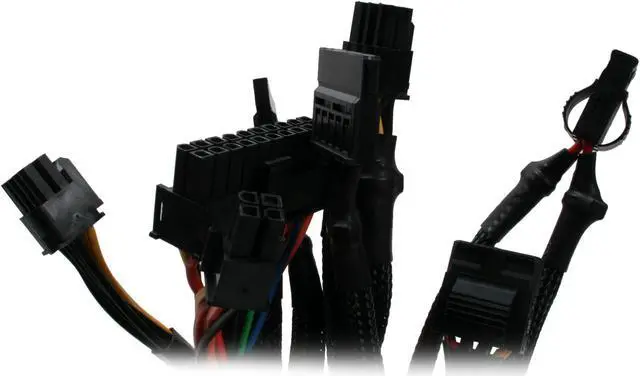

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4/8Pin) 8 x peripheral 6 x SATA 2 x Floppy 4 x PCI-E |

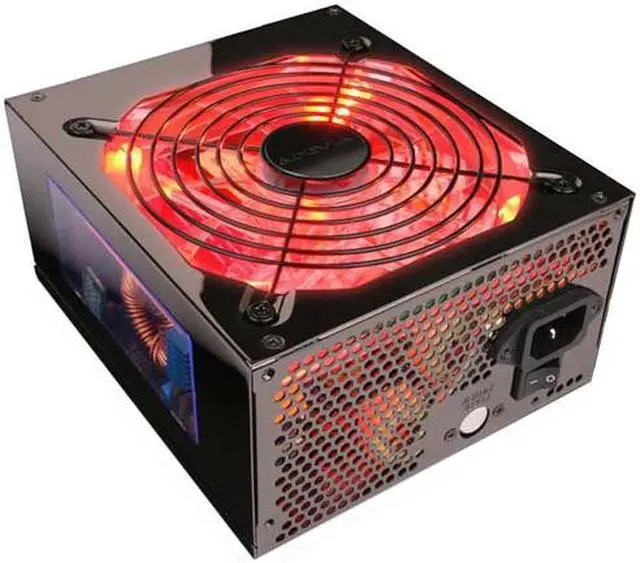

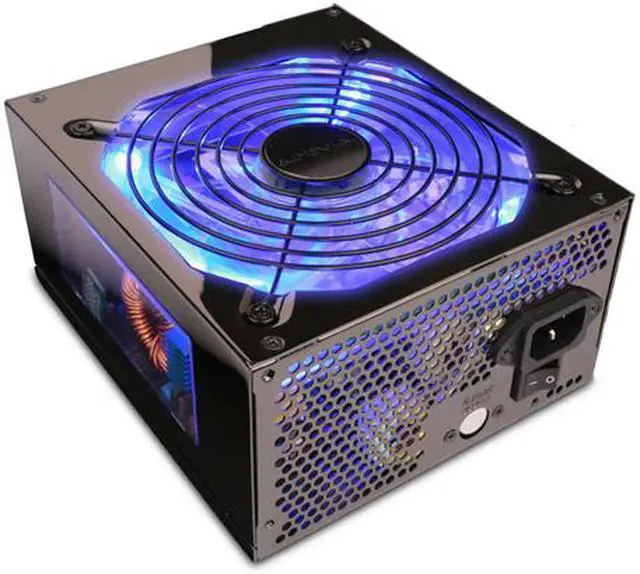

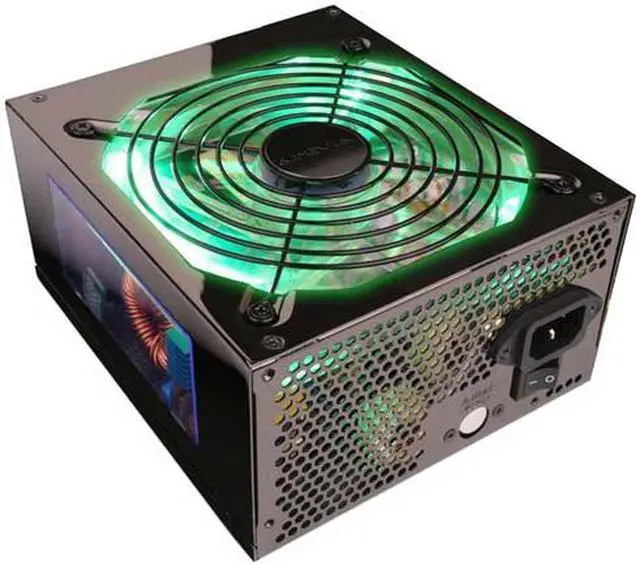

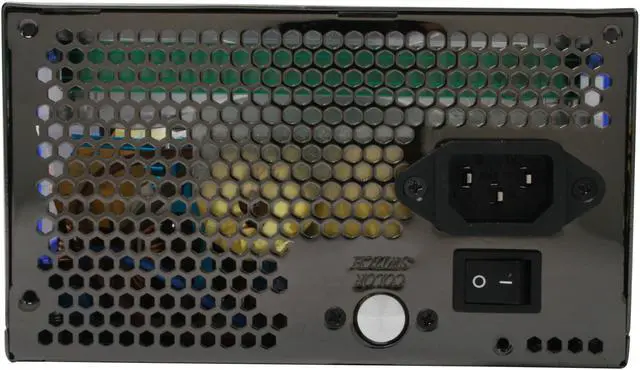

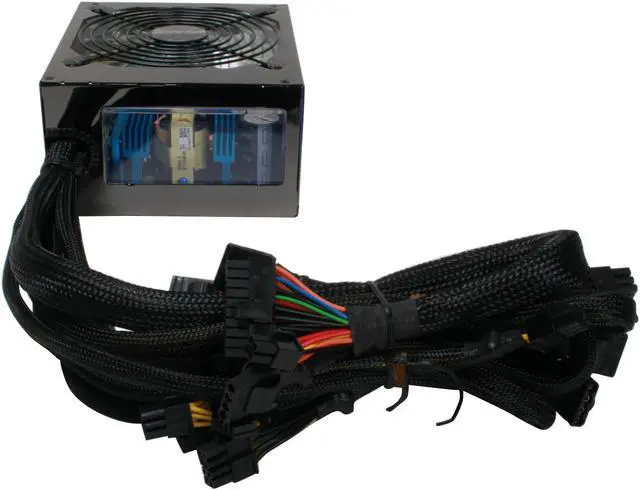

| Features | Three Side See-Through Window with fire-resistant acrylic cover LED light switch - Fan LED lights can be switched to blue, green or red Multi-color coated components & PC board Excellent ventilation design: 1 x135 mm color changeable LED fan Automatically controlled fan speed for necessary cooling Cable management: all cables are sleeved to avoid clutter and to improve airflow UV sensitive On/Off Power switch, power plug and connectors Short circuit / over voltage / over current protection |
|---|
| Energy-Efficient | No |
|---|
| First Listed on Newegg | February 26, 2008 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-718-0789
- Support Email: [email protected]
- Support Website
- View other products from APEVIA CORP.
