| Model |
| Brand |
SeaSonic |
| Model |
SS-500ET |
| Spec |
| Type |
ATX12V V2.2 / EPS12V V2.91 |
| Maximum Power |
500W |

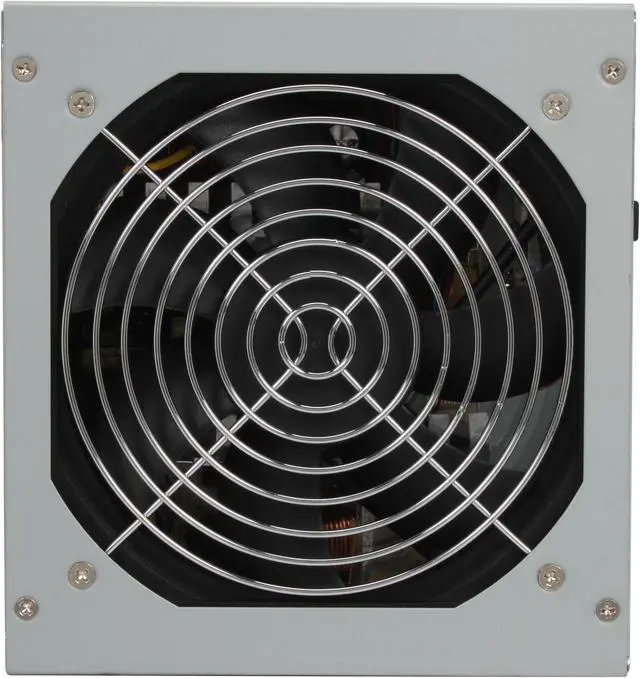

| Fans |
120mm Fan |
| PFC |
Active |

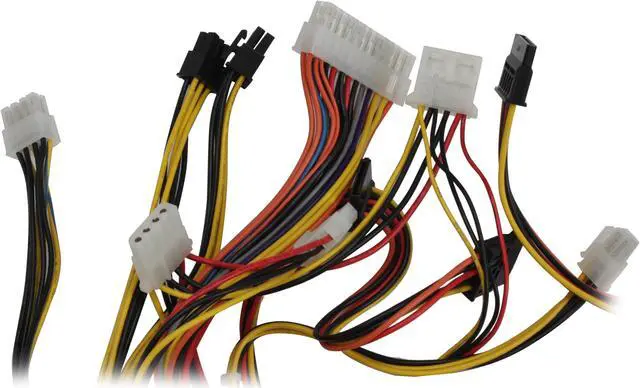

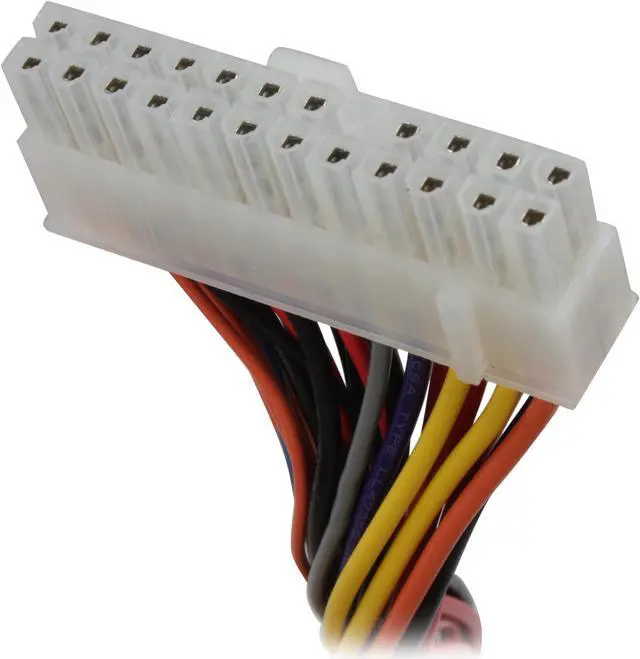

| Main Connector |
20+4Pin |
| +12V Rails |
2 |
| PCI-Express Connector |
2 x 6-Pin |
| SLI |
Ready |
| CrossFire |
Ready |
| Efficiency |
> 80% |
| Energy-Efficient |
80 PLUS Certified |
| Over Voltage Protection |
Yes |
| Input Voltage |
100 - 240 V |
| Input Frequency Range |
50/60 Hz |
| Output |

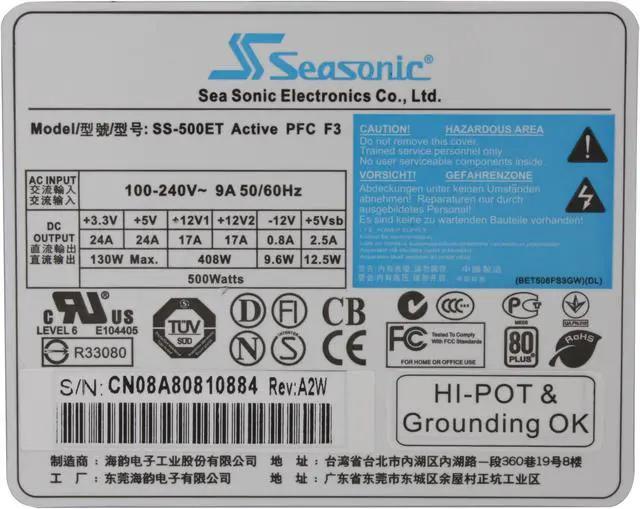

+3.3V@24A,+5V@24A,+12V1@17A,
+12V2@17A,-12V@0.8A,+5VSB@2.5A |
| MTBF |
>100,000 Hours |
| Approvals |
CUL, TUV, CB, UL, CCC, CE, FCC, RoHS |
| Dimensions |
5.9" x 5.5" x 3.4" |
| Features |
| Features |
Support the last Intel & AMD Socket
PCI Express & Serial ATA ready
Double forward converter circuit
High efficiency and reliability
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
100% hi-pot test
100% burn in, high temperature cycled on/off |
| Manufacturer Warranty |
| Parts |
3 years limited |
| Labor |
3 years limited |
|
|
