Item#: N82E16817151084

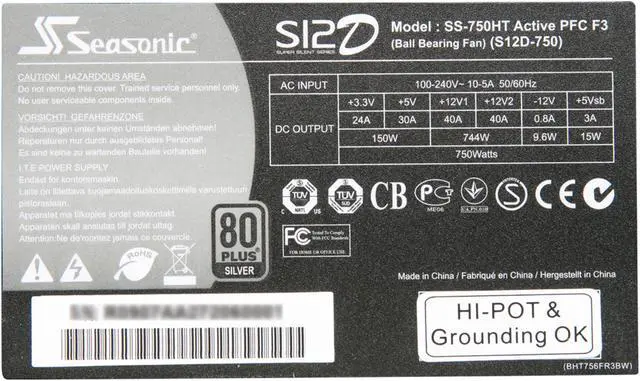

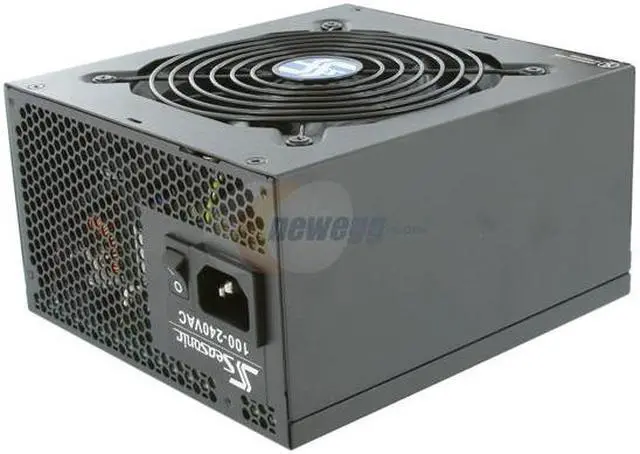

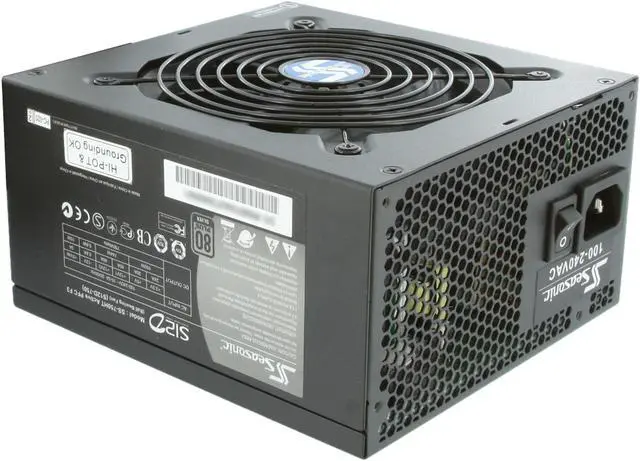

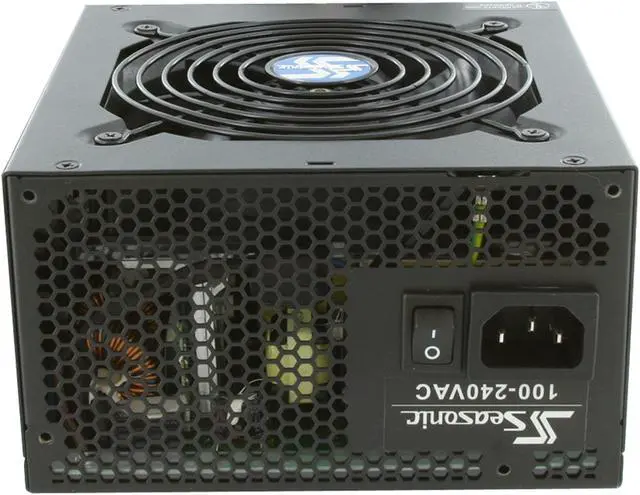

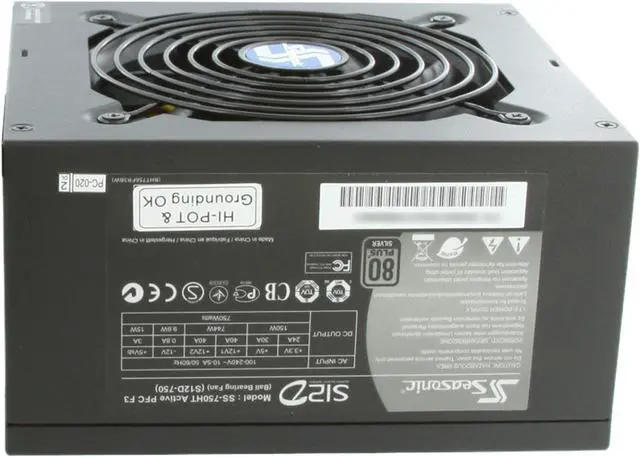

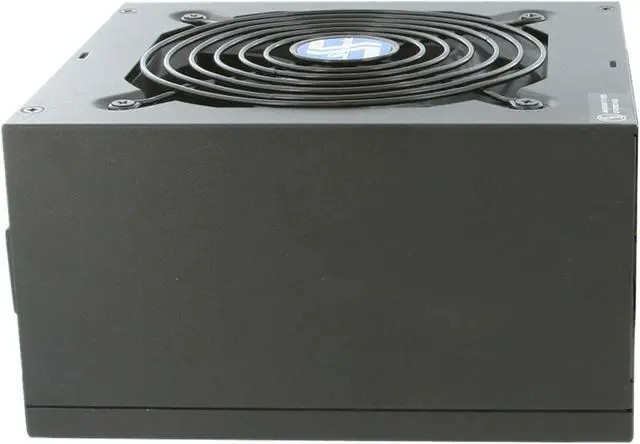

SeaSonic S12D 750 Silver 750W ATX12V V2.3/EPS 12V V2.91 80 PLUS SILVER Certified Active PFC Power Supply

  • ATX12V V2.3/EPS 12V V2.91
  • 80 PLUS SILVER Certified
  • 100 - 240 V 50/60 Hz
ICON Loading...

Learn more about the SeaSonic USA S12D 750 Silver

Model

Brand
SeaSonic
Model
S12D 750 Silver

Spec

Type
ATX12V V2.3/EPS 12V V2.91
Maximum Power
750W
Fans

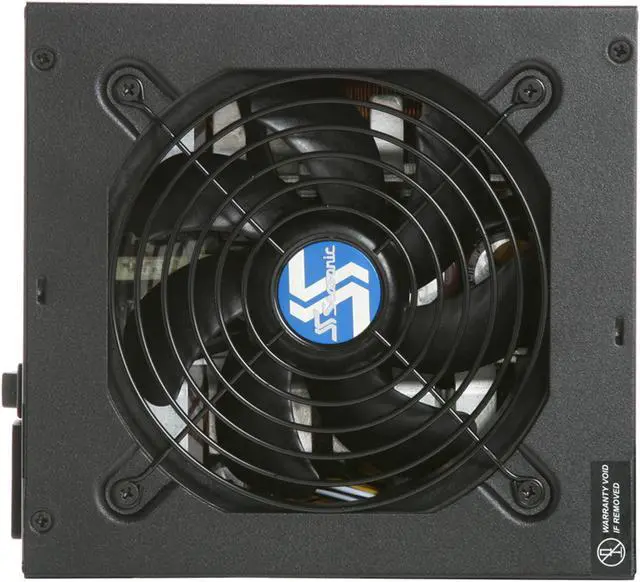

Silent 120mm fan
PFC
Active
+12V Rails
2
PCI-Express Connector
2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector
9
Efficiency
up to 90%
Energy-Efficient
80 PLUS SILVER Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz

Features

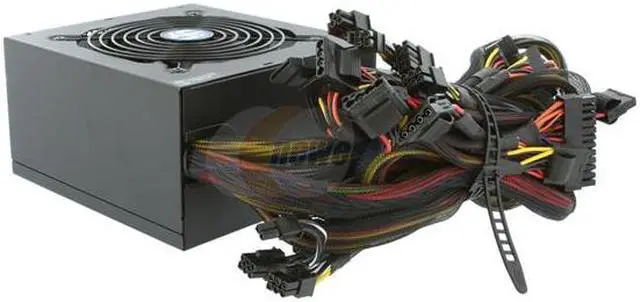

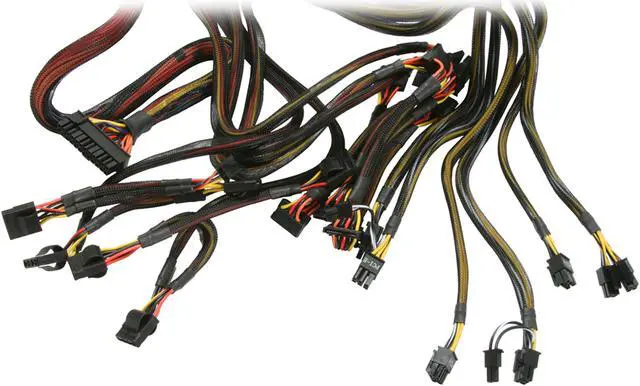

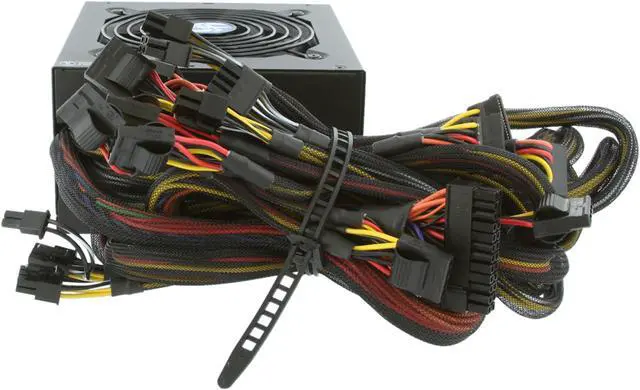

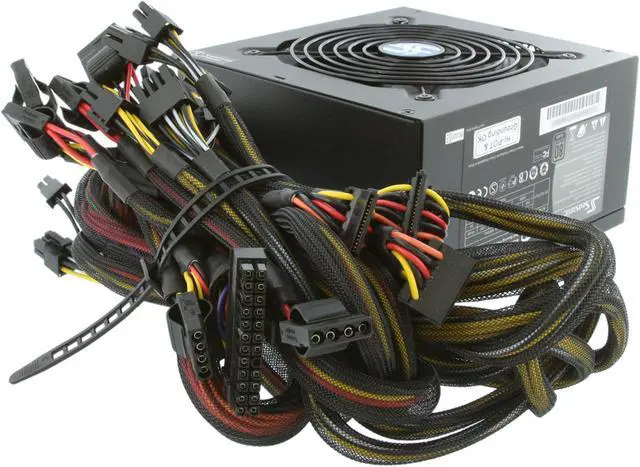

Connectors
1 x Main connector (20+4Pin)
1 x 4-Pin ATX 12V
1 x 8-Pin EPS 12V
6 x Peripheral
9 x SATA
1 x Floppy
4 x PCI-E
Features
DC to DC converter design

Tight Voltage Regulation

High Reliable 105°C Japanese Capacitors

Solid Caps on 12Vs for Extreme Stress Operation Conditions

Dual Sided PCB Layout

San Ace Silent Fan [SANYO DENKI]

Smart & Silent Fan Control [ SFC]

Ultra Ventilation [Honey Comb Structure]

All in One DC Cabling Design

Universal AC Input [Full Range]

Easy Swap Connector

Manufacturer Warranty

Parts
5 years limited
Labor
5 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the SeaSonic USA S12D 750 Silver

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Cameron M.
  • 1/13/2010 10:40:00 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsExcellent

Pros: Highly efficient 90%, 750W with 62A of current available on a pair of 12V rails. SLI/Crossfire ready. Excellent voltage regulation at +/- 3%. Non-modular cabling means no additional problematic interconnects. OEM engineering using high quality parts. Backed by a 5 year warranty. This is a great PSU.

Cons: Price went up $15 dollars when I dithered on buying this.

Other Thoughts: Power usage dropped 40W after replacing my old Enermax (75% efficient). Voltage regulation is spot on at 12.04V (idle to loaded). If you want a technically superior PSU, buy this one now.

Did you find this review helpful? Yes No

  • darin h.
  • 10/13/2009 6:41:55 AM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsNice

Pros: Brand name. Silver 80 plus award. Lot's and lots of cords. Non-Modular plugs.

Cons: Price. Fan is smaller than my old psu. Kinda lighter than I thought. One rail would of been better instead of two.

Other Thoughts: Great power supply. Not pushing it. Overkill for what I am using it for...htpc. But what the heck...I wanted quality. My old PSU had a 140 mm fan while this one is 120 mm. That is my biggest disappointment. It's not as heavy as I thought it would be ether. They say the heavy the better. But still, what do I know. It's a psu with a company with a good rep for psu's. Seasonic even makes psu's for other company's. So if you buy it from the source you can't go wrong.

Also, it is good that these plugs are non module. Contrary to popular belief, module plugs actually create resistance and decrease efficiency.

Also, a few minutes after I opened it my cat chewed on one of the wires. Isn't that great?

4 out of 4 people found this review helpful. Did you? Yes No
