Item#: N82E16817151114

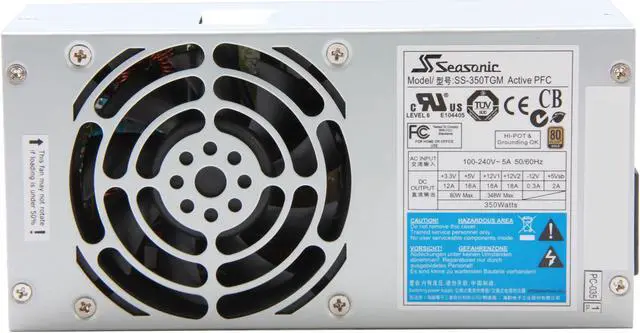

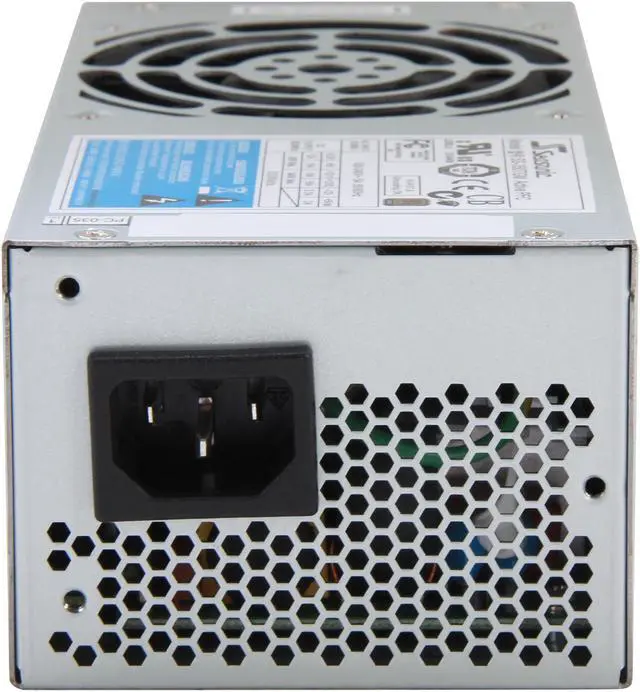

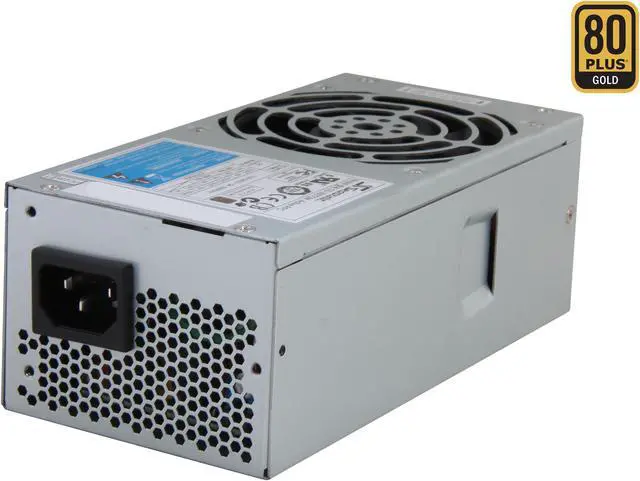

SeaSonic SS-350TGM Bulk 350W TFX12V (v2.31) 80 PLUS GOLD Certified Full Modular Active PFC Power Supply - OEM

  • TFX12V (v2.31)
  • Full Modular
  • 80 PLUS GOLD Certified
  • +3.3V@12A, +5V@16A, +12V1@18A, +12V2@18A, -12V@0.3A, +5VSB@2A
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...

A blend of performance and quality, the Sonic SS-350TGM TFX power supply is a great choice for ultra compact PCs or other small form factor systems. High in efficiency and low in ripple, this unit is 80 PLUS Gold certified for better use of every watt of input AC power. Robust power output means your rig can run stably and reliably, while superb protection circuits help avoid device damage. One quiet fan provides a great air flow so your PSU stays cool, even at demanding load levels.

  • newegg 80 PLUS Gold-certified efficiency The 80 PLUS GOLD certified power supply provides high power efficiency of at least 87% at any load between 20% and 100%, saving your money on your electric bill, reducing heat in your computer's system, and prolonging its life.
  • newegg Robust Power With its DC-to-DC converter design, this unit delivers a robust 350W of maximum power for your rig. Dual +12V rails with 348W maximum combined output provide sufficient juice for your multi-core CPU and power-hungry graphics card. 100% hi-pot test, 100% burn-in test, and high temperature cycled on/off guarantee reliability and stability.
  • newegg Premium Protection Short circuit protection on all outputs, over voltage protection, and over power protection safeguard your valuable components from power abnormalities.
  • newegg Silent Cooling Fan The super low noise fan produces a massive air flow that keeps your PSU running cool and always at peak performance.

Learn more about the SeaSonic USA SS-350TGM Bulk

Model

Brand
SeaSonic
Model
SS-350TGM Bulk

Spec

Type
TFX12V (v2.31)
Maximum Power
350W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
2
Haswell Support
Yes
Modular
Full Modular
Efficiency
> 87%
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Output

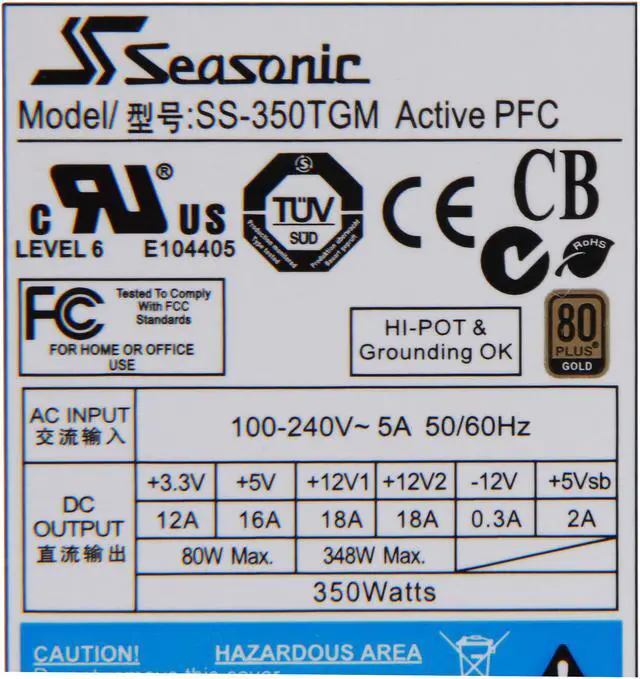

+3.3V@12A, +5V@16A, +12V1@18A, +12V2@18A, -12V@0.3A, +5VSB@2A
MTBF
>100,000 Hours
Approvals
CUL, TUV, CB, CE, FCC, C-tick
Dimensions
6.9" x 3.3" x 2.5"
Weight
3 lbs.

Features

Connectors

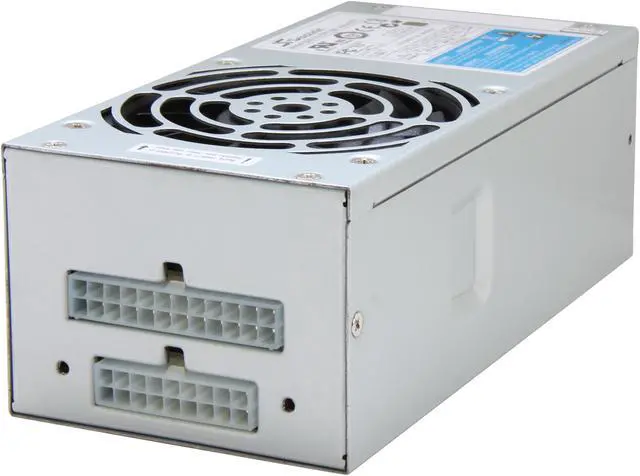

Main Power (24/20P) x 1
ATX12V (4P) x 1
Peripherals: SATA, HDD, FDD
Features
Support the latest Intel & AMD Socket

DC to DC converter design

High efficiency and reliability

Low ripple & noise

Super low noise fan control

Short circuit protection on all outputs

Over voltage protection

Over power protection

100% hi-pot test

100% burn in, high temperature cycled on/off

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the SeaSonic USA SS-350TGM Bulk

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Actonicnet.com H.
  • 6/12/2014 7:26:51 AM
  • Tech Level: Somewhat Low
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsNoisy, Hot and bad modular design

Pros: Plenty of juice for low profile systems. That's all I can say good about it, which allowed me to put a more powerful video card in my HTPC.

Cons: I've had it in a HTPC for almost a year now and I just don't like that modular connection. I am using an InWin HTPC case and there is a fan holder bracket on the side of the case that is right against the inside end of the power supply. For me to use this power supply, it requires me to remove that and prevent me from putting a fan there. So here I am, running a higher watt power supply and a hotter running video card (vs the onboard video especially) and decreased ability to keep it cool because of the modular design. I regularly felt the PC case and it was warm, sometimes hot. I took off the cover and felt the power supply and that was pretty warm, in addition to a warmer running video card...NOT good. I decided that I just can't use this power supply since it runs warm and blocks the use of an additional fan for cooling. I want my HTPC to last a while and this eventually will shorten it's life span I fear due to the heat.

Other Thoughts: See Cons

Manufacturer Response:

Hi Actonicnet.com H.
Thank you for your review. Please note, the TGM power supply was designed to meet most HTPC cases on the market today but since not all HTPC cases are of the same design, there can be slight compatiblity issues.
As for the temperature, the PSU may feel warm to the touch when in operation, it is always important that there is good case cooling & air circulation to any system to run properly, be it HTPC or ATX.
Thank you.

0 out of 1 people found this review helpful. Did you? Yes No

  • Matthew G.
  • 5/5/2014 9:08:24 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSeriously?

Pros: Very Quiet
The fan is off if under 50% load.
Very efficient, the computer I built draws 20 watts when idle.

Cons: NOT modular (see other thoughts)
Wires are barely long enough to reach across a motherboard
Didn't come with a power cord, not that big of a deal for me, but good to know. (probably what "bulk" means)

Other Thoughts: I didn't buy this psu for the modular aspect of it, but I just had to come and write this review because the modular aspect of this psu is such a JOKE.
The wires plug into two "modular" connectors on the psu. But the funny part is there are wires coming out of both plugs that go to the 24 pin connector for the motherboard. So you Need both plugs plugged in just to power up a standard motherboard. Making the modular aspect of this psu completely and udderly redundant (pointless). I can not think of any case where this could be considered modular. I guess it would be helpful if you needed to replace the psu. They would have been better off just not making it "modular" and making it $5 cheaper. I am sorry Seasonic, I have always been a big supporter of you, but to advertise this as modular is just plane senseless.
Don't get me wrong, it is still a great psu.

Did you find this review helpful? Yes No

  • MaryAnn S.
  • 12/28/2012 3:56:34 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week

5 out of 5 eggsYour Best Bet for TFX

Pros: 350W in TFX form factor- Enough wattage to support most entry-level GFX cards and still fit inside those annoying Dell/HP slim cases.

Cons: The wire for the 4-pin connector is 4"-6" too short. I had to run it across the top of the motherboard, which is less than optimal, but will probably be fine. A few more inches and it would have fit cleanly into the existing cable routing/management system within the case.

Tech support over the phone is... informal, to say the least. Otherwise, you're stuck with email communication, as SeaSonic is located in Taiwan.

Other Thoughts: The "modular" plugs are not what most people would consider modular, in that they are a static configuration. It is very nice, however, if you ever need to replace the PSU-- because you can replace the PSU only, and leave the wiring in place.

Also, I was momentarily confused by the second plug that goes into the PSU. There's the 24-pin connector labeled 'Power Supply Side' and then this second 20- or 16-pin connector that also must be plugged in to the PSU. Not a con, just interesting design choice.

1 out of 1 people found this review helpful. Did you? Yes No

  • Charles W.
  • 12/15/2012 10:37:03 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsBig PS in a small package

Pros: Powerful and silent. Seldom have I gotten the fan to spin is at any time besides POST, and this is with a Q8400S 65W Core 2 Quad :) I haven't really loaded it yet, but I'm not worried.

Cons: If I there's a con, it's the extra space taken by the (non modular) modular cable plugs. I'm using an InWin BP series tower, and this made for a tedious upgrade. I had to pull everything but the motherboard/cpu (even memory) to get it done. I also had to separate some of the 24 pin cabling to get past the cpu cooler. It's my first Mini-Itx build, but I've worked crowded builds before.

Other Thoughts: InWin BP series tower
All that 80 Plus Gold certified power :)
Intel DQ45EK Mini-ITX socket 775 motherboard
Q8400S Core 2 Quad CPU (65w)
G.SKILL 4GB (2 x 2GB) F2-8500CL5D-4GBPK
ARCTIC Alpine 11 Rev.2 CPU Cooler
1 TB Samsung F2 Spinpoint HD
ASUS 24X DVD Burner

3 out of 3 people found this review helpful. Did you? Yes No

  • Mike O.
  • 11/18/2012 3:05:37 AM
  • Tech Level: High
  • Ownership: more than 1 year

5 out of 5 eggsBest psu for ITX

Pros: High efficiency = cooler temps, lower power bills. Fan doesnt spin when under certain wattage load, I think around 100-150. Never turns on in my rig unless I'm gaming.

Cons: No cons. About as long as an ITX board and tall as a low-profile graphics card... that's my tiny workstation/gaming machine the size of a book and almost completely silent during normal use (700rpm 120mm fan on CPU is the only moving part)

Other Thoughts: If you do an ITX build and silence and space are top concern, this is your best PSU option. External PSUs are the other option but the biggest one is 160 watts and you have to shop carefully to get an efficient power brick.

With this unit you get the extra wattage headroom if you need it for gaming or heavy use, and silence during normal use, all in a package not much bigger than the size of a large power brick.

5 out of 5 people found this review helpful. Did you? Yes No

  • Aaron F.
  • 9/17/2012 10:11:45 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSilent, Saves Power

Pros: Silent, fan stops when under 50% of load
80+ Gold saves Power

Cons: None

Other Thoughts: I purchased this TFX Power supply to replace an IN-WIN PS that I felt was too noisy for my home server mini-itx chassis. The server is on 7x24 and is near my home theatre, so I had two simple requirements: high power efficiency and low noise.

I am profoundly impressed with how this PS meets these requirements. Idle power draw has dropped from 57 watts to 40, and my server is now completely silent, even under load.

6 out of 7 people found this review helpful. Did you? Yes No
