Item#: N82E16817153059

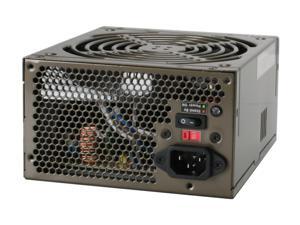

Thermaltake TR2 RX W0134RU 550W ATX12V Ver2.2 SLI Ready Modular Passive PFC PFC Power Supply

  • ATX12V Ver2.2
  • Modular
  • 115 / 230 V 50/60 Hz
  • +3.3V@30A,+5V@28A,+12V1@16A, +12V2@17A,-12V@0.3A,+5VSB@3.0A
ICON Loading...

Learn more about the Thermaltake W0134RU

Model

Brand
Thermaltake
Model
W0134RU
Series
TR2 RX

Spec

Type
ATX12V Ver2.2
Maximum Power
550W
Fans
1 x 140mm fan
PFC
Passive PFC
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
2 x 6-Pin
SATA Power Connector
4
SLI
SLI Ready
Modular
Modular
Power Good Signal
100-500ms
Hold-up Time
8ms(minimum) at 80% of Full Load, at 230Vac input
Efficiency
> 70%
Over Voltage Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
10A @ 115V, 5A @ 230V
Output
+3.3V@30A,+5V@28A,+12V1@16A,
+12V2@17A,-12V@0.3A,+5VSB@3.0A
Approvals
UL, CUL, TUV, FCC and CE certification

Features

Connectors
1 x Main connector (20+4Pin)
1 x 12V(4Pin)
8 x peripheral
4 x SATA
2 x Floppy
2 x PCI-E
Features
Complies with ATX 12V 2.2 Version.
Compatible with latest dual PCI-Express and Dual Core CPU configuration.
Reliable 140mm ball bearing fan.
Modularized cable management improves internal airflow.
PFC function improves energy efficiency.
Super quiet and stable 14cm ball bearing fan.
Gold-plated connector for better conductivity.
Built in industrial-grade Protections: Over Current, Over Voltage, and Short-Circuit.

Manufacturer Warranty

Parts
5 years limited
Labor
5 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Thermaltake W0134RU

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • nancy a.
  • 2/8/2014 8:18:05 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggs

Pros: Good

Cons: None

Other Thoughts: Failed just a few months after warranty expires

Did you find this review helpful? Yes No

  • Shelby B.
  • 8/12/2012 6:38:23 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsBetter than expected.

Pros: Modular, quiet, reliable, powerful. I've had this PSU for a little less than a year and even though you can't buy it on here anymore I figured I'd put in a review anyways.

Cons: Newegg doesn't have them anymore.

Other Thoughts: Didn't get mine at Newegg. I would have but they're out of stock, probably forever which is a shame since I've had such a good experience with this unit. With help from a 2xPCI-e 6-pin to 8-pin and a 2xMolex to 6-pin PCIe adapter this PSU is currently running the following:
Gigabyte Z68XP-UD3 ATX mobo
i5-2500k
GTX 480 (that's right... people told me it couldn't be done)
Two 2.5" HDs (OSX/Win7-64 dual boot)
DVD-R/W optical drive
2 x 4GB Corsair XMS 1333 RAM (8GB total)
Two 12" white cold cathode lights.
All in a Cooler Master Elite 311 case and it's drop dead gorgeous with perfect cable management. What more do you need? If you can find one of these power supplies, buy it!

Did you find this review helpful? Yes No

  • Vikrant T.
  • 9/9/2011 8:27:56 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

3 out of 5 eggsFan failed after 3 years...

Pros: Well, its still working fine on my WHS box 16/7 after 3 years, cable management is very good. 5 Years Warranty.

Cons: Fan started making very loud noise couple of days ago, it looks its bearing worn out and fan is running very slow also, making PSU little hot them I am used to, so I had to shutdown my server till I replace it with other PSU.

Other Thoughts: Core2Duo E8400, 8GB DDR2, ASUS G45 MB, 4 x 2 TB(Raid 5 on ICH 10R), 2 x 640 GB(Raid 1 on ICH 10R).
WHS 2011.
Waiting from Thermaltake for warranty information.

Manufacturer Response:

Hi Vikrant,
We at Thermaltake apologize for the inconvenience this may have caused you. We can replace it under warranty service. Please contact ttsupport@thermaltakeusa.com for warranty instructions.
Best regards,

Did you find this review helpful? Yes No

  • Jerry L.
  • 12/18/2009 1:02:28 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggsVery nice

Pros: Has worked flawlessly with my unit for more then a year. Love the cable management! Very easy to use ONLY what cables are needed! I can not hear my fan! The only way I know it's working is to hold my hand at the outlet. (Bottom mounted in the case, so does not 'breath' case air)

Cons: NONE!! (8 pin 12V plug would be nice, BUT most decent MB with the 8 pin will work fine with a 4 pin! (as with my GA-MA790XT UD4P) Using a 4 to 8 pin adapter does nothing, unless the MB REQUIRES a 8 pin, so NOT a con!

Other Thoughts: The ONLY reason I am replacing it is because I have upgraded my MB, CPU, and memory, and although this is still operating it, may not have the power when I OC with 4 cores. Ordered it's 'big brother', 750W.

Did you find this review helpful? Yes No

  • Anonymous
  • 11/23/2009 11:40:55 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsCaptai! Power has been Restored!

Pros: cost, shiny, material, look, etc

Cons: nothing that i can see

Other Thoughts: a good standard when i build a computer for a client. plenty of power at a great cost from a superb manufacturer

Did you find this review helpful? Yes No

  • Dennis S.
  • 10/21/2009 11:26:10 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsHoped for more.

Pros: Modular and wrapped cables.
Worked great with no issues, while it worked.

Cons: Ordered this 05-09 and it lasted until 10-09. After testing components an another rig I was able figure out that the PSU was the biggest problem. On the back it has an LED that would be red when plugged in but not switched on, and green when running fine. Now it's yellow and the manual makes no mention of the led at all. Not to mention the lack of powering its own cooling fan.

Other Thoughts: RMA issues aside (My fault as I left the box on the floor and we took flood damage), the short life and unhelpful "Indicator light" have drop this down to 3 eggs.
Does anyone have experience with this same problem?

Manufacturer Response:

Dear Customer,
Please contact ttsupport@thermaltakeusa.com for warranty information.
Thank you,

1 out of 1 people found this review helpful. Did you? Yes No

  • Tanner R.
  • 8/3/2009 2:33:31 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

3 out of 5 eggsmediocre

Pros: modular

Cons: not 80+. only 33A on the +12V rails is soft.
price
there are lots of better psu's than this for the money. there are 500W psu's with 40+ amps on the 12V rails. with the new nvidia cards requiring 36amp minimum this psu is just falling short

1 out of 1 people found this review helpful. Did you? Yes No

  • Melissa B.
  • 7/30/2009 10:02:40 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggsGood Quality Modular PSU

Pros: Quality construction (heavy), BIG 140mm fan, modular cable design helps eliminate big mess of unused connectors thus improving air flow in smaller cases, 5 year warranty.

Cons: Not silent, not 80 plus certified, rated amperage on 12 volt rails at bit low for a 500 watt PSU.

Other Thoughts: I really like this power supply. It has a cool finish and is very heavy which is a sign of quality. In my Coolermaster Elite 360 HTPC case, I can hear the movement of air caused by the big fan more than my 80mm and 2 120mm case fans. Perhaps it is due to the design of the vent hole area of my case above where fan is located causing the bit of "wooshing" sound I am hearing. The 12 volt rails are rated at 16 and 17 amps which I believe are a tad low for this wattage of PSU. My cheaper Coolermaster 500 watt PSU was rated at 18 amps for each of its 2 rails but I'm just being picky here. There have been no issues with this PSU so far.

Did you find this review helpful? Yes No

  • Paul s.
  • 5/17/2009 9:17:39 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggssomethin is diein

Pros: nice modular easy to install as with the others i kinda got mad that it doesnt have the 8 pin for motherboards .kinda sucks its made for sli but they left out a important plug .

Cons: had a prob about two months in where i have to hold the power button in fow a few seconds to get it tlo stay running .if i release before power kicks on then kicks off then back on itll just die .mobo is xfx 680 ilt they say its sounds liek power supply.

Other Thoughts: ill be testing with another motherboard thats brand new so if it does it again i know its the powersupply ..hope there guaranties are up to par and they dont give me ahard time.

Manufacturer Response:

Hello DeezNuts,
Please contact ttsupport@thermaltakeusa.com so we can help with the issue you are experiencing.

0 out of 1 people found this review helpful. Did you? Yes No

  • siegfried v.
  • 4/19/2009 7:19:53 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs

Pros: quite-like the plug in cables-good price

Cons: none

Other Thoughts: none

Did you find this review helpful? Yes No
