Question 1

Not sure if it was just me, but all 5 SATA cables didn't fit on my SSD, HDD or optical drive. Did anyone else have this problem?

Accepted Answer

Not at all sir. SATA fits fine for HDD and SSD. Did you check to make sure you are plugging them in right?

Question 2

I have two gpus that use one 6 pin and one 8 pin. Can I use the 4+4 as an 8 and an adapter from molex to 6 pin for the second card?

Accepted Answer

I'm not sure if you can, I used this power supply to build a friends computer and it's only running an Amd GPU. Sorry I couldn't help.

Question 3

Will this Power Supply Unit be good enough to run my computer build? I am fairly new at this and I have already ordered all of the components but I want clarification before I finish assembling the finished product. Power Supply is included with Specifications. Any help or suggestions to power supply would be greatly appreciated.
Specifications:
1 x Evercool EC-DF003 5.9" Multi-Fan Adapter With Speed Reduction
1 x SAMSUNG DVD Burner SATA Model SH-224DB/BEBE - OEM
1 x Cooler Master Sleeve Bearing 120mm Silent Fan for Computer Cases, CPU Coolers, and Radiators (Value 4-Pack)
1 x COOLMAX ZX Series ZX-600 600W ATX12V v2.2 / EPS12V v2.91 SLI Ready CrossFire Ready 80 PLUS Certified Active PFC ...
1 x Corsair Carbide Series SPEC-01 RED LED Black ATX Mid Tower Gaming Computer Case
1 x AMD FX-6350 Vishera 6-Core 3.9GHz Socket AM3+ 125W FD6350FRHKBOX Desktop Processor
1 x Seagate Barracuda ST1000DM003 1TB 7200 RPM 64MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive Bare Drive
1 x GIGABYTE GA-970A-UD3P AM3+ AMD 970 6 x SATA 6Gb/s USB 3.0 ATX AMD Motherboard
1 x G.SKILL Ripjaws X Series 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1866 (PC3 14900) Desktop Memory Model F3-14900CL9D-
1 x Sapphire Radeon VAPOR-X R9 280X 3GB GDDR5 DVI-I/DVI-D/HDMI/DP TRI-X OC PCI-Express Graphics Card with Boost (UEFI) 11221-12-40G

Accepted Answer

This PSU should be more than enough to run your system. The only way this PSU will become inadequate is if you have a CrossFire setup with about five (5) more HDDs.

Question 4

Quick question, why is this so much cheaper than other power supplies with similar wattage?

My friend bought this power supply and when he put a new graphics card in it fried the motherboard and the power supply was dead.

We got a new more properly priced one and replaced it with no problems. I'm just wondering what exactly is it about this PSU that is so cheap?

Accepted Answer

My guess is that much of the reason is the certification of the efficiency. 80 plus is fairly low. If you get a bronze or higher (gold, platinum) the power supplies are more expensive because they have a higher efficiency rating which usually also means better components. Other than that it just comes down to features and quality of components used. Personally I try to never go lower than bronze level certification.

Type	ATX12V v2.2 / EPS12V v2.91
Maximum Power	600 W
Fans	1
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Yes
CrossFire	CrossFire Ready
Max PSU Length	165 mm
Modular	No
Efficiency	Up to 80%
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	Yes
Input Voltage	115V ~ 230V

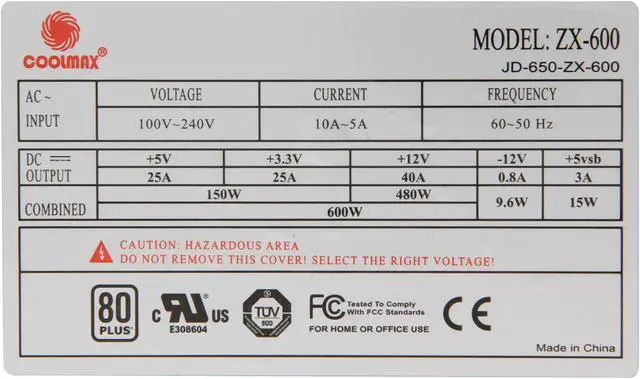

Output	+5V@25A, +3.3V@25A, +12V@40A, [email protected], +5VSB@3A

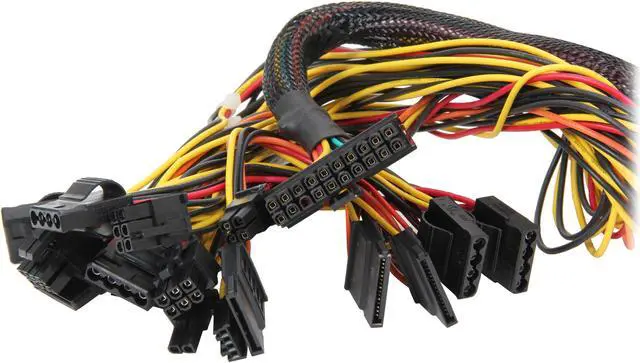

Connectors	1 x 20+4-pin Main Connector 6 x SATA 6 x Peripheral 1 x FDD 1 x 6-pin PCI-E 1 x 6+2-pin PCI-E 1 x 4+4-pin

Dimensions	6.5" x 5.9" x 3.3"
Weight	3.74 lbs.
