Item#: N82E16817163018

POWMAX Demon PSDE580 580W ATX 2.03 Power Supply

  • ATX 2.03
  • 115 / 230 V 50/60 Hz
  • +3.3V@32A, +5V@40A, +12V@24A, -5V@0.5A,
  • -12V@0.8A, +5VSB@2A
ICON Loading...

Learn more about the Powmax PSDE580

Model

Brand
POWMAX
Model
PSDE580
Series
Demon

Spec

Type
ATX 2.03
Maximum Power
580W
Fans
Dual ball bearing fan design for ultra cooling environment
PFC
No
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
No
SLI
No
Modular
No
Efficiency
> 70%
Over Voltage Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
10A @ 115V, 6A @ 230V
Output
+3.3V@32A, +5V@40A, +12V@24A, -5V@0.5A,
-12V@0.8A, +5VSB@2A
MTBF
100K hrs at 25°C ambient conditions
Approvals
UL, CB, CE, TUV, FCC

Features

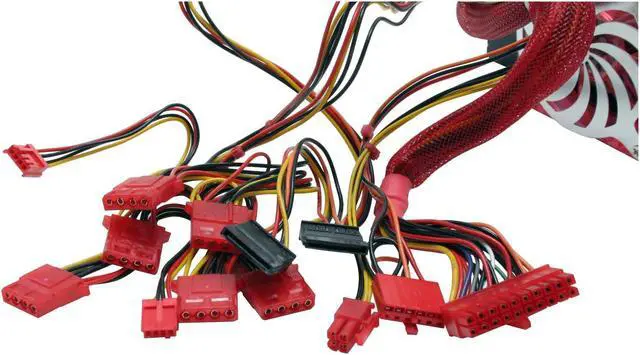

Connectors

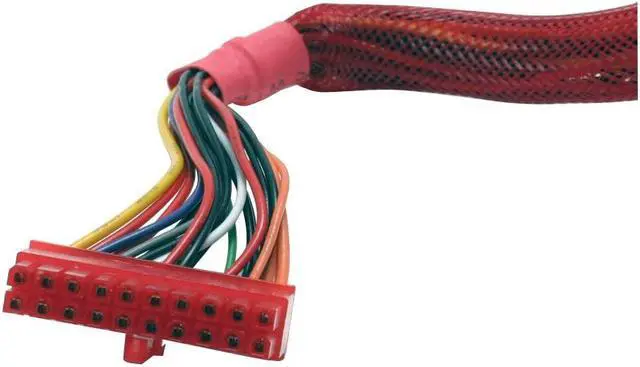

1 x Main connector (20Pin)
1 x 12V (P4)
6 x peripheral
2 x SATA
2 x Floppy
Features
All metal construction, Red LED internal 120mm fan and external 80mm fan with LAZER fan grills
Noise Level : Maximum of 37db at 100% system loading

Quick Info


Customer Reviews of the Powmax PSDE580

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Joseph H.
  • 1/20/2008 2:39:44 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsOk power supply, but not that great

Pros: keeps pretty cool under load, nice and quiet. red leds on fans are cool

Cons: dont buy this ps for a high end system, it just cant handle the load stresses that a more expensive powersupply can handle.

Other Thoughts: Just spend the extra money and get a nicer ps, to avoid the headachs that could come from this ps. you get what you pay for, if you spend less money, expect less quality and preformance.

1 out of 1 people found this review helpful. Did you? Yes No

  • chris s.
  • 1/12/2008 6:54:01 PM
  • Tech Level: Average
  • Ownership: more than 1 year

2 out of 5 eggsget it if u want

Pros: it was a good PS untill i got a new video card 64mb 2 128mb

Cons: when i had my 64mb video card in around 350w total with i put in the 128mb it went POW to the MAX and i was without a power supply for about a week

Other Thoughts: if your video card needs alot of power get top of line or as many watts power supply as you can afford

1 out of 1 people found this review helpful. Did you? Yes No

  • Dadrien R.
  • 1/2/2008 10:37:58 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

2 out of 5 eggs

Pros: It powered my system for a while.

Cons: The PSU died after 3 years. I am actually impressed that it lasted that long, but is cle arly out of warranty.

Other Thoughts: I bought this PSU for a Powmax Demon case back in 2004. It ran for 3 years without problem. Remember that this only has 1x 12V rail, and cannot power most modern systems. The fans died (seized) and that's why it failed. The Powmax fans in the case also died quickly. After replacing them in the PSU for the 3rd time, the PSU finally died. Replaced with a 750W CoolerMaster PSU. You get what you pay for.

Did you find this review helpful? Yes No

  • Anonymous
  • 12/13/2007 7:02:32 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

2 out of 5 eggsAs expected.

Pros: "Evil" appearance, strikes fear =P.
Red led fans are great, and the giant fan underneath helps air flow.
550w isnt bad either, (cept rails kinda are on the low side)

Cons: all my friends, including myself have owned one or owns one. they all said that mostly 1/3 of these things just break during the first few months. they were right.. mine went bye-bye 5 months in, along with to other friends'.

Other Thoughts: i took a chance, and bought it. was great while it lasted. i guess i just got unlucky this time

1 out of 1 people found this review helpful. Did you? Yes No

  • Allen K.
  • 12/7/2007 4:59:55 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggsgreat product

Pros: i have had this in several diffrent computers that are left on 24/7 after 2 1/2 years this thing is still kicking

Cons: none

Other Thoughts: great p.s.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 12/5/2007 6:25:09 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week

1 out of 5 eggsREAD THE SPECS!!!

Pros: There aren't any...

Cons: I got this PSU with a cheap case from another site. That other place did not have an RMA system and this power supply never did work. All the voltages were well below or well above their specs. As far as I know my brother in law still has it, but it's not high on his repair list. Told him he can keep it if I ever gets around to it.

Other Thoughts: The specifications read that there is only ONE 12 volt rail. TOTAL POWER MEANS VIRTUALLY NOTHING. It is the number of 12 volt rails that counts the most. People have had this power supply blow because they have seen the total power and not looked at the rails. They've been trying to power gaming systems with a non-gaming PSU!!!

0 out of 1 people found this review helpful. Did you? Yes No

  • Anton D.
  • 12/1/2007 1:41:16 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsPretty

Pros: Nice lights, moves air real well, low price.

Cons: All voltages read low, except 5V it reads high. Sata plugs on the wrong end of power cable, won't reach my harddrive cage.

Other Thoughts: It'll do untill I upgrade my video card. It seems to run my AMD 5200, 2 gig af ram, 3 IDE harddrives, 3 led casefans and 2 256 Mb video cards ok. But I would'nt want to add anything else without taking something out.

Did you find this review helpful? Yes No

  • chris b.
  • 11/29/2007 4:47:23 PM
  • Tech Level: Low
  • Ownership: more than 1 year
  • Verified Owner

1 out of 5 eggsSTEER CLEAR! FAIR WARNING!

Pros: It blew up after 4 days. COMPLETE WASTE. Looks pretty in its picture though.

Cons: IT DOES NOT WORK. It blows out under any "gamer" load whatsoever. If you're not a gamer, you won't care what it looks like, because your case is not transparent.

Other Thoughts: Went through old invoice and was curious if they still offered this for sale. DO NOT BUY THIS!

0 out of 1 people found this review helpful. Did you? Yes No

  • John L.
  • 11/28/2007 10:47:00 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsRandom Restarts...Random Restarts...Random Restarts!!!

Pros: overall, this thing is terrible! >:O!!! @#$%*!!
remove the red fans when you trash it. You can keep those.

Cons: It blew up on me after 2 weeks. (totally fried)
Before that, however... It was always very hot. It smelled burning once or twice. It's very light...too light for a 580W supply in my opinion.
Many complaints...looks like I'm not alone.

Other Thoughts: Don't you dare use this for a very expensive system...high end gfx, cpu, etc...a big no no. This thing is literally the fire-ball of power supplies. I've heard worse. Maybe the name really did give this thing bad-luck, because they suck.

The red light is so bright it'll turn your room into a gateway to hell when the lights are off. (kinda cool actually, LOL) I stripped the fans out before I trashed it...I can still use those babies, haha...

Did you find this review helpful? Yes No

  • Ryan L.
  • 11/28/2007 3:12:21 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

3 out of 5 eggsWorked for a while

Pros: Worked well for a while. Pretty red light. Powered my high end video card.

Cons: HOT. It was the hottest part of my system. Died after about a year, which it sounds is better than a lot of people had luck with.

Other Thoughts: Spend a little more money and get something a little nicer, in the end you'll be much happier

Did you find this review helpful? Yes No
