Item#: N82E16817182065

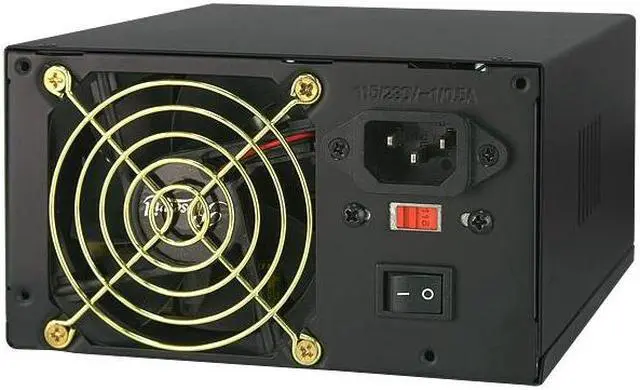

Rosewill RV480-2-FRB-S 480W ATX 12V Ver.2.01 Power Supply

  • ATX 12V Ver.2.01
  • 115 / 230 V 50/60 Hz
  • +3.3V@30A,+5V@28A,+12V1@14A,+12V2@15A, -12V@0.6A,+5VSB@2.0A
ICON Loading...

Learn more about the Rosewill RV480-2-FRB-S

Model

Brand
Rosewill
Model
RV480-2-FRB-S

Spec

Type
ATX 12V Ver.2.01
Maximum Power
480W

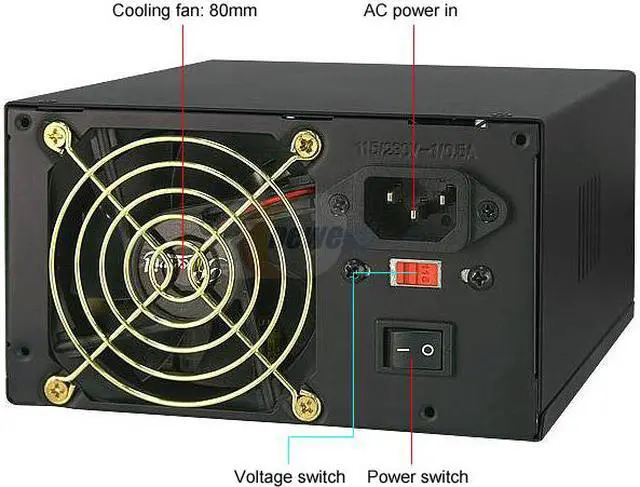

Fans
Dual 80mm Fans
PFC
No
Main Connector
20+4Pin
+12V Rails
Yes
PCI-Express Connector
1 x 6-Pin
SLI
No
Modular
No
Hold-up Time
17ms min.
Efficiency
> 70%
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
6.0A (RMS) for 115VAC input ; 4.0A (RMS) for 230VAC input

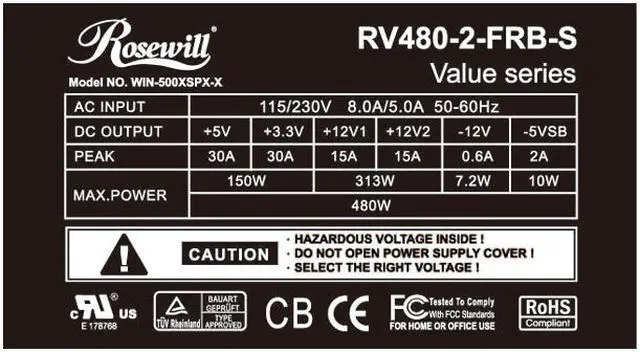

Output
+3.3V@30A,+5V@28A,+12V1@14A,+12V2@15A,
-12V@0.6A,+5VSB@2.0A
MTBF
100,000 hours at 25°C ambient temperature
Approvals
UL, cUL, CB, TUV, CE

Features

Connectors

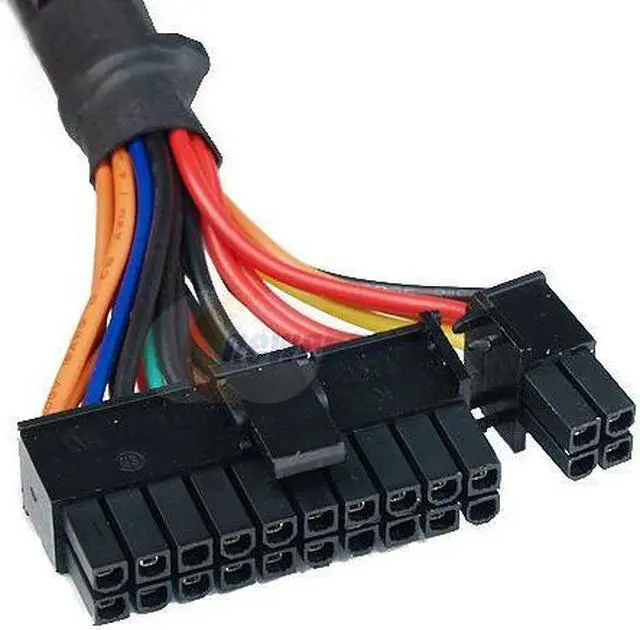

1 x Main connector (20+4Pin)

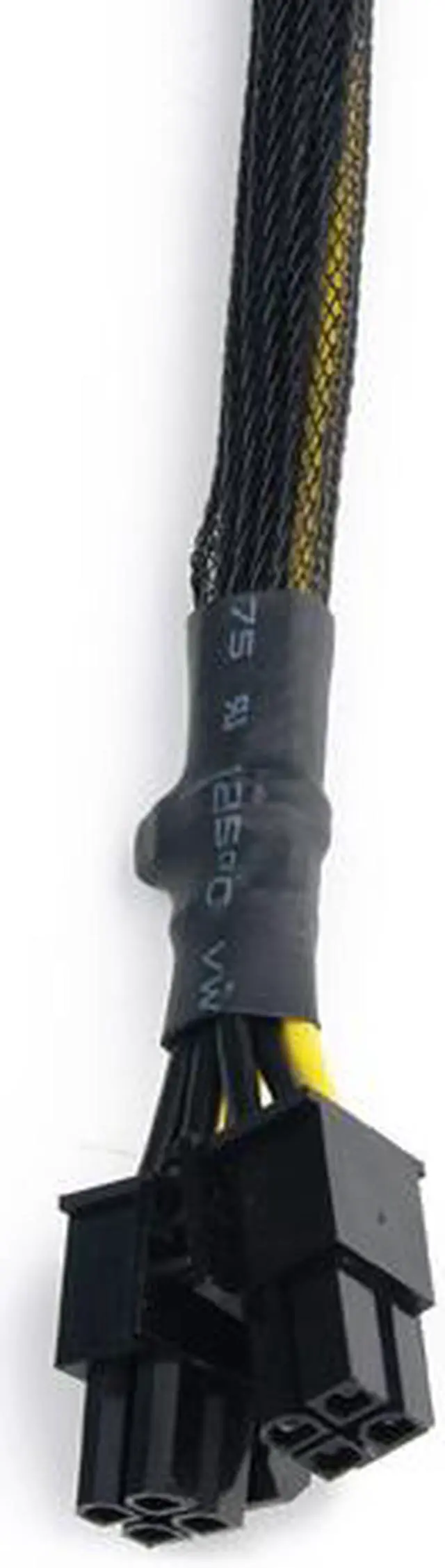

1 x 12V(4+4Pin)
6 x peripheral (Molex Connector)
2 x SATA
2 x Floppy
1 x PCI-E
Features
ROHS Compliant
All Molex connector
Case plated with smoke black nickel

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Rosewill RV480-2-FRB-S

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Alan M.
  • 6/28/2007 4:28:22 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsworkes great

Pros: power cables have sleeving done at the factory. It puts out good constant power, and for the price its hard to beat

Cons: The only problem i found was that the power cables are very long and the SATA connectors are on the same power leg which can make some installs tighjt if you have a SATA DVD and a SATA HD

Other Thoughts: I have never had any problems with this brands products.

Did you find this review helpful? Yes No

  • Steve C.
  • 6/26/2007 5:37:38 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSo far so good

Pros: Got this on the cheap but I have my AM2 3600 running 2.95 gig and it is holding 11.8 on the 12V rail...not bad. I have had some really good experiences with rosewill and this has been very good as well.

Cons: Wasn't free??

Other Thoughts: If you are on a budget...this is nice. No goofy stickers to be seen in your window and all the wires are loomed...nice

Did you find this review helpful? Yes No

  • Anonymous
  • 6/22/2007 6:44:43 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsvery nice

Pros: Power supply is really nice, the extra power is needed for my extra hard drives, fans, ect.

Cons: cables are too long. 3 times longer than my old power supply, and I believe I got the wrong supply because this one has 8 peripherials, and description stated 6, but it works great. I like having 2 sata power plugs.

Other Thoughts: Although its bulky, its worth double the power, being that there's 2 power supplies in one, its well worth the effort! Now lets wait and see how long it runs. I advise EVERONE who buys computer parts, like memory, drives, mobo's, power supplies, anything electric, GET THE EXTENDED WARRANTY. Its worth the 10-20 bucks for extra years of protection.

Did you find this review helpful? Yes No

  • Anonymous
  • 6/21/2007 1:44:22 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsAmazing PSU

Pros: FOR the price you CANT go wrong. The power supplies at a retail store that rhyme with nest buy, are 70 dollars for some cheasy grey hunk of metal. This has fully braided cables 30amp max 12volt rail which isnt bad and the cables where they plug into the devices are really quality. I like this PSU A LOT and will buy plenty more in the future.

Cons: None at all, they should probably charge more for this power supply honestly.

Other Thoughts: NICE quality, good power.

Did you find this review helpful? Yes No

  • Andrew O.
  • 6/18/2007 7:39:08 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsNice!

Pros: Very impressive housing and cabling. Cables have a plastic mesh, keeping them protected and together. For $30, there's no way this can be beaten!

Cons: Definitely take note of the non-standard length of this unit. Be sure you look at your case an ensure that it'll fit.

Did you find this review helpful? Yes No

  • Asa T.
  • 6/7/2007 3:57:07 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsClean PSU

Pros: Very decent cabling, everything was wrapped, and terminated to lenght! I used my tester to check the voltages and everything was in place.

Cons: the CPU 4/8 pin connector was a little close to each other

Other Thoughts: I'm pretty happy with the PSU, its very ascetically pleasing and it works.

Did you find this review helpful? Yes No

  • John D.
  • 5/11/2007 7:48:23 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggsSWEET

Pros: Easy install. Well wrapped cords and plenty of them.
Even with 2 fans I can't even hear it. Way better than I expected for the price.

Cons: NONE

Did you find this review helpful? Yes No

  • Jay Y.
  • 4/10/2007 3:12:44 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSo far so good

Pros: Seems to be stable. I needed an 8 pin cpu power plug and this ps fit the bill. Solid and heavy.

Cons: Cables are VERY long and cumbersome especially if neatness matters, but I guess I managed to hide them ok.

Other Thoughts: Should anything change I will write a follow-up as I plan on buying a core 2 after the upcoming price drop. System specs. Foxconn P9657AA-8EKRS2H Mobo – 2x1Gb Kingston ddr 667 ram - Evga Nvidia 7600gs - Celeron 2.66 GHz - Segate 320Gb HD - Samsung 18x SATA DVD Burner

Did you find this review helpful? Yes No

  • Anonymous
  • 4/10/2007 12:54:54 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

5 out of 5 eggsNice PS for the money

Pros: This power supply works very well. Sturdy. Long meshed power cables. Dual cooling fans. Output holds under load.

Cons: None

Other Thoughts: I am glad I bought this thing. I will be buying more for my other PCs as I need them.

Did you find this review helpful? Yes No

  • Devon L.
  • 4/4/2007 5:41:42 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsaddon to previous

Pros: Read below review

Cons: Read below review

Other Thoughts: Here are the dimensions I have measured, make sure you have room for it in your case.
(LxWxH)
170mm x 150mm x 87mm

Normal ATX12V 2.01 is supposed to be...
146mm x 150mm x 86mm according to formfactors.org.

0 out of 2 people found this review helpful. Did you? Yes No
