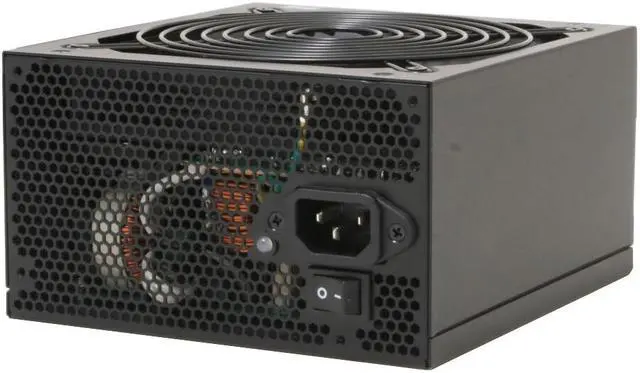

XCLIO STABLEPOWER 1000W 1000W ATX CrossFire Ready Active PFC Power Supply

(12) Write a Review
  • ATX
  • 115/ 230 V
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (12)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the XClio STABLEPOWER 1000W

General
Brand XCLIO
Model STABLEPOWER 1000W
Details
Type ATX
Maximum Power 1000 W
Fans 1 x 14cm
PFC Active

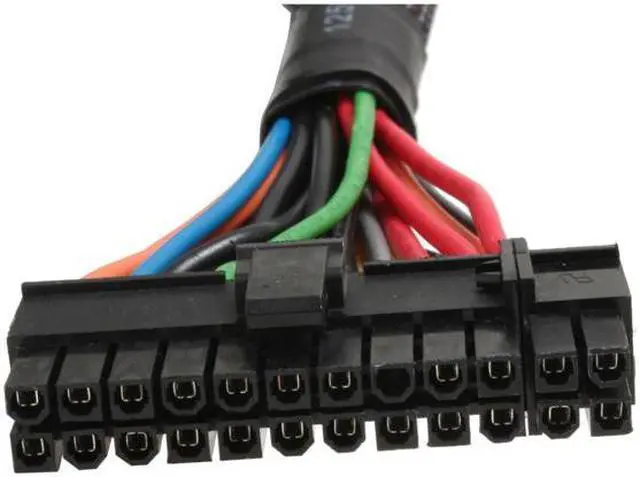

Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 4 x 6-Pin
SATA Power Connector 8
CrossFire CrossFire Ready
Modular No
Power Good Signal 100-500ms
Hold-up Time 17ms min.
Efficiency 80% under full Load at nominal input voltage
Over Voltage Protection YES, +3.3V, +5V and +12V.
Overload Protection YES, +3.3V, +5V.
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 12A @ 115V, 6A @ 230V

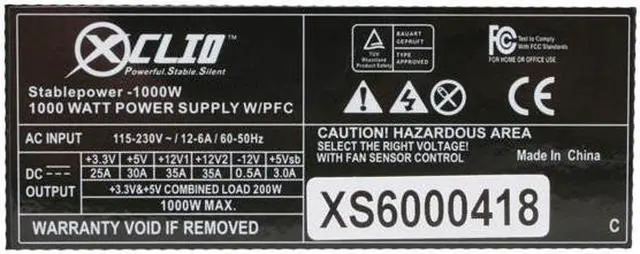

Output +3.3V@25A, +5V@30A, +12V1@35A, +12V2@35A, -12V@0.5A, +5VSB@3.0A
MTBF 100K hrs minimum, 25°C ambient
Approvals UL, CUL, TUV, CB, VDE, FIMKO, DEMKO, NEMKO, SEMKO

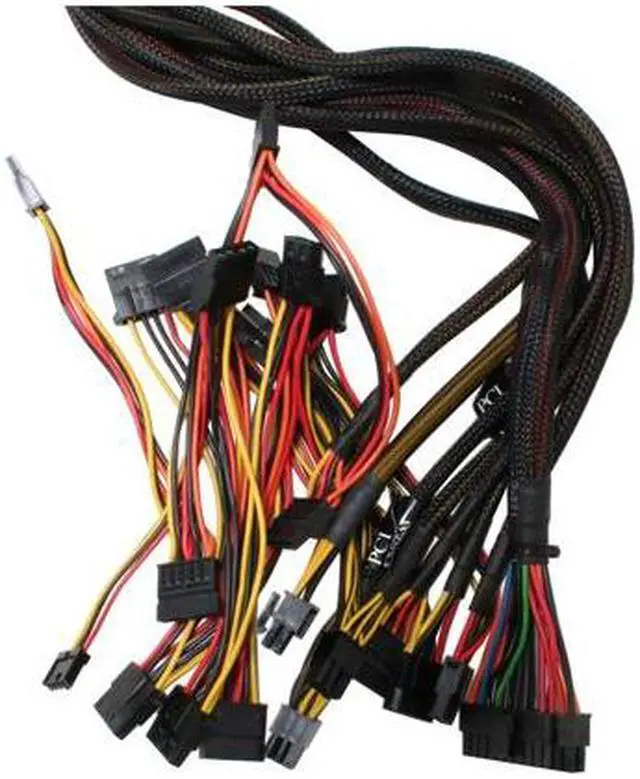

Connectors 1 x Main connector (20+4Pin)
1 x 4+4 12V (P4)
8 x peripheral
8 x SATA
1 x Floppy
4 x PCI-E
Features
Features 1. Maximum continuous total DC output power should not exceed 1000W for STABLEPOWER 1000W
2. Maximum continuous combined load on +3.3 VDC and +5 VDC outputs shall not exceed 200W for STABLEPOWER 1000W
3. Maximum peak total DC output power should not exceed 1100W for STABLEPOWER 1000W
4. Peak power and current loading shall be supported for a minimum of 12 second.
5. Maximum combined current for the 12 V outputs shall be 70A.
6. Peak current for the combined 12V outputs shall be 70A.
Dimension & Weight
Dimensions 5.9" x 6.3" x 3.38"
Additional Information
First Listed on Newegg November 01, 2006
