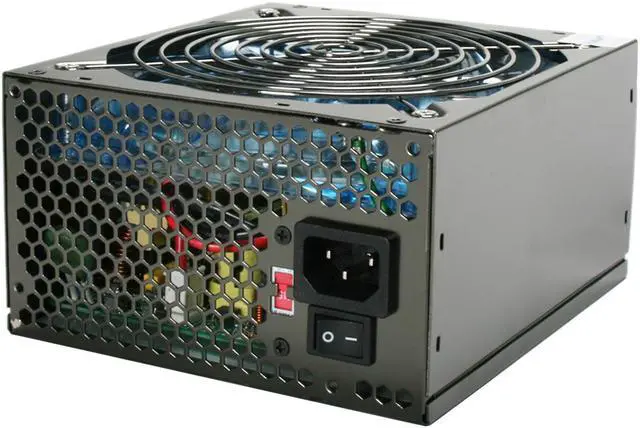

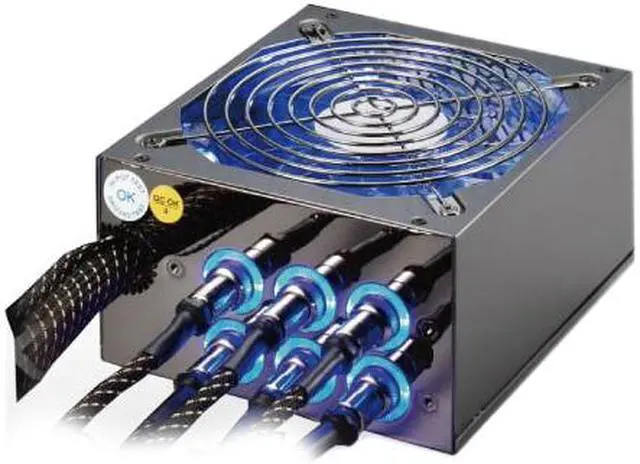

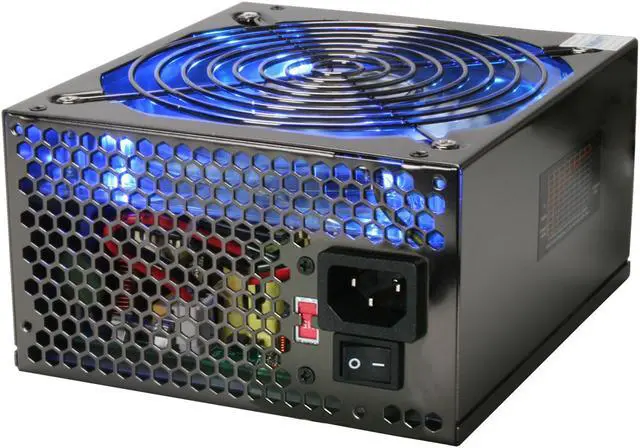

XION Supernova XON-800R14N 800 W ATX12V / EPS12V SLI Certified CrossFire Ready Modular Power Supply
- ATX12V / EPS12V
- Modular
- 115 / 230 V 50/60 Hz
- +3.3@24A, +5V@30A, +12V1@18A, +12V2@18A, +12V3@18A, + 12V4@20A, [email protected], [email protected]
Specs
Reviews (82)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the XION XON-800R14N
| Brand | XION |
|---|---|
| Series | Supernova |
| Model | XON-800R14N |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 800 W |

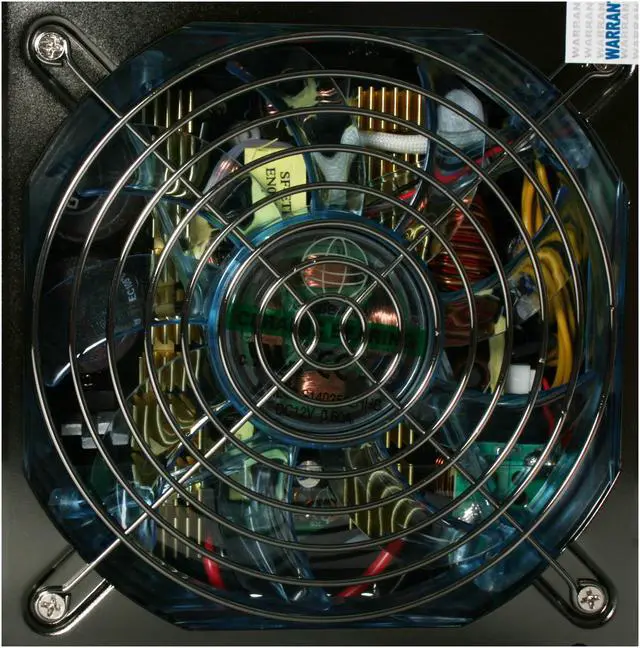

| Fans | 140mm Silent Blue LED Cooling Fan |

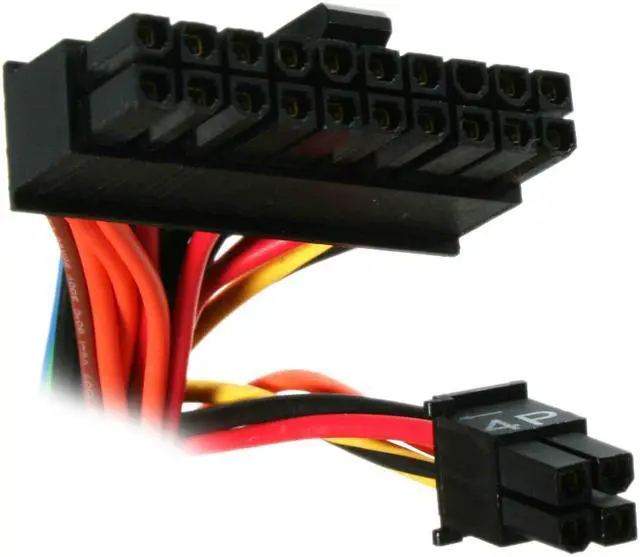

| Main Connector | 20+4Pin |
| +12V Rails | 4 |
| PCI-Express Connector | 2 x 6-Pin, 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |

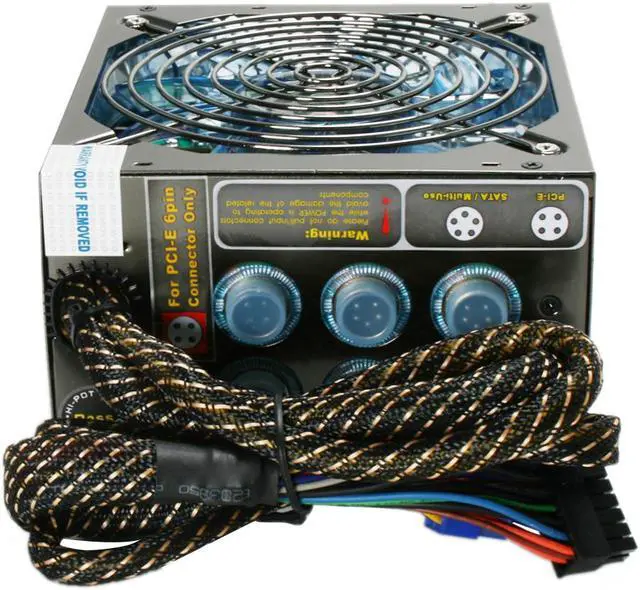

| Modular | Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16ms min. |
| Efficiency | Up to 85% |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 14.5A @ 115V, 7A @ 230V |

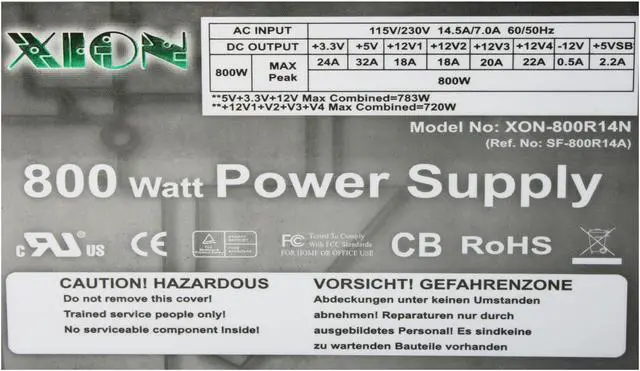

| Output | +3.3@24A, +5V@30A, +12V1@18A, +12V2@18A, +12V3@18A, + 12V4@20A, [email protected], [email protected] |
| MTBF | >120,000 hours |
| Approvals | CUL, FCC, TUV, CE, C-tick, CB, BSMI |

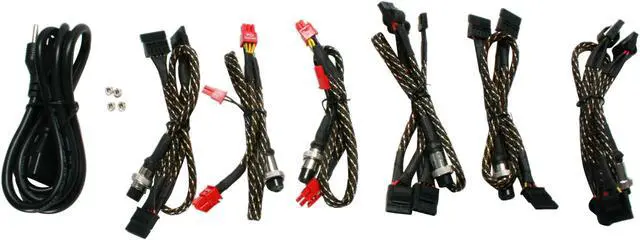

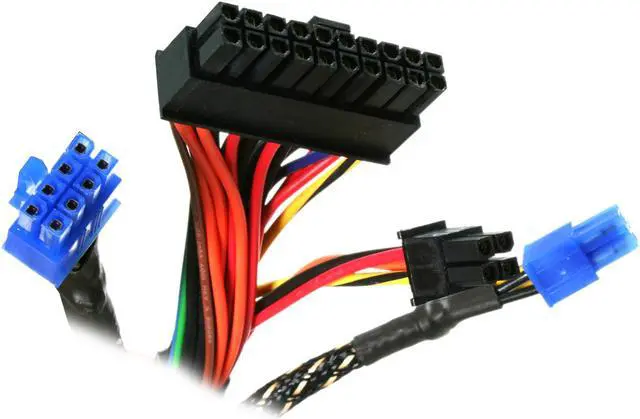

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4+4Pin) 8 x peripheral 6 x SATA 1 x Floppy 4 x PCI-E |
| Features | Individual QUAD 12V Rail-Design: offer unflappable & clean current delivery under heavy load and provide stable voltage output. Advance Modular Cabling Support with unique LED design function Over Current Protection Over Voltage Protection Short Circuit output protection Titanium Nickel Coated Housing 140mm Silent Blue LED Fan with Auto, Temp. Control |
|---|
| First Listed on Newegg | July 11, 2007 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
