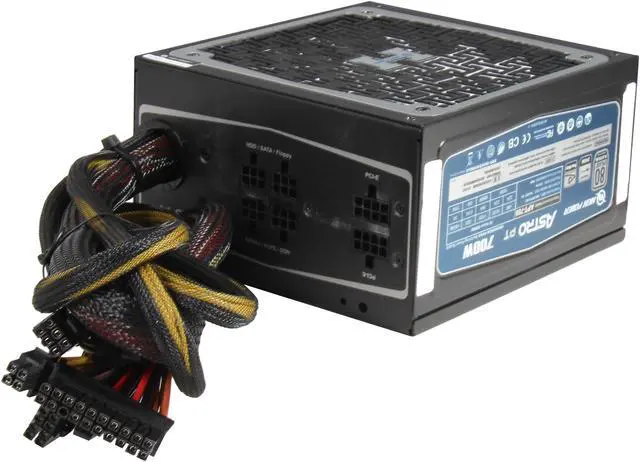

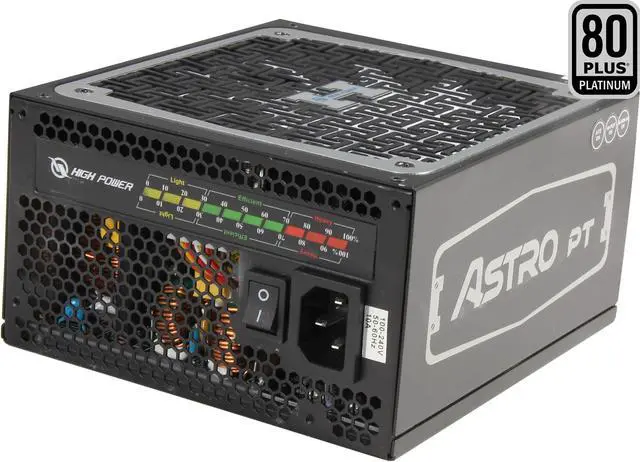

HighPower Astro PT 700W, Digital, 80+ Platinum, Single +12 Rails, SLI/Cross Fire ready, Module, Active PFC Power Supply

  • Digital ATX 12V v2.31 and EPS v2.92
  • Modular
  • 80 PLUS PLATINUM Certified
  • 100 - 240 V 50/60 Hz

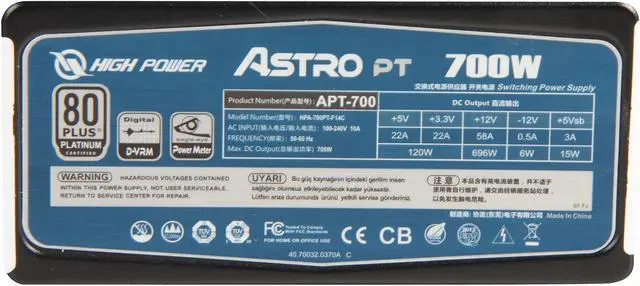

  • +5V@22A, +3.3V@22A, +12V@58A, -12V@0.5A, +5VSB@3A
  • Pin It
  • Email this page
ICON Loading...

Astro Series is designed for PC builders who want the most reliable and efficient power supply. Its visually stunning design shows their insistence on perfection.

The Astro PT series defines a High Power product line! It is 80-Plus Platinum certified and features the unique D-VRM technology - the best  digital control technology for a precise voltage regulation, way beyond the limits of analog designs. Check the power supply status at a glance thanks to its unique Eagle-eye feature, a real-time power consumption indicator with a tri-color LED. What's more, its H-shaped fan guard provides superior ventilation and looks like a work of art.

  • newegg 80 Plus Platinum Certified Extremely high power efficiency of 90-92.8% at 20-100% of load reduces the loss of electricity and saves you money on the electricity bill.
  • newegg Unique D- VRM technology, Digital Control for a Precise Voltage Regulation Unique digital + VRM (D-VRM) is an innovative and industry leading technology. D-VRM is made to minimize voltage fluctuation down to 0.5% (over industry standard 3-5%). The technology of digital control for precise voltage regulation goes way beyond the limits of analog designs. D-VRM design features intelligently adjusting voltage with minimal power loss through voltage monitoring. D-VRM design empowers users with superior flexibility and precision to ensure extreme system stability and better power efficiency.

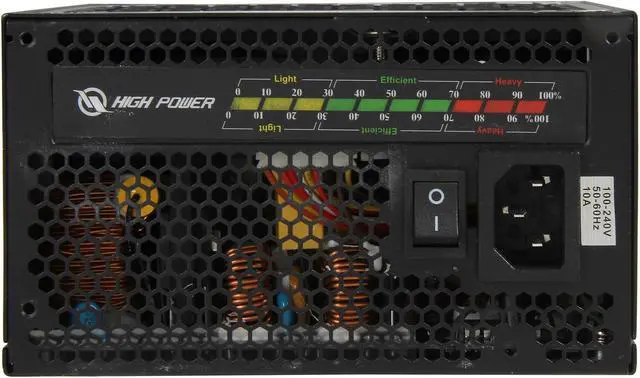

  • newegg Eagle Eye – The unique Real Time Power Meter Check the power supply status at a glance - tri-color LED indicator shows real time power consumption.

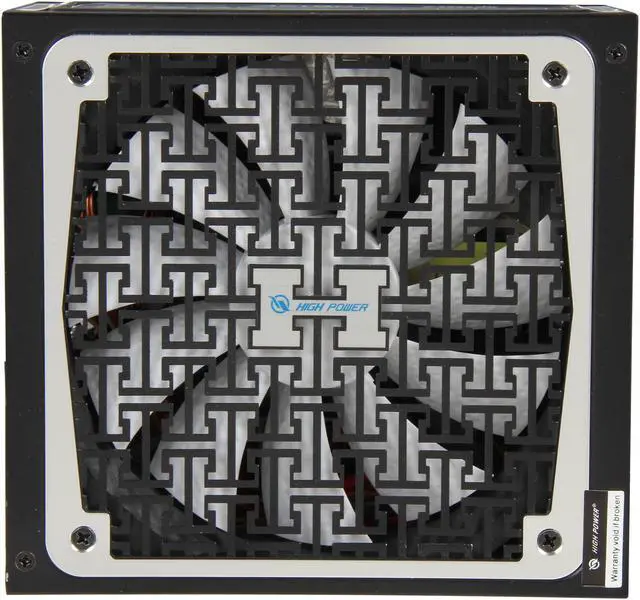

  • newegg Silent Design High Power Astro PT HPA-700PT-F14C has an embedded 13.5cm dual ball bearing fan with dimpled blade surfaces (like a golf ball). These unique fan blades increase airflow and reduce overall noise level.
  • newegg Advanced DC to DC Converter Unparalleled DC to DC converters for 3.3V & 5V outputs to reach high efficiency.
  • newegg Intelligent Fan Control Equipped with "Intelligent Fan Control” design, which offers three Types of operation modes: fanless mode, silent mode, and cooling mode. The Astro adjusts fan operation mode automatically according to the system load as well as the ambient temperature level. When Astro is operating under 25% (+/- 5%) of the max output, the fanless mode is activated for absolute silence.

Learn more about the High Power Electronic Co., Ltd HPA-700PT-F14C


High Power
Astro PT


Digital ATX 12V v2.31 and EPS v2.92
Maximum Power
Main Connector
+12V Rails
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
SLI Ready
Haswell Support
CrossFire Ready
Up to 92%
80 PLUS PLATINUM Certified
Over Voltage Protection
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
+5V@22A, +3.3V@22A, +12V@58A, -12V@0.5A, +5VSB@3A
100,000 hrs
5.9" x 3.39" x 6.3"
7 lbs.

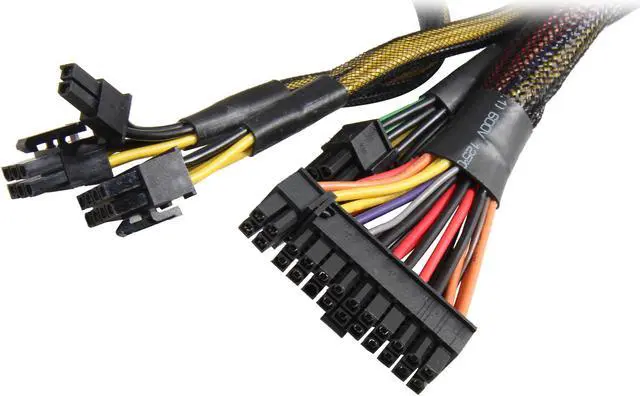

1 x 20+4pin Main Connector
1 x 4+4pin CPU
1 x 8pin CPU
4 x 6+2pin PCI-E
10 x SATA
4 x Peripheral
1 x Floppy
D-VRM technology, Digital Control for a Precise Voltage Regulation

Eagle Eye - The Real Time Power Meter

Silent Design

Advanced DC to DC Converter

Intelligent Fan Control

Off-Delay Fan (Fan Stays On After System Off)

Single +12V Output Rail

100% Japanese-made Capacitors

Reliable Japanese-made Solid-state Capacitors

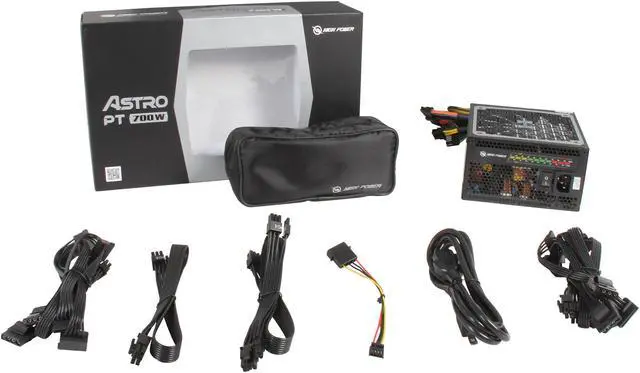

Easily Detachable and Flexible Flat Modular Cables

Easy Swap Connector

Quick Info


  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year

Customer Reviews of the High Power Electronic Co., Ltd HPA-700PT-F14C

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Michael M.
  • 9/5/2014 9:03:03 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsJunk

Pros: Quiet at common load levels. Power meter is a neat gadget

Cons: Crashes, isn't stable.

I bought one and put it in a 100% stable for years system. Random crashes started and the system rarely ran for more than a hour. RMA'd it and Newegg provided good service.

Second one did same thing, so I swaped into system an low and behold it was actually good there. I assumed some sort of compatibility issue with one type of motherboard.

Couple of months later I've got a brand new ASUS X99 deluxe and nothing but random crashes. Swap a different powersupply in and its 100% good.

So 2 out of 3 motherboards I have on hand won't work with a 700w astro. I'd skip it if I were you.

Other Thoughts: Tried contacting them and the first question was "what country are you?" lol

Did you find this review helpful? Yes No

  • Justin h.
  • 8/8/2014 4:49:32 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsWorst Product Encountered

Pros: It didn't physically harm my family. It's quiet.

Cons: It's expensive, which is fine for working products. It's fan runs making you think it's not going to crash your system randomly but then it does crash the system.

Other Thoughts: I thought it was working because the fan ran ... eventually and the system was working for about an hour, then everything crashed. I didn't have a working PSU to compare against at the time, so I tried replacing the CPU, RAM, motherboard, and video card to no avail. Eventually I teamed up with a technician friend of mine with a spare PSU. We confirmed the problem was the PSU. It probably gives unstable voltage, either way it is the problem.

The return process was horrible. I was given the run-around and it was difficult to communicate with the Chinese/American representative - not because of language barriers but because the rep didn't reply promptly or with information such as RMA number and return address until I specifically asked for each. I (A+ certified) and my technician friend also A+ certified confirmed the problem by swapping parts and performing an installation until this PSU and only this PSU caused the system to crash while still keeping the fans on. The company probably doesn't do adequate quality control - 'fan's on? OK let's ship it'. I didn't get a refund for the shipping, which added insult to injury.

Save your box if you are brave enough to purchase this!

Did you find this review helpful? Yes No

  • Paul H.
  • 1/18/2014 12:36:08 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsPerfect Power Source

Pros: Fit perfectly into my Cooler Master case and powered up without a hitch. With integrated graphics and SSD, the power meter on the back barely broke a sweat. I'm sure that will change once the GPUs in SLI and installed.

Cons: Nothing at this time

Other Thoughts: Great selection of cables allowed me to connect all my accessories with minimal number of cables and maximize air flow within the case.

Did you find this review helpful? Yes No

  • Anonymous
  • 5/24/2013 4:01:41 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat, but a little overkill for my system!

Pros: It fit my BitFenix Prodigy

Cons: Cannot turn off the lights

Other Thoughts: I swapped out my SilverStone SFX PSU for this. The 450W 80+ Bronze was crashing my computer when the hard drives starts spinning a lot, and I got tired of it. With this PSU, I've fully loaded my computer with HDDs with no issues. According to the power meter, I'm using very little power, which is to be expected. This PSU is probably way overkill for my system. I was considering an Antec Earthwatt 650W 80+ Platinum, and found this to be just $5 more at the time. So I got this instead.

2 out of 2 people found this review helpful. Did you? Yes No
