Item#: N82E16817256108

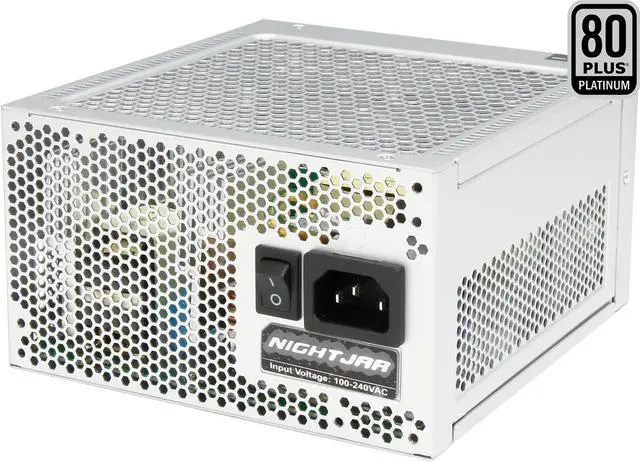

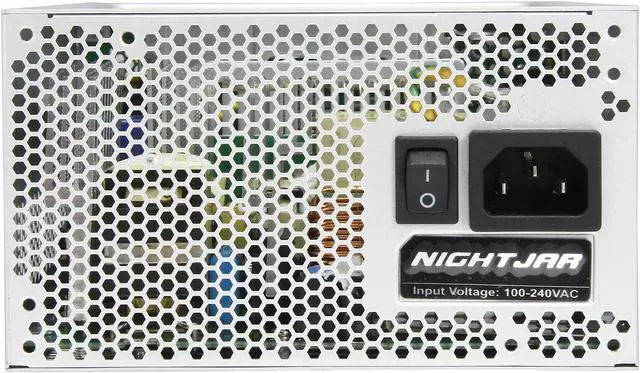

SILVERSTONE Nightjar NJ520 520W ATX12V / EPS12V 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply

  • ATX12V / EPS12V
  • Full Modular
  • 80 PLUS PLATINUM Certified
  • 90 - 264 V 47 - 63 Hz
  • +3.3V@20A, +5V@20A, +12V@43A, +5VSB@2.5A, -12V@0.5A
  • Pin It
  • Email this page
ICON Loading...

SilverStone’s Nightjar NJ520 is a fanless power supply that offers users a whole new experience of quietness and stability. Its premium components and engineering helped it to achieve 80 PLUS Platinum level of efficiency, reducing wasted heat and enable an open grille design that can operate reliably without fan attached. This noise-less performance can be maintained with stringent electrical characteristics even under 104°F (40°C) operating environment.

As a versatile power supply, NJ520 has powerful +12V output of 43A for high-end system usage and its flexible, flat modular cables make assembly easy for improved case airflow. For professionals looking to build PCs or workstations for specialized settings such as recording studio or sound-optimized laboratories, the Nightjar series PSUs with their consistent emphasis on quality, stability, and reliability, are sure to satisfy.

dimension

SPECIAL FEATURES

  • 1. Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.
80 PLUS Platinum level of efficiency
  • 2. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
single +12V rail

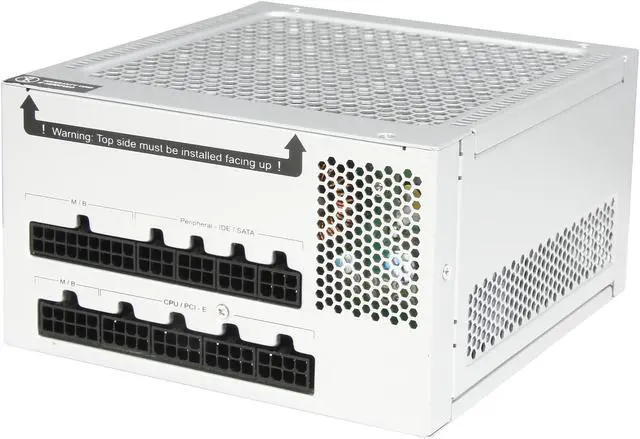

  • 3. 100% modular cable design for easy removal in a case with cable routed and tied down.
100% modular cable design
1 x 24 / 20-pin motherboard connector

1 x 24 / 20-pin motherboard connector

1 x 8 / 4-pin EPS / ATX 12V connector

1 x 8 / 4-pin EPS / ATX 12V connector

2 x 8 / 6-pin PCIE connectors

2 x 8 / 6-pin PCIE connectors

6 x SATA connectors

6 x SATA connectors

5 x 4-pin peripheral connectors

5 x 4-pin peripheral connectors

1 x 4-pin floppy connectors

1 x 4-pin floppy connectors

  • 4. ±2% regulation and low ripple & noise performance for high stability.
Tight regulation

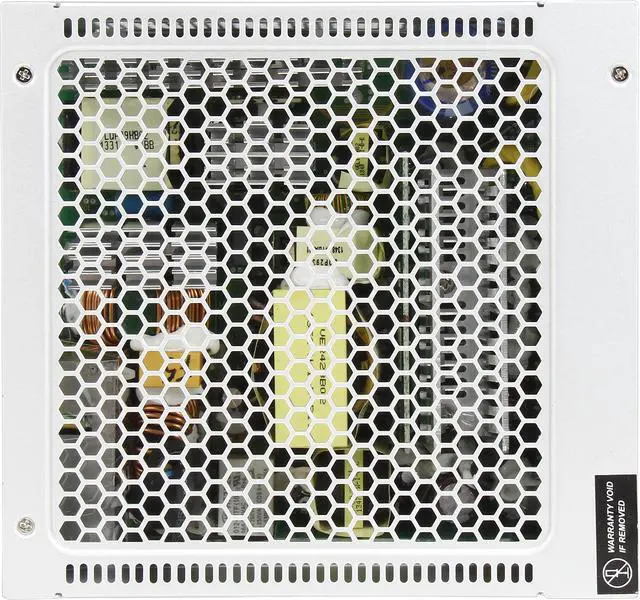

  • 5. Fan-less thermal solution, 0dBA acoustics
Fan-less thermal solution
  • 6. 24/7 continuous power output with 104°F (40°C) operating temperature

Specifications

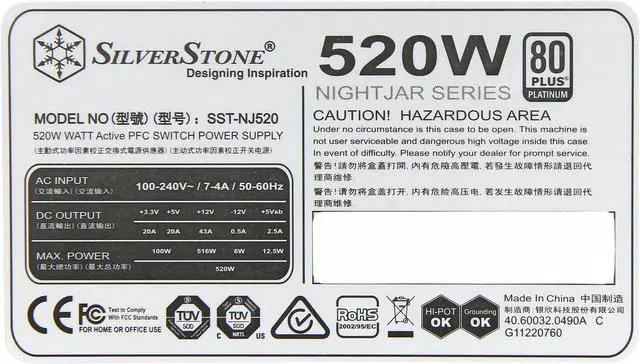

Model No. SST-NJ520
Max. DC Output 520W
Load Range
Rail +3.3V +5V +12V +5VSB -12V
Max. (Amps) 20A 20A 43A 2.5A 0.5A
Min. (Amps) 0A 0A 0A 0A 0A
Range ±2% ±2% ±2% ±5% ±10%
Line Reg. ±1% ±1% ±1% ±1% ±2%
Ripple (mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3, +5V 100W
Combined +12V 516W
Input Voltage 90 ~ 264V
Input Frequency Range 47Hz - 63Hz
PFC Active PFC. (PF > 0.99 at Full Load)
Efficiency 89% - 92% at 20% - 100% loading
MTBF 100,000 hours
Operating Temperature 32 - 104°F (0 - 40°C)
Protection Over current protection
Over power protection
Over voltage protection
Over temperature Protection
Under voltage protection
Short circuit protection
No Load Situation

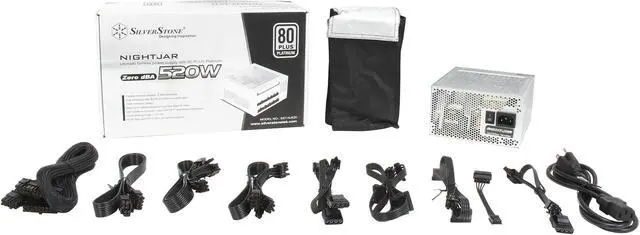

Connectors 1 x 24 / 20-Pin motherboard connector (600mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (650mm)
2 x 8 / 6-Pin PCIE connector (600mm)
4 x SATA connector (400mm / 120mm / 120mm / 120mm)
2 x SATA connector (300mm / 120mm) 3 x 4-Pin Peripheral connector (400mm / 120mm / 120mm)
2 x 4-Pin Peripheral connector (300mm / 120mm)
1 x 4-Pin Floppy connector (100mm)
*NJ520 is not compatible with PP05, PP05-E and PP06 cables.
Color Silver
Cooling System Fan Less thermal solution
Noise Level 0dBA
Dimensions (W x H x D) 6 x 3.3 x 6.3 inches (150 x 86 x 160mm)
Weight 5lbs (2.3kg)
Form Factor ATX
Certification 80 PLUS Platinum
Other Haswell CPU support

Learn more about the Silverstone NJ520

Model

Brand
SILVERSTONE
Model
NJ520
Series
Nightjar

Spec

Type
ATX12V / EPS12V
Maximum Power
520W
Fans
0
PFC
Active
Main Connector
24Pin
+12V Rails
Single
PCI-Express Connector
2 x 8-Pin
SATA Power Connector
4
Modular
Full Modular
Efficiency
89%~92% at 20%~100% loading
Energy-Efficient
80 PLUS PLATINUM Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
90 - 264 V
Input Frequency Range
47 - 63 Hz
Output
+3.3V@20A, +5V@20A, +12V@43A, +5VSB@2.5A, -12V@0.5A
MTBF
>100,000 Hours
Dimensions
3.39" x 5.91" x 6.30" (H x W x D)
Weight
5.07lbs

Features

Connectors
1 x 24 / 20-Pin motherboard connector(600mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(650mm)
2 x 8 / 6-Pin PCIE connector(600mm)
4 x SATA connector(400mm / 120mm / 120mm / 120mm)
2 x SATA connector(300mm / 120mm)
3 x 4-Pin Peripheral connector (400mm / 120mm / 120mm)
2 x 4-Pin Peripheral connector (300mm / 120mm)
1 x 4-Pin Floppy connector(100mm)
Features
Fan-less thermal solution, 0 dBA acoustics
High efficiency with 80 PLUS Platinum certification
100% modular cables
Strict ±2% voltage regulation and low ripple & noise
24/7 continuous power output with 40? operating temperature
Class-leading single +12V rail
PCI-E 8pin and PCI-E 6pin connectors support

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the Silverstone NJ520

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • David P.
  • 7/13/2014 5:48:53 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsWorks as expected

Pros: Quiet, easy to install

Cons: Warning that it must be in installed horizontally. My HTPC case sits horizontally and the power supply mount is vertical. I hope the heat sinks will still work as efficiently as they must to keep this unit cool.
