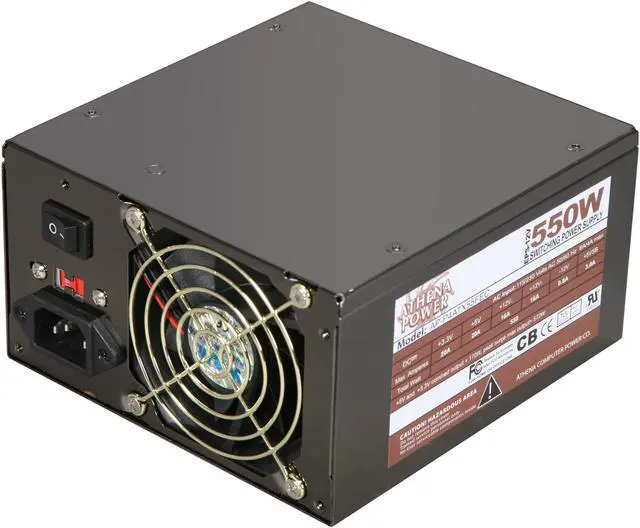

Athena Power AP-P4ATX55FEC Continuous 550W @ 40°C EPS12V Ver. 2.91 SLI Ready CrossFire Ready Nickel Coating PS2 ATX v2.2/ EPS12V Power Supply - OEM
- EPS12V Ver. 2.91
- 95 - 132V/ 190 - 264V 50/60 Hz
- +3.3V@15A, +5V@20/26A, +12V1@16A, +12V2@16A, -12V@0.8A, +5VSB@2.5A
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Athena Power AP-P4ATX55FEC
| Brand | Athena Power |
|---|---|
| Model | AP-P4ATX55FEC |
| Type | EPS12V Ver. 2.91 |
|---|---|
| Maximum Power | Continuous 550W @ 40°C |
| Fans | 2 |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin, 2 x 6+2-Pin |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | No |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 95 - 132V/ 190 - 264V |
| Input Frequency Range | 50/60 Hz |

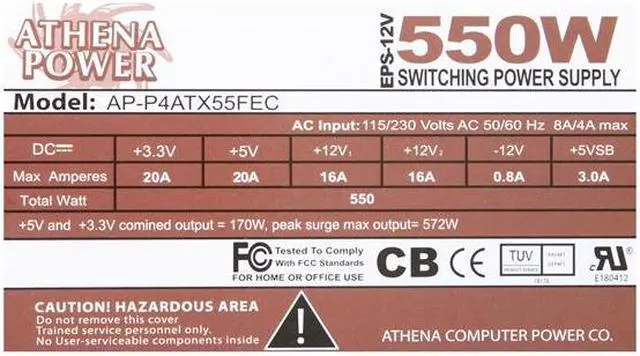

| Output | +3.3V@15A, +5V@20/26A, +12V1@16A, +12V2@16A, -12V@0.8A, +5VSB@2.5A |
| MTBF | >100,000 Hours |
| Approvals | CB, CE, UL |
| Features | Low Ripple & Noise Short circuit protection on all outputs Reset table power shut down 8 Pin EPS-12V Support Dual CPU Xeon M/B Dual PCI Express 6 Pin Ready SATA Power Lead Ready FCC part 15 subpart J Class B at 115VAC operation & CISPR 22 Class B at 230 VAC operation 100% burn-in under high ambient temperature Vacuum-impregnated transformer Dual EPS12V 8 Pin; support Intel Core i7 Platform Systems |
|---|
| Dimensions | 5.75"W x 3.25"H x 6.25"D |
|---|
| First Listed on Newegg | February 28, 2008 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-810-5008 #4
- Support Email: service@athenapower.us
- Support Website
