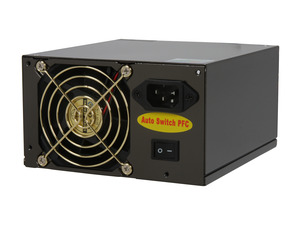

Athena Power AP-P4ATX80FEP 800W EPS12V Ver. 2.92 SLI Ready CrossFire Ready Active PFC Power Supply compatible with core i7

Model

Brand

Athena Power

Model

AP-P4ATX80FEP

Spec

Type

EPS12V Ver. 2.92

Maximum Power

800W

Fans

Two 12 VDE Ball-Bearing Smart Fans

PFC

Active

Main Connector

20+4Pin

+12V Rails

4

PCI-Express Connector

2 x 6-Pin, 2 x 6+2-Pin

SLI

SLI Ready

CrossFire

CrossFire Ready

Over Voltage Protection

Yes

Input Voltage

115 / 230 V

Input Frequency Range

50/60 Hz

Output

+3.3V@24A,+5V@24/26A,+12V1@18A,+12V2@18A,
+12V3@18A,+12V4@18A,-12V@0.8A,+5VSB@4.0A

MTBF

>100,000 Hours

Approvals

UL, CB & CE

Dimensions

5.75" x 3.25" x 6.25"

Features

Features

Support Intel Core i7 and Skulltrail Platform System
Dual EPS-12V 8pin for Intel Skulltrail
High efficiency
Low Ripple & Noise
Short circuit protection on all outputs
Two 12 VDE Ball-Bearing Smart Fans
8 Pin EPS-12V Support Quad CPU Xeon M/B
PCI Express 6 Pin / 8 Pin Ready for Muti-GPU Graphic Card
Auto Switch w/ Active PFC
FCC part 15 subpart J Class B at 115VAC operation & CISPR 22 Class B at 230 VAC operation
100% burn-in under high ambient temperature
Vacuum-impregnated transformer & 100% Hi-pot tested
Dual EPS12V 8 Pin; Support Intel Core i7 and Skulltrail Platform Systems

Manufacturer Warranty

Parts

3 years limited

Labor

3 years limited
