Item#: N82E16817426003

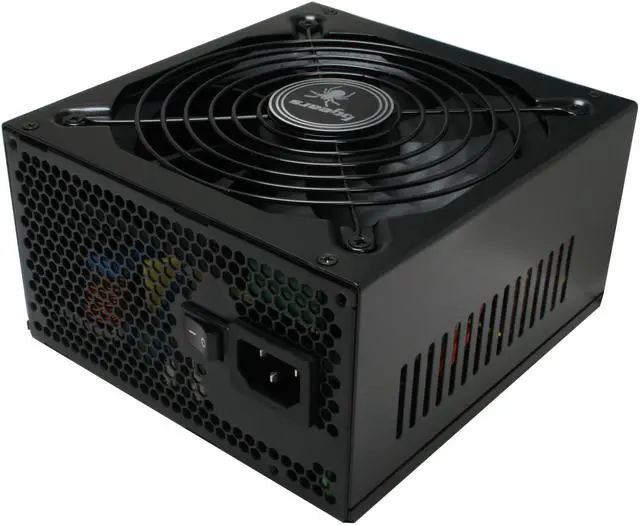

Bgears b-Tarantula-550W 550W ATX12V / EPS12V SLI Ready CrossFire Ready Modular Active PFC Power Supply

  • ATX12V / EPS12V
  • Modular
  • 115 / 230 V 50/60 Hz
  • +3.3V@28A,+5V@28A,+12V1@20A, +12V2@20A,-12V@0.5A,+5VSB@2.5A
ICON Loading...

Learn more about the BGears b-Tarantula-550W

Model

Brand
Bgears
Model
b-Tarantula-550W

Spec

Type
ATX12V / EPS12V
Maximum Power
550W
Fans

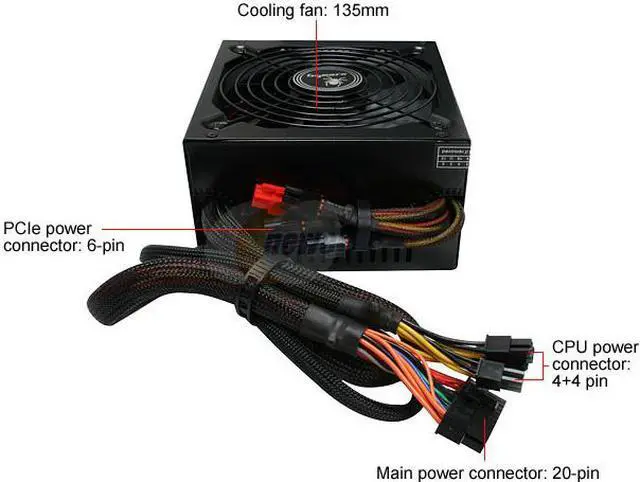

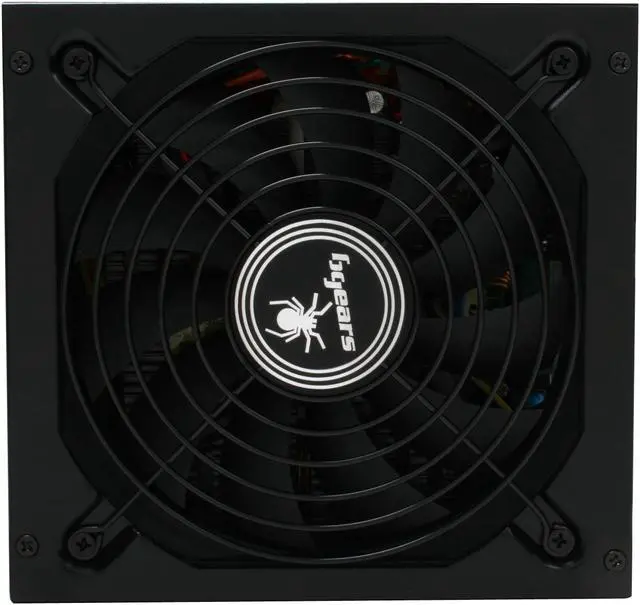

1 x 135mm fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector
6
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
Modular
Efficiency
up to 86%
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
8A

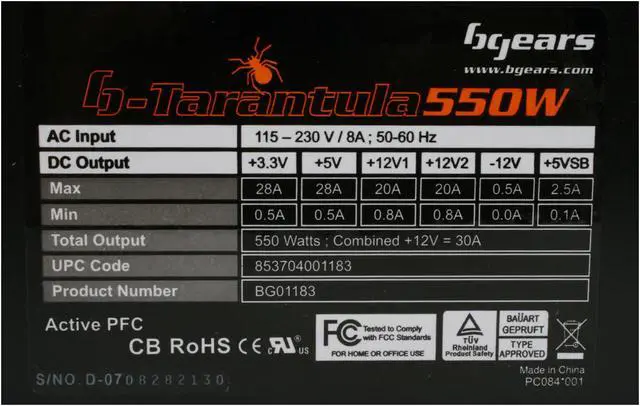

Output
+3.3V@28A,+5V@28A,+12V1@20A,
+12V2@20A,-12V@0.5A,+5VSB@2.5A
Approvals
CB, RoHS, CE, cUL, FCC, TUV
Dimensions

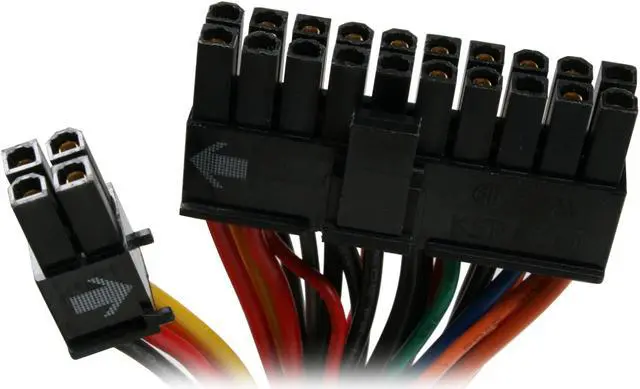

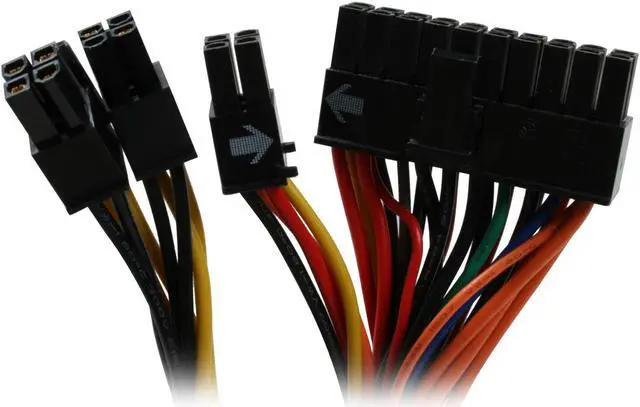

1 x Main connector (20+4Pin)
1 x 12V(4+4Pin)
6 x peripheral
6 x SATA
2 x Floppy
2 x PCI-E

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the BGears b-Tarantula-550W

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • JEFF C.
  • 4/16/2009 7:56:17 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsThis PSU is a good buy & quality!

Pros: A very high quality PSU! It has received excellent reviews at the websites I visited... never was rated lower than 4.5 out of 5 stars or 9 of 10. Good heavy construction and solid workmanship. The exterior finish seems to be powder-coated, which is very scratch-resistant.

Modular design is easy to work with and the cable are stiff, which is a sign to me that Bgears is using heavy gauge wiring. The sleeving and heatshrink fittings are very well assembled and show a high level of QC. The cables are of long lengths so they'll fit just about any case except for the huge server towers. Fit my Lian-Li PC-7F case with no problems. Runs cool and the fan is VERY quiet! After running for over 12 hours the outside of the case is barely lukewarm!

Cons: NONE!

Other Thoughts: You can't go wrong purchasing this PSU. Rock stable, cool running, quiet and very well made.

0 out of 1 people found this review helpful. Did you? Yes No

  • Arvin C.
  • 7/11/2008 9:16:36 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsIdeal PSU for Tight Fitting Builds!

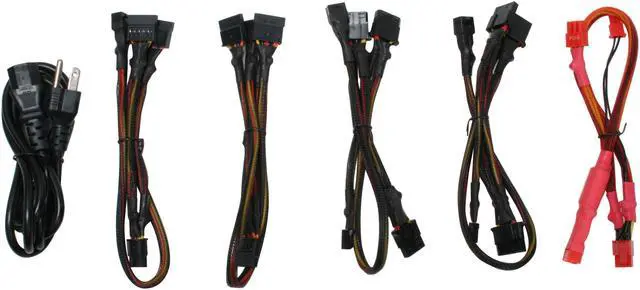

Pros: First off, this is a very high-quality PSU. It's nice & heavy, really well made. It has all the right specs like auto-sensing voltage, SLI/Crossfire certification, dual 12-volt rails, very stable voltage ratings, 135mm cooling fan, etc. But the real cool feature is its "pigtail-type" modular design. Instead of plugging the modular cables directly to the back of the unit, you plug them to a series of flex-sleeved cables that exit from the PSU thru a reinforced port. This design allows you to use this PSU in a very tight enclosure since you don't need a lot of clearence to plug the cable in. Also, you get a lot of cable: fully flex-sleeved, a ton of connectors and long enough for any installation! Very quiet & cool during operation.

Cons: None really. Pigtail cables from the case are super-stiff, but that's a trade-off for their durability. Also, this a standard, full-size PSU...make sure you it'll fit in your Media/LAN-box case.

Other Thoughts: Just the right PSU for my box: Conroe E6600, EVGA 630i/7150, EVGA 8800 GTS, 4 gigs Mushkin DDR-800 RAM, bGears b-Envi LAN case, etc. Plenty powerful enough for it all! Cable legnth is long enough for standard ATX cases. Hard to imagine a Media or LAN build needing more PSU than this. Got it at a great price...thanks Newegg!!

1 out of 2 people found this review helpful. Did you? Yes No
