Does anyone have experience using this PS in a Dell Precision 360?

Cable lengths did not match original. Worked as a replacement only with modifications .

Will this power supply work as a replacement for the Dell Inspiron 545?

Not sure but it should if you have a standard size case. I purchased 6 about 1 1/2 years ago for 4 optiplex and 2 vostro. They are standard tower ATX type cases. Installation was simple. They do however put off more heat than the original 135 W power supply that comes stock with the Dell computers. It does not require extra fans or anything, however you cannot keep them in an enclosed cabinet without extra vents through the cabinet.

Looking for power supply for my Dimension 8400 computer. It as sata connections. ATX you show here does mention the 8400. Will this version support the 8400? Alan

I bought it for 8900 and it works fine. Sorry that I do not know how 8400 compares. I had a really hard time finding one without the on off power switch. I was not prepared to cut a hole in my tower. So I was thrilled this worked.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of StarTech ATXPW400DELL 400W ATX12V Ver. 2.01 Dell Replacement Power Supply

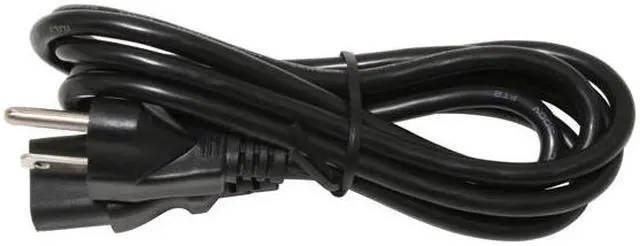

Alt view image 2 of 6 - StarTech ATXPW400DELL 400W ATX12V Ver. 2.01 Dell Replacement Power Supply

Alt view image 3 of 6 - StarTech ATXPW400DELL 400W ATX12V Ver. 2.01 Dell Replacement Power Supply

Alt view image 4 of 6 - StarTech ATXPW400DELL 400W ATX12V Ver. 2.01 Dell Replacement Power Supply

Alt view image 5 of 6 - StarTech ATXPW400DELL 400W ATX12V Ver. 2.01 Dell Replacement Power Supply

Alt view image 6 of 6 - StarTech ATXPW400DELL 400W ATX12V Ver. 2.01 Dell Replacement Power Supply

Shop All STARTECH Products

StarTech ATXPW400DELL 400W ATX12V Ver. 2.01 Dell Replacement Power Supply

(13) Write a Review

ATX12V Ver. 2.01
115/ 230 V

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (13)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

A blend of performance and quality, the StarTech ATXPW400DELL is a great choice for new builds or system upgrades. Robust power output means your rig can run stably and reliably, while high-quality components ensure long-lasting performance. One quiet fan provides a great air flow so your PSU stays cool, even at demanding load levels.

Robust PowerThis unit delivers a robust 400W of maximum power for your rig. Dual +12V rails with one 6-pin PCIe connector provide sufficient juice for your multi-core CPU and performance graphics card.
Quality BuildEMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components. High-quality connectors provide minimal resistance and enhanced electric conductivity.
Silent Cooling FanThe low-noise 80mm sleeve bearing fan produces a massive air flow that keeps your PSU running cool and always at peak performance.

General
Brand	StarTech.com
Model	ATXPW400DELL

Details
Type	ATX12V Ver. 2.01
Maximum Power	400 W

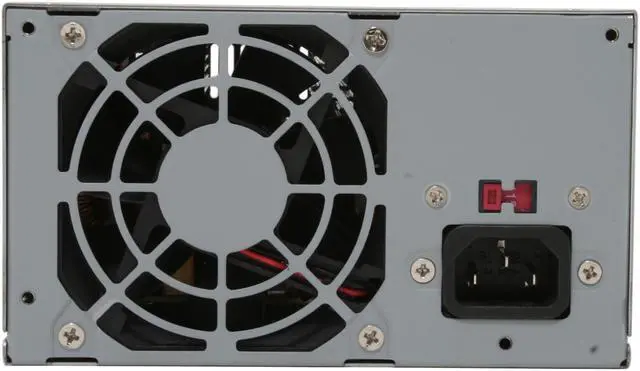

Fans	1 x 80mm Sleeve Bearing fan
PFC	No
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	1 x 6-Pin
SATA Power Connector	4
SLI	No
Haswell Support	No
Modular	No
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	10 - 5.5A

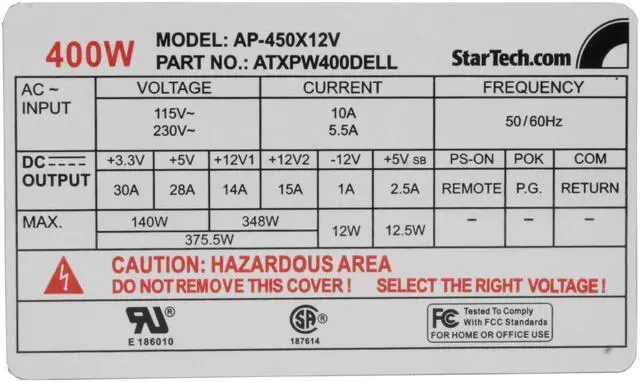

Output	+3.3V@30A, +5V@28A, +12V1@14A, +12V2@15A, -12V@1A, [email protected]
MTBF	>100,000 Hours
Approvals	UL, FCC, CSA

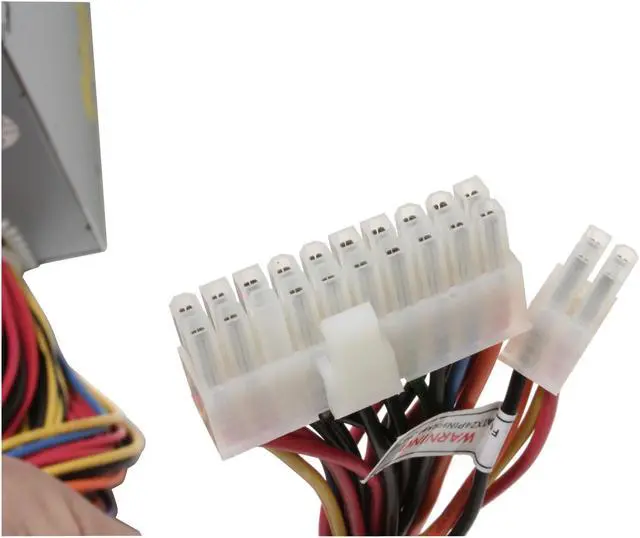

Connectors	1 x Main connector (20+4 pin) 1 x 12V(P4) 4 x peripheral 4 x SATA 2 x Floppy 1 x PCI-E

Features
Features	The ATXPW400DELL is compatible with standard ATX style versions of following: Dimension Series Models: 3000 / 3100 / 4600 / 4700 / 9100 / E310 / E510 Optiplex Series Model: GX280 Power Edge Series Model: SC420 Precision EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components High quality connectors provide minimal resistance and enhanced electric conductivity

Dimension & Weight
Weight	20

Details
Energy-Efficient	No

Additional Information
First Listed on Newegg	December 27, 2006
