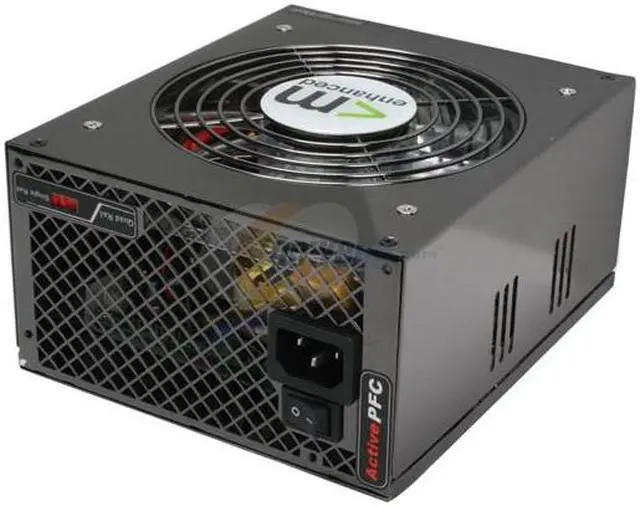

Brand | Mushkin Enhanced |
---|---|
Model | 550300 |
Type | ATX12V / EPS12V |
---|---|
Maximum Power | 800 W |

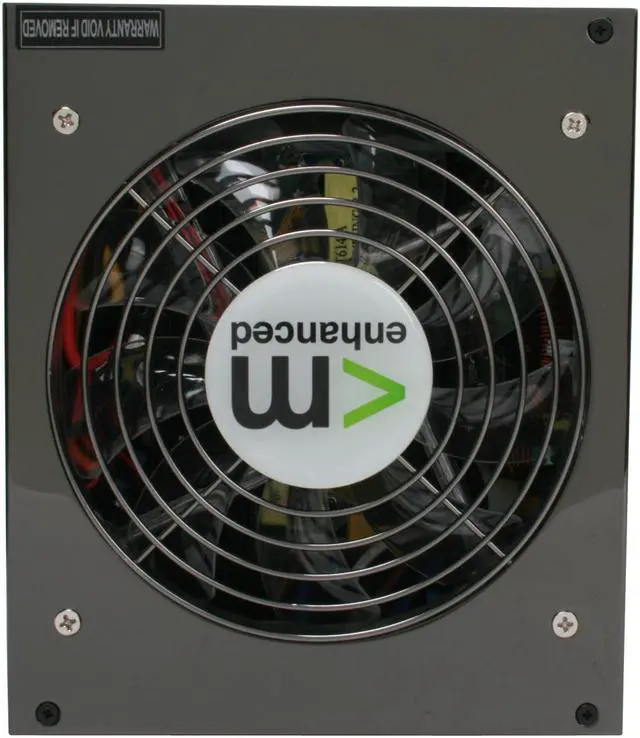

Fans | 1 x 135mm thermally-controlled LED Fan |
PFC | Active |

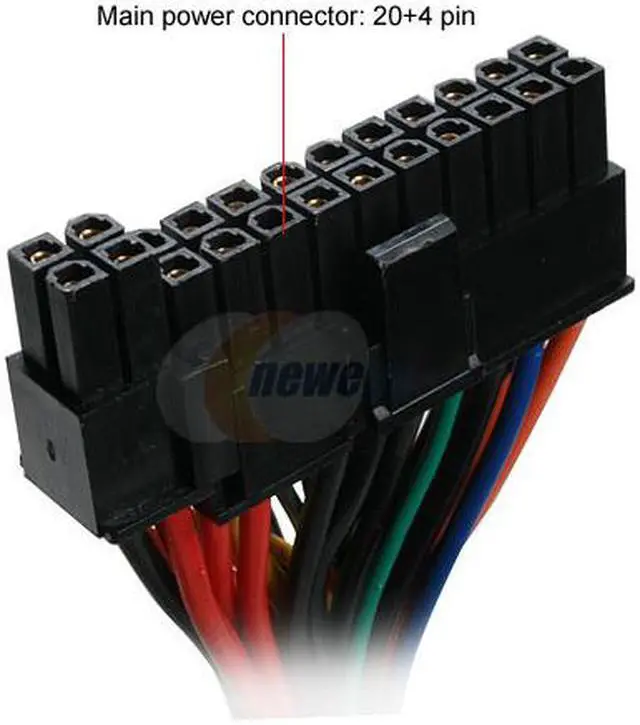

Main Connector | 20+4Pin |
+12V Rails | 4 |
PCI-Express Connector | 4 x 6+2-Pin |
SATA Power Connector | 8 |
SLI | SLI Ready |
CrossFire | CrossFire Ready |

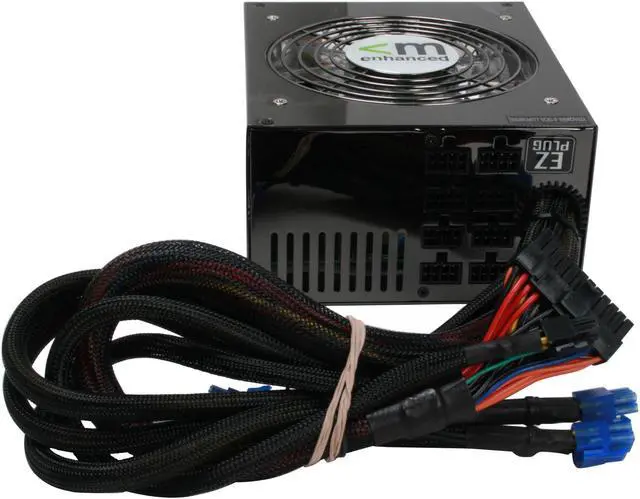

Modular | Modular |
Efficiency | Up to 85% |
Over Voltage Protection | Yes |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A @ 115V, 5A @ 230V |

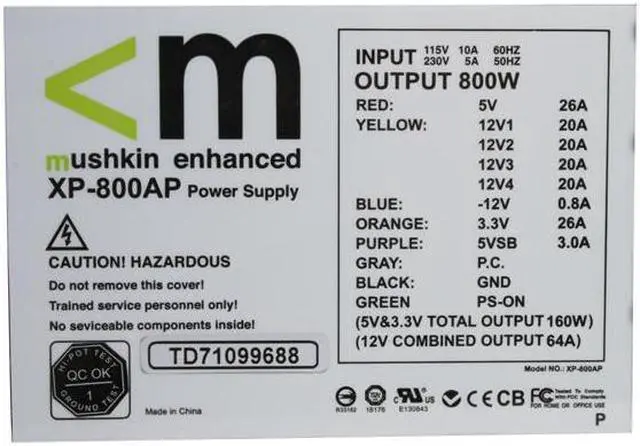

Output | +3.3V@26A, +5V@26A,+12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A, (+12Vtotal@64A,) -12V@0.8A, 5VSB@3.0A |
MTBF | >100,000 Hours |
Approvals | TUV, CE, CB, cUL, FCC |

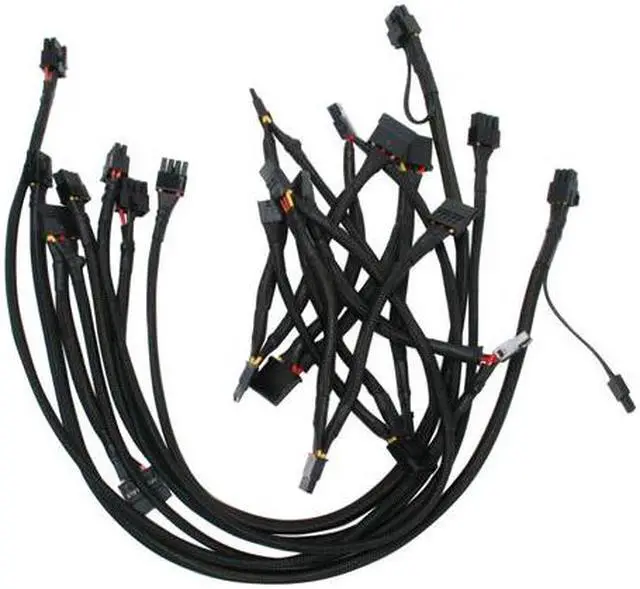

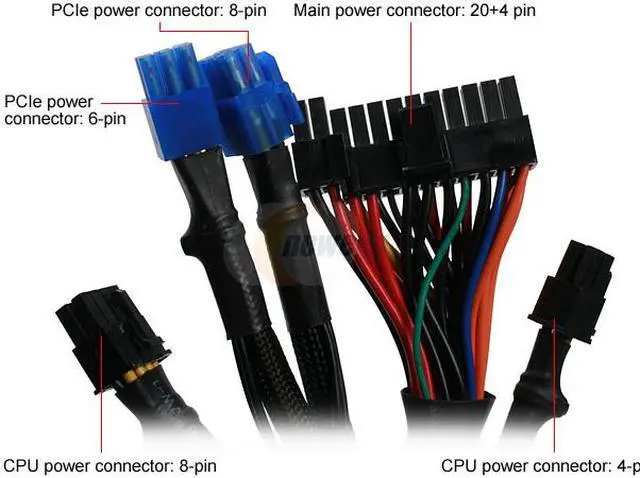

Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 6 x peripheral 8 x SATA 2 x Floppy 4 x PCI-E |

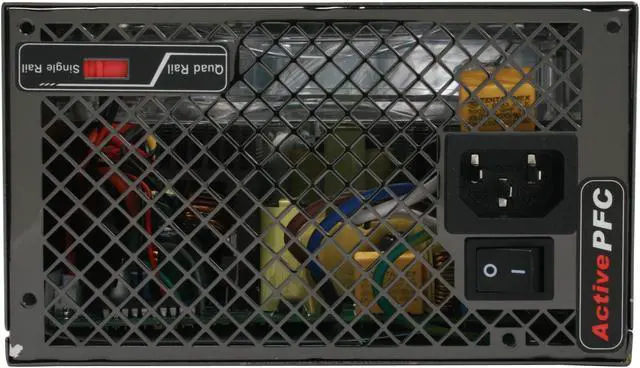

Features | QuadRail/SingleRail: Four +12V rail/Single +12V rail switch-selectable. Thermal & Acoustic Design automatically varies fan speed for quiet operation and proper temperature regulation. Modular cabling allows for a tidy case by using only the cables that are needed. Industrial-grade 105C-rated primary capacitor and solid capacitor for +5VSB. Peak output 900W. |
---|
Date First Available | February 25, 2008 |
---|
