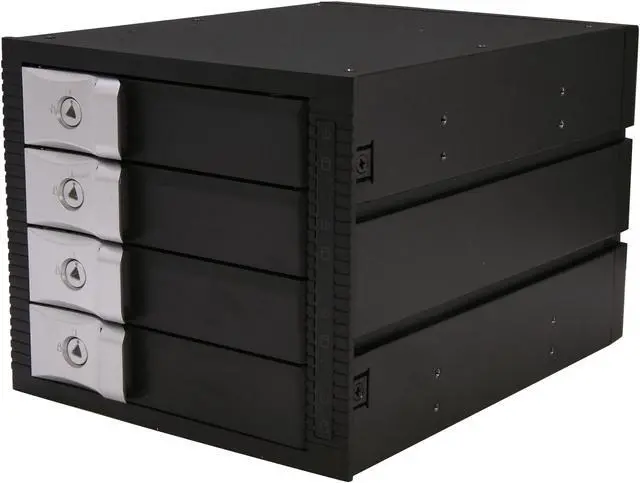

KINGWIN KF-4002-BK Multi-Bay Internal Rack, 4 Drives For 3 Bay Space For SATA

  • Interface: Serial ATA
  • Fan: 1 x 120 mm rear fan
  • Color: Black
  • LED display: Yes
  • Connector: NSS (Non-Scratch SATA)
  • Tray material: Aluminum / Plastic
  • Dimensions: 9"(230 mm)L x 5 3/4"(145 mm)W x 5"(12
ICON Loading...

Learn more about the Kingwin Inc. KF-4002-BK

Model

Brand
KINGWIN
Model
KF-4002-BK

Spec

Specifications
Interface: Serial ATA

Fan: 1 x 120 mm rear fan

Color: Black

LED display: Yes

Connector: NSS (Non-Scratch SATA)

Tray material: Aluminum / Plastic

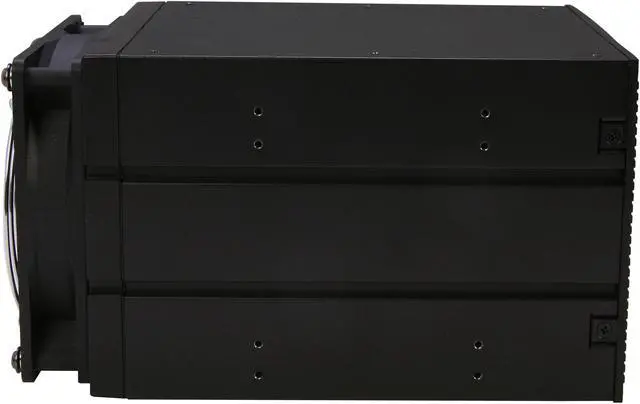

Dimensions: 9"(230 mm)L x 5 3/4"(145 mm)W x 5"(126 mm)H

Weight: 3.5 lbs (1582 g) / unit

Operating Temperature: 0 Degrees C to 55 Degrees C

Features

Features
3.5" Internal hot swap rack raid-4 bay

No inner tray required

Space for 4 H.D.D. w/ 3 bay slots

Easy transport and secure valuable data

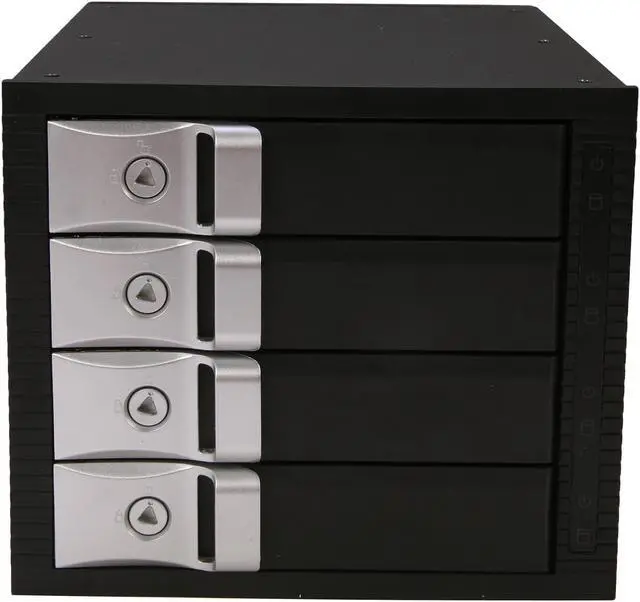

Easy open latch door

LED indicator

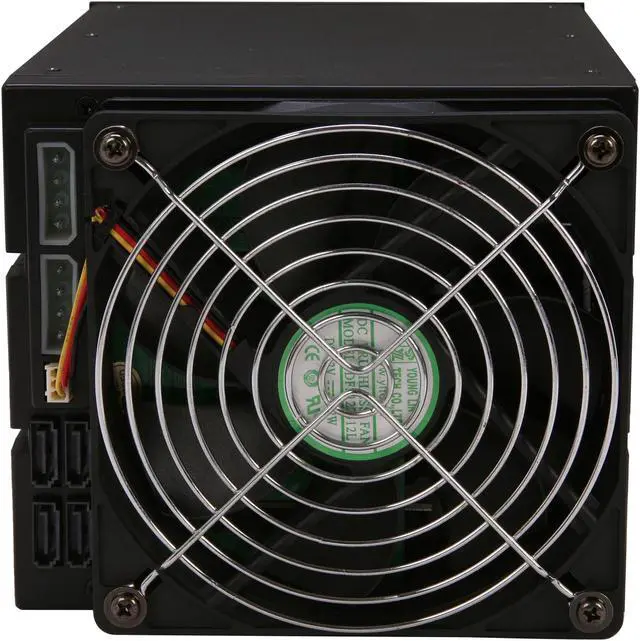

One 120 x 120 mm rear fan

NSS (Non-Scratch SATA connector)

50,000 times insertion rate

Supports hot swap

Supports SATA III (6.0 Gb/s)

Tool-less design for H.D.D. installation

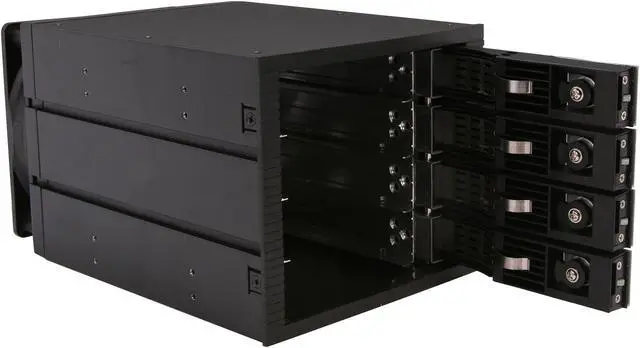

Tray-less design

Driver-free support

Key lock system for added security

Hot-Swap function requires SATA Controller

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Kingwin Inc. KF-4002-BK

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • John B.
  • 3/6/2013 12:07:34 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsGood stuff

Pros: Cost
Easy to install
Trayless

Cons: Doors are a little flimsy. This is not made for the enterprise or commercial applications. Perfect for SOHO.

Other Thoughts: Nitpicking - SATA ports in the back are not labeled so when you set it up you have to guess which bay is what port. SATA cables included do not have clips so they could fall out

Did you find this review helpful? Yes No

  • Jeremy R.
  • 2/12/2013 1:30:16 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsKingwin 4-in-3

Pros: Okay hotswap bay.

Cons: Cheap, poorly built plastic breaks easily. 2nd bay door cracked off first day of having it.

It's HUGE. Make sure you have plenty of room.

Did you find this review helpful? Yes No

  • Brandon S.
  • 1/30/2013 11:20:47 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsNot that great for RAID purposes.

Pros: Runs cool and quiet and drive activity lights are nice to see in case you need to identify a defective drive.
120mm fan on the rear of the bay may be changed out if you wish for higher or lower cooling/noise.
Drives fit snugly and secured in the bays, however they may not work so well if you use the lower height drives some manufacturers are going to. Also, not a good idea to place SSDs in.

Cons: SATA ports on the rear of the drive bays are *not* labeled or numbered for any identification for RAID purposes. Not a good product for RAID with unless you can dedicated a lot of time swapping a single drive out between the drive bays and seeing what port the motherboard/RAID card it is connected to.

Other Thoughts: Latches on the drive bays are not metal, or at least do not feel sturdy enough if they are metal. Key for locking and unlocking the bays is plastic and may break if you're not careful.
The LED colors for drive power and activity are not my first choice, green for power and orange for drive activity.

Did you find this review helpful? Yes No

  • Graham M.
  • 1/27/2013 1:41:28 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsIt does the job

Pros: -Fits my Antec case like a glove, that is once I moved the corsair H100i tubes out of the way.
-Works with my WD RE4 1TB Sata3 drives with no problem.
-Under full load my hard drives remain cool (with the replacement fan)

Cons: -User manual provided and pdf manual from their website is a job.
-Came with a defective fan that I replaced easily
-power led for one of the drive bays was defective (its why I took off an egg as I can't easily replace it).
-the locks are weak, nothing a screw driver can't rip open or unlock.
-Sata ports are not labeled on the back of this device. I had to test each bay with each port just to figure out what sata port went to what bay. PAIN IN THE Rear end to do.

Other Thoughts: Considering everything I said above I still plan to purchase 3 more of these, having the ability to easily replace the 120mm rear fan was the main selling feature, since it keeps my 4 high performance drives nice and cool under full load is another. The original fan was way way to loud (possibly defective so thats why I replaced it)

Did you find this review helpful? Yes No

  • Thomas D.
  • 1/24/2013 7:21:55 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGreat Product

Pros: Easy installation.
Sturdy foundation.
LOW power usage.
Great fan airflow.
Quiet fan.
Latches are Study.
Easy slip and slide with drives.
Cables and Screws included.
Lightweight

Cons: Cable Mess
Key feels like it will break when locking/unlocking.
Last bit of the latch feels like a bit of effort for the final close.
Key is plastic instead of metal.
Cable placement
No Sata Power cable support. Molex only. Requires 2.

Other Thoughts: I wish that more of it was metal instead of plastic. I also wish that the fan was shifted to the other side. The connectors for power and sata are located on the MB side of the case instead of the side panel side. Would make things a lot easier for installation.

Being that it is low power usage. You can use the same daisy chain with two molex connectors to power the entire enclosure. Running 1 wd green and 3 wd blacks

Did you find this review helpful? Yes No

  • Austin T.
  • 1/12/2013 2:04:53 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat Bays

Pros: Locks hold well, won't be accidentally opened.
Power and Activity LEDs on front are nice, most systems are Power only.
Drives and backplane make good contact, no wiggling or extra pressure needed.
Fans are not loud, audible while case is open, but no louder than the chassis fans themselves.
Intake vents are located beneath the silver latches, good airflow.
All drives are WD Green and don't go over 30°C even under large read load for an extended period (Parity check for ~5 hrs)

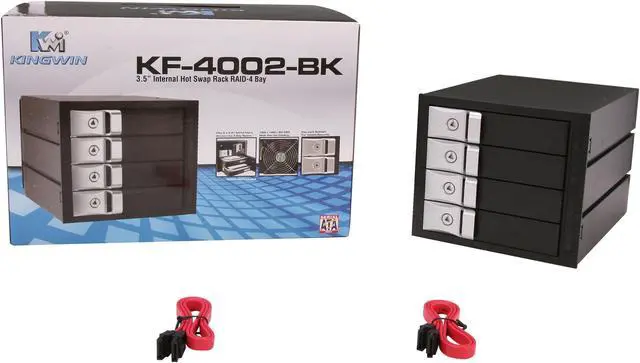

Includes all 4 SATA cables, standard 18" length

Cons: Deeper than I had anticipated. Specs are clearly stated (9" deep), but I did not mentally picture it accurately, not much clearance between the back edge of bay and motherboard (sub uATX, 8" deep from rear I/O plate), no eggs deducted.
Included cables are 18" long, much to long in my particular case. Will probably order shorter rounded SATA cables from startech; 6" would work for lower 2 bays but top bay may need 12", no eggs deducted

Other Thoughts: I purchased 3 of these to be installed into an Antec 900 Chassis and used as a storage server with ease of expansion a top priority. You cannot beat the quality of these bays at this price point. I am running a storage OS called Unraid and currently using 4x2TB, 1x1.5TB, & 1x1TB for a total of 8.5TB storage with parity. With a total of 12 bays, I could theoretically support up to 44TB with parity using current 4TB drives.

2 out of 2 people found this review helpful. Did you? Yes No

  • John H.
  • 1/12/2013 5:14:52 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsWorks as designed

Pros: Inexpensive, works as designed. There is good airflow with half of the back of the case unobstructed. I like the placement of the molex and sata connectors as it makes it easy to run the cables along the bottom of the tray and keep them out of the cases airflow paths.

Cons: The fan is a tad loud

1 out of 1 people found this review helpful. Did you? Yes No

  • David D.
  • 8/11/2012 1:45:02 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsExactly what I was looking for

Pros: Features
Quality
120mm Fan
LEDs
Price

Cons: Documentation is a little lacking
The fan is a bit loud so I replaced it with a quiet fan and used my motherboard power connector to power the fan and control the fan speed. It was very easy to replace the fan.

Other Thoughts: I've been researching drive cages/RAID enclosures for almost a year but I never saw anything that really satisfied all of my requirements - until now.

This thing is awesome - four HD slots in a 3-bay form factor.
The build-quality is very good considering the price. The doors have metal handles and metal locking mechanisms that you can lock with a key if you wish, but you don't have to use the key if you don't want to. The drives slide in and out with ease. In the back is a 120mm fan that keeps everything cool but I replaced the stock fan with a quieter fan.
To top it all off it has separate power LEDs and drive activity LEDs. The power LEDs (green) are on when a drive is in the bay and the drive activity LEDs (orange) blink when there is drive activity. In a dark room when all four bays are humming along it is a sight to behold!
Note: I am using 3 Western Digital 3TB green drives and one old Seagate 320GB and all of them work well with the unit. The case is a Cooler Master mid t

4 out of 4 people found this review helpful. Did you? Yes No
