Item#: N82E16820227763

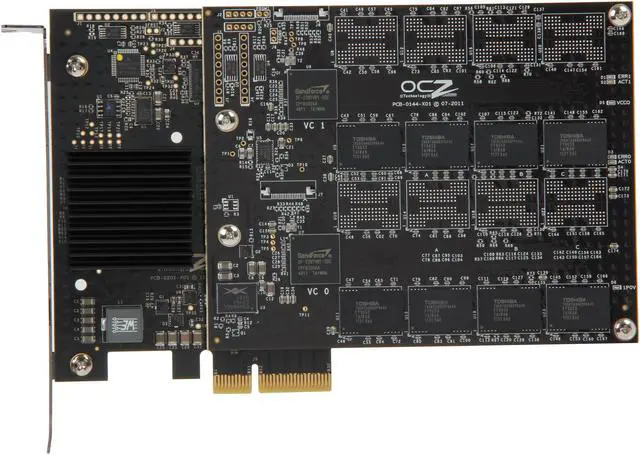

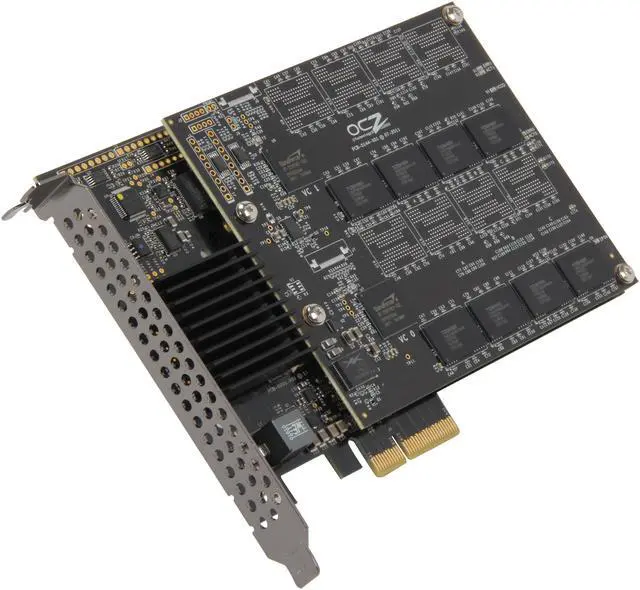

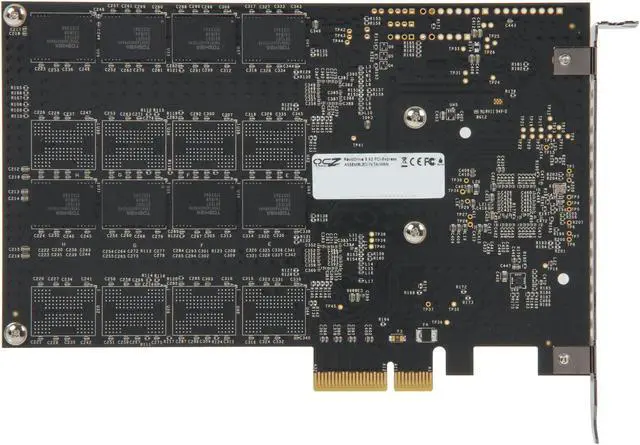

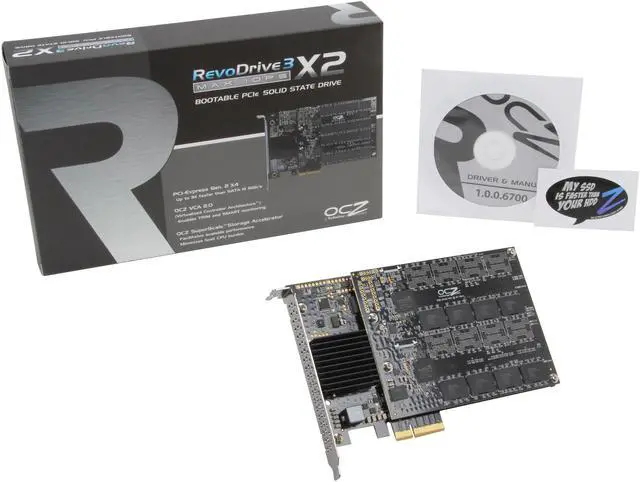

OCZ RevoDrive 3 X2 Max IOPS RVD3MIX2-FHPX4-240G PCI-E 240GB PCI-Express 2.0 x4 MLC Internal Solid State Drive (SSD)

  • PCI-E
  • 240GB
  • PCI-Express 2.0 x4
ICON Loading...

Designed to deliver maximum throughput in multithreaded applications, the new Max IOPS edition is an extension of the industry-leading RevoDrive 3 product line, supporting workstation users that require greater transactional throughput and bandwidth.

The RevoDrive 3 X2 Max IOPS series combines a proven cutting-edge PCI Express architecture and OCZ proprietary Virtualized Controller Architecture (VCA) 2.0 flash virtualization layer with premium NAND flash components to deliver exceptional 4KB random write performance of up to 245,000 IOPS, along with increased transfer rates at 1900MB/s reads and 1725MBs/ writes.

The RevoDrive 3 X2 Max IOPS edition will be available in 240GB to 960GB capacities, providing ample space for data warehousing, applications, multimedia files, and operating systems with the superior durability, energy efficiency, and reliability of SSDs.

Learn more about the OCZ Technology RVD3MIX2-FHPX4-240G


RevoDrive 3 X2 Max IOPS
Device Type
Internal Solid State Drive (SSD)
Used For


Form Factor
Memory Components
PCI-Express 2.0 x4
185g (may vary slightly due to capacity)


Max Sequential Read
Up to 1600 MB/s
Max Sequential Write
Up to 1500 MB/s
4KB Random Write
Up to 220,000 IOPS
1,000,000 hours


Single Highest Performing SSD in Prosumer Space
- Up to 3X faster than SATA 6 Gb/s solutions
- Uses premium NAND flash components for ever faster bandwidth and IOPS performance
- Takes full advantage of today's multithreaded processors and software
- Bootable as a direct-attach device
- Easy-to-deploy, single card solution

OCZ Virtualized Controller Architecture
- VCA 2.0 presents as a complete storage subsystem for superior data management
- Only virtualization layer in the industry with TRIM and SCSI unmap support
- Enables SMART monitoring for system administrators

OCZ SuperScale Storage Accelerator
- Facilitates scalable performance for intensive workloads
- Unique complex command queuing structure (CCQS) with queue balancing algorithms (QBA)
- Higher performance and reduced burden on the host CPU

ECC Recovery: Up to 55 bits correctable per 512-byte sector (BCH)

Data Reliability: Read unrecoverable bit error rate (UBER) 10e-16 (<1 in 10 bits read)

Data Encryption: 128-bit & 256-bit AES-compliant

Product Health Monitoring: Self-Monitoring, Analysis and Reporting Technology (SMART) Support

Operating System: Windows 7 32-bit and 64-bit


Power Consumption (Idle)
Power Consumption (Active)
Operating Temperature
0°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Max Shock Resistance

Quick Info


  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years

Customer Reviews of the OCZ Technology RVD3MIX2-FHPX4-240G

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Oliver M.
  • 11/2/2012 4:19:05 PM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsUnable to use

Pros: Don't know of any yet. Oh yeh - good packaging.

Cons: Box came with the drive and a CD. CD says Driver and Manual. When disk is accessed only tthe startup program activates. NO MANUAL. Downloaded toolbox from Ocz web site and updated the driver. The Toolbox program said BIOS is latest. Windows 7 Pro 64 bit does not recognize the drive. I can't find it anywhere. SO -- no grade.

Other Thoughts: I would like to make this my boot drive, but NO manual, NO instructions and NO disk availability.

Did you find this review helpful? Yes No

  • William M.
  • 9/24/2012 10:54:29 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsThis thing is the bomb

Pros: I just built a 5K+ gaming rig and if I where to single out the best single piece of HW that yields perceivable speed is this guy. Under all bench-marking tools, you will get 500MB/sec+, no questions asked. My favorite stat is access time: 0.00 msecs :D. Windows flies on this thing and Linux and other more asynchronous OSs are real-time, no questions asked. A truly remarkable piece of engineering.

Cons: none. Those who have reported problems made me think that this thing was "fragile" but is not. I have tinkered with the BIOS and other hardware, and even removed BIOS battery several times. This thing POSTs all the time.

Other Thoughts: This is a no-brainer, get it.

Did you find this review helpful? Yes No

  • David T.
  • 9/19/2012 7:18:10 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsBad Quality that is Unbelievable

Pros: I have bought other cards without this problem

Cons: Being in manufacturing myself, I can not believe that any quality process would allow these cards to pass/ship. Two of the SSD chips that are to be attached to the card were loose in the sealed anti-static bag. I wasn't even comfortable with trying to fire up my unit with this card.

Other Thoughts: makes one wonder what deeper flaws that you can't see lurk deep within these cards.... I will press OCZ for an explaination

Manufacturer Response:

We aplogize for the issue with your purchase. We have no idea how this product could have been shipped to you in this condition. Please visit our support page at the link below and create a support ticket so we can assist you with a proper replacement. We care about our customers and want your experience to be a good one. Thank you

1 out of 1 people found this review helpful. Did you? Yes No

  • Randy T.
  • 6/23/2012 10:02:31 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat for Video Rendering

Pros: Fast!!! - I built my computer specifically to do HD 1080P Video Rendering. The Revodrive 3 X2 Max is the best money I ever spent on a single computer part... I am rendering a 38 min 1080P Video in Adobe Premier CS4 - NTSC 29.97 drop frame, Quality 5, widescreen 16x9, Single Pass, Min Bit rate 25.1 Max 30.... Completed video rendering in 19 minutes 20 seconds... Video File size Almost 6 gig completed.. With conventional hard drives it could take several hours or more to complete the same task... I had the Revodrive2x as my primary drive before and I was still rendering same video and settings 38 min video took 40 min to complete so I was happy with that but the extra 21 minutes I am saving with the 3x is amazing

Cons: If you don't do your research then it can be a real task to install as primary drive. Make Sure the motherboard can boot to PCI if you plan on running this as your C Drive... Tech Note!!! If you use the Driver CD that comes with this drive make sure you take the cd out imediatly after the driver has loaded or you will see an error that windows cant be installed.. If the CD is still in the CD Rom then you will see that error. It Such a simple thing you would think that Microsoft would put a message like REMOVE CD. but no I felt like a complete idiot when I figured out what the problem was... I hope this helps someone save an hour or 2 of problem solving...

Other Thoughts: I am Running an i7 990x - 24 gig Ram - GIGABYTE GA-X58A-UD7 Mobo - Primary Drive OCZ RevoDrive 3 X2 Max - Secondary Drive OCZ RevoDrive X2 and a bunch of SATA drives

3 out of 3 people found this review helpful. Did you? Yes No

  • eric s.
  • 6/12/2012 5:01:16 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsRevo3 x2 220,000iops (Pcie ssd)

Pros: yes it's super fast, faster than anything you have, or Imagine, if you can afford this you will be the King, The Boss of ssd's.
it's a Pcie ssd (w7pro64) 240gb R1600/W1500 mb/s default from ocz.
it reads at 1575mb/s on my system
it writes at 1360mb/s (Atto benchmark)

runs very cool and totally silent of course, this is what system i have it in, for now:

Crosshair IV Extreme.1100T 6cores (4250mhz)
PCIe RevoDrive3 X2 Max IOPS
PCIe.SSd Accelsior OWC
SS PhazeChange Cooling -36c
6970 MSI Lighting
Kingwin Mach1-1220watts
Ram:Ocz.AMD.Edition 2000mhz.C8
Dell U2410 24" IPS

its easy to install with the right motherboards, i had to experiment with mine, the "crosshairIV extreme" was not on the Ocz comptability list but the "crosshair formula" was.
i made a few bios 2002 adjustments(disable ata option rom) in onboard device configuation for my motherboard.
you can have what i have and what others have like this set yourself for it and just do it.
Eric Soovajian 12jun

Cons: none

3 out of 3 people found this review helpful. Did you? Yes No

  • John F.
  • 6/2/2012 2:23:27 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsThis is My Second One

Pros: Fast. Better than any previous RevoDrive - and I've had them all. Easy to setup, works well, no issues.

Cons: Price. It's expensive. Even on sale, there is a premium for this speed. For example, going from a 240 GB Vertex 3 Max IOPS to this is about a 25% speed increase. But the cost is about a 100% increase (about (double).

Other Thoughts: CrystalDiskMark speed tests:

CrystalDiskMark 3.01 x64

Test : 1000 MB
Sequential Read: 1010 MB/s Sequential Write: 503.3 MB/s
Random Read 512KB: 738.9 MB/s Random Write 512KB: 520.1 MB/s
Random Read 4K: 24.95 MB/s Random Write 4K: 51.83 MB/s
Random Read 4K QD32: 418.0 MB/s Random Write 4K QD32:350.2 MB/s

Test : All 0x00, 0Fill
Sequential Read: 1023 MB/s Sequential Write: 942.1 MB/s
Random Read 512KB: 776.1 MB/s Random Write 512KB: 793.1 MB/s
Random Read 4K: 28.16 MB/s Random Write 4K: 53.83 MB/s
Random Read 4K QD32: 455.1 MB/s Random Write 4K QD32: 547.4 MB/s

1 out of 1 people found this review helpful. Did you? Yes No

  • Justin M.
  • 5/7/2012 3:48:28 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsshuttle SX58H7 PRO

Pros: works very well no Problems with install

Cons: None

Other Thoughts: worth noting it works without a problem with the shuttle SX58H7 PRO

2 out of 2 people found this review helpful. Did you? Yes No

  • Anonymous
  • 5/4/2012 12:04:15 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsOperates Flawlessly - Very Fast

Pros: No issues at all. Very fast. 1700 Reads 1500 Writes on x79 motherboard. This is my second Revodrive3 X2. The first was a non-maxiops. Worked perfect also. Depending on motherboard, the maxiops is about 150mbps faster than the async NAND version.

Cons: None.

Other Thoughts: System boots are a few seconds longer than a SataIII SSD.

2 out of 2 people found this review helpful. Did you? Yes No
