Item#: N82E16820227827

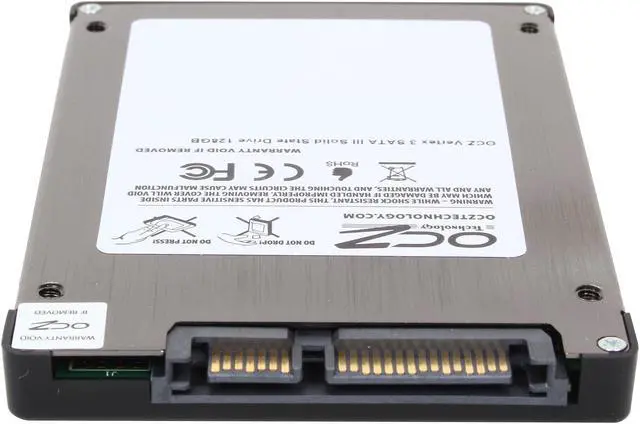

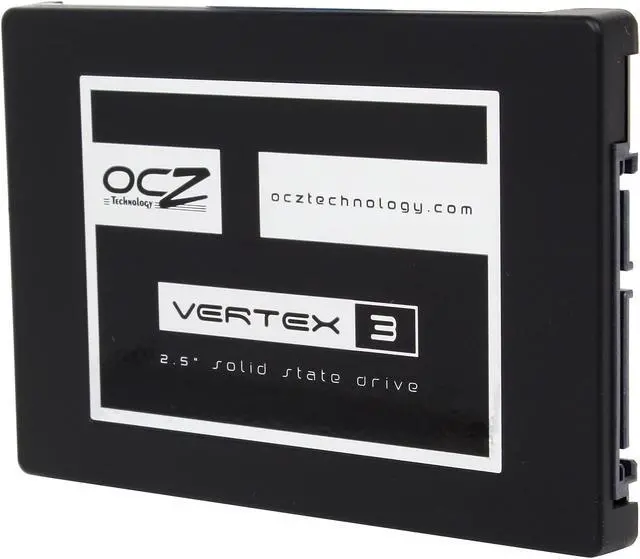

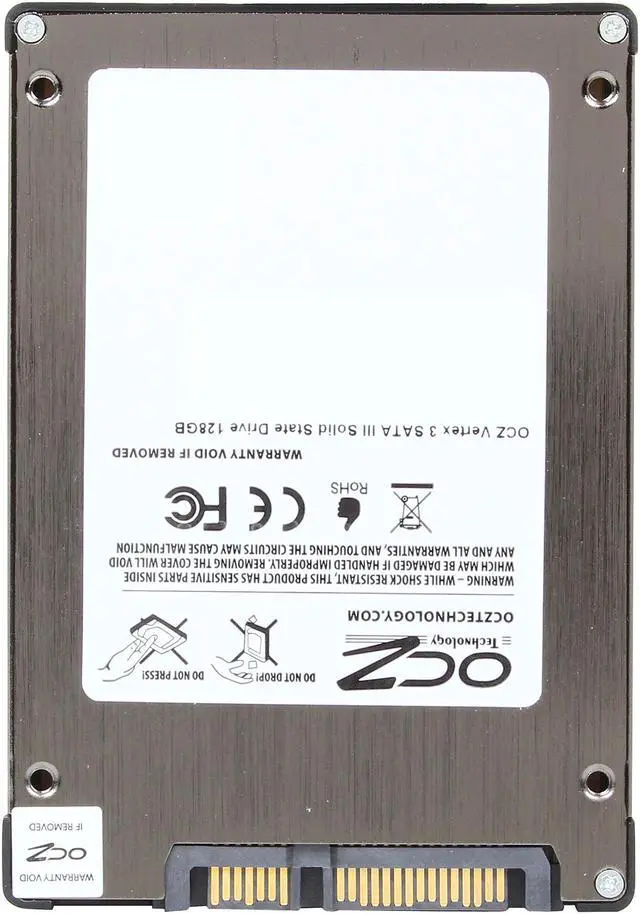

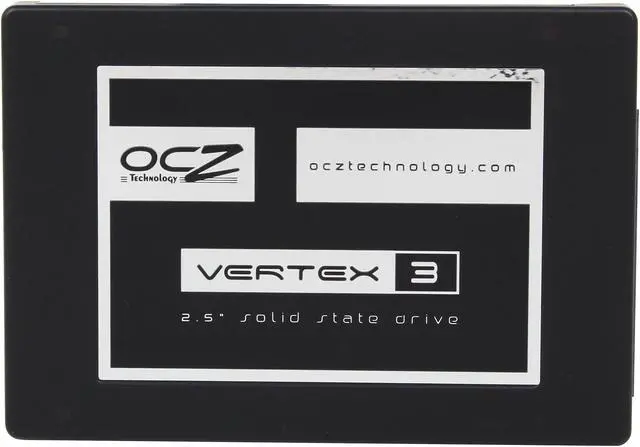

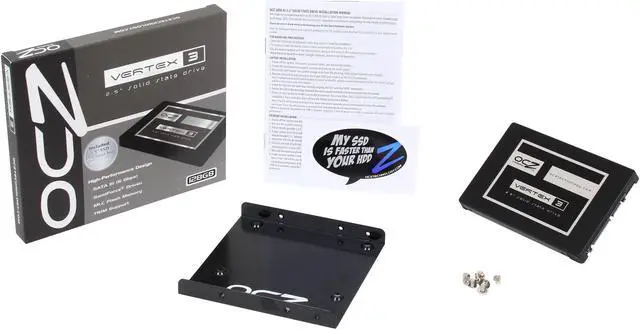

OCZ Vertex 3 2.5" 128GB SATA III MLC Internal Solid State Drive (SSD) VTX3-25SAT3-128G

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 2.5"
  • 128GB
  • SATA III

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

2.5" Solid State Drives / SATA III / MLC / Performance Series / 60GB-512GB

OCZ Vertex 3 Solid State Drives unleash the performance potential of the SATA 6Gbps interface, leading the speed revolution in this next-generation solution. As the first SSD to feature the latest Sandforce controller design, OCZ designed the Vertex 3 to push the limits in both sequential and random read/write rates to blaze past the competition when every MB/s matters. With incredible 4k file writes up to 85,000 IOPS, these latest drives take productivity, gaming, and multimedia applications to the next level to work in perfect symmetry with the latest enthusiast platforms.


Learn more about the OCZ Storage Solutions VTX3-25SAT3-128G

Model

|
Brand
OCZ
Series
Vertex 3
Model
VTX3-25SAT3-128G
Device Type
Internal Solid State Drive (SSD)
Used For
Consumer

Details

|
Form Factor
2.5"
Capacity
128GB
Memory Components
MLC
Interface
SATA III
Controller
SandForce

Performance

|
Max Sequential Read
550 MBps
Max Sequential Write
500 MBps
Sustained Sequential Read
Up to 550MBps
Sustained Sequential Write
Up to 500MBps
4KB Random Read
Up to 20,000 IOPS
4KB Random Write
Up to 60,000 IOPS
MTBF
2,000,000 hours

Features

|
Features
Max Read:
up to 550 MB/s (SATA 6Gbps)
up to 280 MB/s (SATA 3Gbps)

Max Write:
up to 500 MB/s (SATA 6Gbps)
up to 260 MB/s (SATA 3Gbps)

4KB Random Read: 20,000 IOPS (75 MB/s)
4KB Random Write: 60,000 IOPS (235 MB/s)
Maximum 4KB Random Write: 85,000 IOPS (330 MB/s)

Sequential Read AS-SSD: 500MB/s
Sequential Write AS-SSD: 155 MB/s

4K Random Read AS-SSD: 29,000 IOPS (115 MB/s)
4K Random Write AS-SSD: 38,000 IOPS (150 MB/s)

ECC Recovery: Up to 55 bits correctable per 512-byte sector (BCH)

Support Self-Monitoring, Analysis and ReportingTechnology (S.M.A.R.T.)

Fully compliant with Serial ATA InternationalOrganization: Serial ATA Revision 3.0.Fully compliant with ATA/ATAPI-8StandardNative Command Queuing (NCQ)

Note:
1. Maximum Sequential Speeds are determined using ATTO
2. Small file I/O performance is measured using Iometer2008, Queue Depth 32, 4KB Aligned; Logical Block Address (LBA) range: 85%of total drive capacity
3. Small file I/O performance is measured using Iometer2008, Queue Depth 32, 4KB Aligned; Logical Block Address (LBA) range: 8GBIncompressible data performance is measured using AS-SSD; 64 thread for 4K specs
4. Full performance achieved with a native SATA 6Gbps controller

Environmental

|
Power Consumption (Idle)
1.65W
Power Consumption (Active)
3W
Max Shock Resistance
1500G

Dimensions & Weight

|
Height
9.3mm
Width
69.63mm
Depth
99.8mm
Weight
77g
