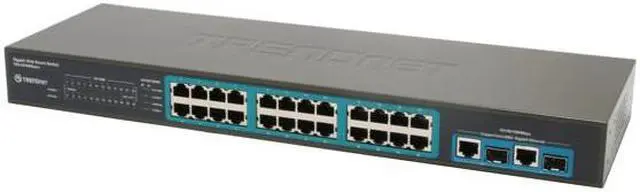

TRENDnet TEG-224WS+ Smart Gigabit Web Smart Switch

(4) Write a Review
  • 8K MAC Address Table
  • 256KB Buffer Memory
  • Smart
Specs
Reviews (4)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the TRENDnet TEG-224WS+

Model
Brand TRENDnet
Model TEG-224WS+
Format & Standards
Format Rackmount
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
IEEE 802.3x Full Duplex Flow Control
Network Management Type Smart
Ports & Interface
Primary Ports 24 x 10/100Mbps Auto-MDIX Fast Ethernet ports
2 pairs x 1000-Based RJ45 Port and Mini-GBIC Slot
Primary Port Speed 10/100Mbps + 1000Mbps
Data Transmission
MAC Address Table 8K
Switching Method Store and Forward
VLAN Support Yes
Jumbo Frames No
Buffer Memory 256KB
Details
Protocols CSMA/CD
PoE No
Stackable No
SNMP No
QoS Yes
LACP No
Layer 2
Port Mirroring Yes
Module Support Yes
Cabling Ethernet: UTP/STP Cat. 3, 4, 5
Fast Ethernet: UTP/STP Cat. 5
Gigabit: UTP/STP Cat. 5, 5E, 6
Mini-GBIC: LC Type Fiber Optic
Topology Star
LEDs Per Unit: Power, System
Per Gigabit Ethernet: Link/ACT, Speed
Per Copper Gigabit Port: Link/ACT, Speed 100M, Speed 1000M, Mini-GBIC
Power Supply
Power 100-240V AC, 50/60Hz Internal Power Supply / 11 Watts (max)
Dimensions & Weight
Dimensions 17.3" x 5.5" x 1.7"
Weight 4.7 lbs.
Environmental
Temperature 0°C to 40°C (32°F to 104°F)
Humidity 10% - 90%, Non-condensing
Features
Features One RJ45 Port or Mini-GBIC Slot of each pair can be used at a time
Full/Half duplex mode for each port (Full Duplex Mode only for Gigabit Ports)
Integrated address Look-Up Engine with 8K absolute MAC address table
Extensive diagnostic LED’s on the front panel
IEEE 802.3x flow control for full-duplex mode
Back pressure flow control for half-duplex mode
Easy configuration the device from a Web browser
Supports Port-Based VLAN, Port-Based QoS and IEEE 802.1p QoS
Supports Trunking (3 trunk groups) and Port Mirroring
Supports Port Based Bandwidth Rate Control (Ingress / Egress Rate)
Support Port setting function allow user setting each port’s speed, duplex mode, and flow control
Standard 19" (1U) Rack-mount design
Packaging

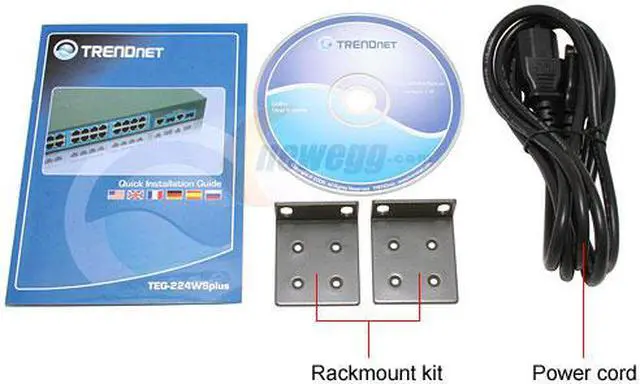

Package Contents TEG-224WS+
Quick Installation Guide
Power Cord
Rack mount kit
Resource Disk
