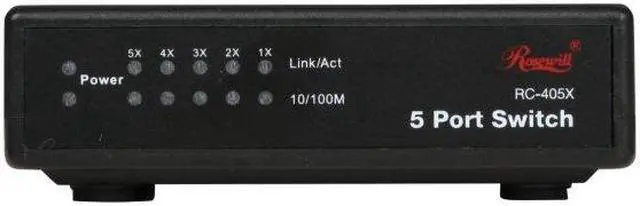

How many ports does it really have? The "Specifications" tab says five "Primary" ports and *no* "Uplink" port, but the picture in the gallery shows ports Up-LINK,1X,2X,3X,4X,5X. On the picture of the front, there are pairs of lights labeled 1X,2X,3X,4X,5X but none labeled Up-LINK. HOWEVER, to the left of the word "Power" there is a *pair* of lights. Is that additional pair for the Up-LINK? I cannot tell whether the word "Power" has a separate light.

I purchased several of these last year for use at various locations. There is no uplink port. And no need for a special cable for up- linking. Just plug in your cable from PC or router or another switch to any of the ports and then attach any ethernet enabled device (PC, TV, Switch, Router, Printer etc) to any or all of the other 4.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

Rosewill;10;10/100M Fast Ethernet Switch 5/8 port RC-405X/RC ... - Rosewill.com

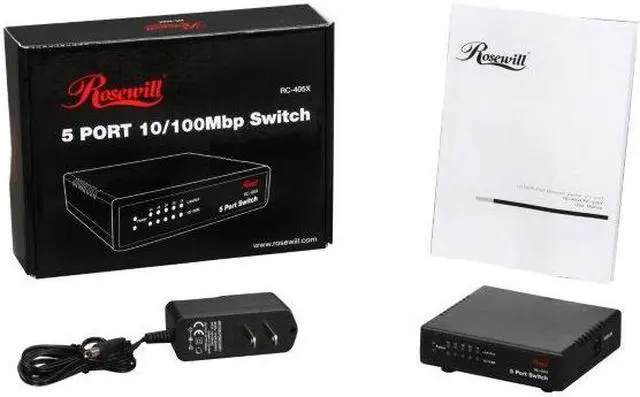

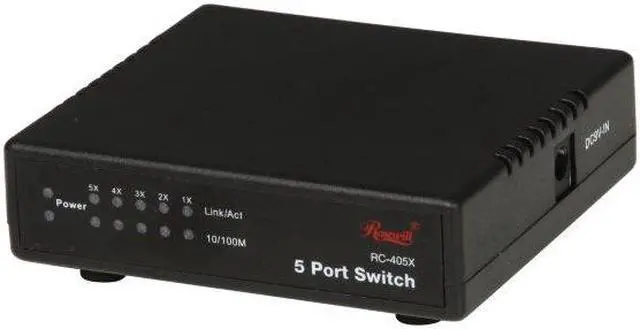

Main image of Rosewill RC-405X 10/100Mbps 5-Port Fast Ethernet Switch

Alt view image 2 of 3 - Rosewill RC-405X 10/100Mbps 5-Port Fast Ethernet Switch

Alt view image 3 of 3 - Rosewill RC-405X 10/100Mbps 5-Port Fast Ethernet Switch

Shop All Rosewill Products

Rosewill RC-405X 10/100Mbps 5-Port Fast Ethernet Switch

(133) Write a Review

5 x RJ45
Simple installation
Built-in error detection

Overview

Specs

Reviews (133)

Any questions? Our AI beta will help you find out quickly.

Try me now

Designed for home or small office, the Rosewill RC-405X delivers the performance you need to build a small-scale Ethernet network. It features 5x Fast Ethernet ports which provide sufficient throughput to address your web surf, email, voice and multimedia streaming within your home network. It is strictly plug and play. Check out this switch and get your network up and running!

Rosewill Fast Ethernet Unmanaged Switch
Model	RC-405X	RC-406X	RFS-105	RFS-108
Product
Product	5-Port FE Switch	8-Port FE Switch	5-Port FE Metal Switch	8-Port FE Metal Switch
Warranty	1 Year Limited Warranty	1 Year Limited Warranty
Warranty	1 Year Limited Warranty	1 Year Limited Warranty	1 to 1 Replacement	1 to 1 Replacement
Enclosure	Plastic	Plastic	Metal - Sturdy - Better Heat Dissipation	Metal - Sturdy - Better Heat Dissipation
MAC Address Table	2K	4K	1K	8K
802.3x Flow Control	Yes	Yes	Yes	Yes
Green Ethernet	-	-	Yes	Yes
Rack Mountable	-	-	Yes	Yes

Half/full-duplex CompatibleWith full-duplex support, Rosewill RC-405X can work at data rates of 10, 20 and 100Mbps. It also supports half-duplex mode. On the top of that, each RJ45 supports auto-sensing and negotiation, which allows flexibility between network devices.
Network OptimizationThe RC-405X supports store-and-forward switching for improved overall network performance, spanning tree protocol eliminating network loops, and port trucking and load sharing for high-performance servers and inter-switch links.

Model
Brand	Rosewill
Model	RC-405X

Format & Standards
Standards	IEEE802.3, IEEE802.3u, IEEE 802.3x

Ports & Interface
Uplink Ports	None
Primary Ports	5 x RJ45
Primary Port Speed	10/100Mbps

Data Transmission
Switching Method	Store and Forward

Details
Protocols	CSMA/CD
PoE	No
Layer	Layer 2 Only
Topology	Star
LEDs	Power, Link/Act

Power Supply
Power	9V 0.5A

Dimensions & Weight
Dimensions	5.5" x 3.3" x 1.1"

Environmental
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% - 90%, Non-condensing

Features
Features	Simple plug & play installation and use Easy to use with built-in error detection and correction Suitable for desktop use and ideal for Small Office, Home Office Store-and-forward switching improves overall network performance Supports full-duplex switching bandwidth modes, allowing data rates of 10, 20 and 100Mbps Full-duplex transfer mode / half-duplex adaptive 10/100Mbps auto-sensing and negotiation allows flexibility between network devices Wire-speed forwarding: 148,800pps/100Mbps and 14,880pps/10Mbps High-performance memory bandwidth and expansion bus Supports the spanning tree protocol, eliminating network loops Supports broadcast storm control function Supports port trucking and load sharing for high-performance servers and inter-switch links. Provides a convenient uplink port for cascading hubs Auto-partitioning and data collision control Auto-polarity detection

Additional Information
First Listed on Newegg	October 05, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 45 days

Return for replacement within: 1 year

This item is covered by Newegg.com's 45/1 Return Policy. Read full return policy for details.
