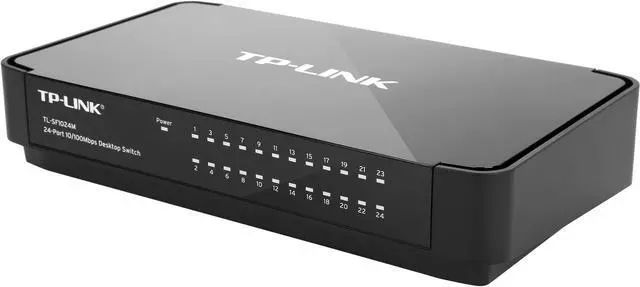

TP-Link TL-SF1024M 24-Port 10 / 100Mbps Desktop Switch

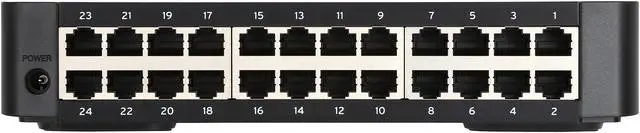

- 24 10 / 100Mbps Auto-Negotiation RJ45 ports
- Green Ethernet technology saves the power up to 67%
- IEEE 802.3x flow control provides reliable data transfer
- Plug and play, no configuration required
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TP-Link TL-SF1024M
| Brand | TP-Link |
|---|---|
| Model | TL-SF1024M |
| Format | Desktop |
|---|
| Primary Ports | 24 x RJ45 |
|---|---|
| Primary Port Speed | 10/100Mbps |
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| Power | Power Consumption Maximum: 3.68W (220V/50Hz) External Power Supply: 100~240VAC, 50/60Hz |
|---|
| Features | Innovative energy-efficient technology saves power up to 67% Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput 4.8Gbps Switching Capacity Auto-MDI / MDIX eliminates the need for crossover cables Supports MAC address auto-learning and auto-aging Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware. Fanless design ensures quiet operation Desktop or wall-mounting design Plug and Play design simplifies installation |
|---|
| Dimensions | 1.80" x 8.70" x 5.00" |
|---|---|
| Weight | 1.7 |
| Temperature | Operating Temperature: 0 degree C ~ 40 degree C (32 degree F ~ 104 degree F); Storage Temperature: -40 degree C ~ 70 degree C (-40 degree F ~ 158 degree F); |
|---|---|
| Humidity | Operating Humidity: 10% ~ 90% non-condensing; Storage Humidity: 5% ~ 90% non-condensing |

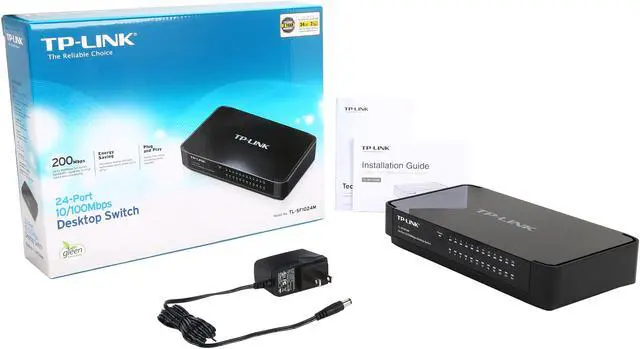

| Package Contents | 24-Port 10 / 100Mbps Desktop Switch TL-SF1024M Power Adapter Installation Guide |
|---|
| First Listed on Newegg | September 21, 2015 |
|---|
