Question 1

I was wondering, the product has 8 Channels but only comes with 4 cameras. Will I be able to add any other camera from the KGuard product line or will I need to purchase another 600 TVL camera?

Accepted Answer

Actually, any camera with a BNC termination will work. You don't have to buy the same camera (or brand).

Question 2

Does this DVR include the hard drive?

Accepted Answer

Comes complete and ready to go!  A 500 Gb hard drive is installed.  Also, there are instructions to replace the drive yourself if ever needed.  I am currently running 5 cameras and have over 30 days of history maintained on the hard drive.

I am very pleased with the Kguard product.  Remote viewing has been a wonderful option from my smartphone.

Question 3

How long are the camera cables that come with this kit?

Accepted Answer

50 ft each and they don't have an audio wire just power in video

Question 4

does this come with a hard drive?

Accepted Answer

Yes it did. Mine had a 500 gig laptop hard drive. It also has a bay for a desktop size hard drive. You can barely see it through the vents. Also download everything you can find for this thing. It has a learning curve. After a couple of days I am quite happy.

Question 5

Under Specifications it says Remote control: Yes. What does this mean? Are these cameras fixed or remote control?

Accepted Answer

A remote comes with the security system to control the black box. You're able to access the options via the box itself but the remote also enables you to access the features as well.

The cameras are fixed, they do not rotate but stay in one place.

Question 6

are the cameras wireless?

Accepted Answer

No. It comes with one 60ft cable per camera (four total). Each cable carries power and video but no audio. The DVR supports audio but the supplied cameras do not.

Question 7

How are these cameras powered? Is it over the video cable or through the power adapter? If adapter how many come with the kit?

Accepted Answer

The power to the cameras is supplied through the BNC cables that come with the unit.   Alternatively, you could run Cat5e cable with a balun adapter to supply power and transmit video (not included).  The power supply for the cameras is co-located with the DVR and the BNC cable has a power plug on both ends.  When you see it, it will make sense.  Just make sure that when you are running the cable, that you have the proper connector on the DVR side and the camera side (ie. one side has a male plug, and the other a female plug).  It would be a real pain if you ran the cable through walls and ceilings only to find out you got them backwards.   It's a good idea to hook this system up and test it for a week or two before permanent installation to make sure the camera's and cable function properly.  This is my third K Guard system and I have never had an issue, but if you do, you must return the entire system to Newegg, cables and all (not just the defective camera or DVR).

Question 8

Is this a wireless system?

Accepted Answer

NO it is a wired system but can be accessed through smartphone or tablet.  The app is available free.

Question 9

Where do I find Software for my Imac to run the system ?

Accepted Answer

Try the following site:

kguardsecurity_server289_com/kguard/KguardWEBSite/Software/KViewforMac

and

kguardsecurity_server289_com/kguard/KguardWEBSite/Software/OTTCDVRPlayerforMAC

replace "_" with "." since newegg does not allow website links

Question 10

How long is each (BNC to RCA)video cable in the Kit?

Is the BNC cable also power for the camera?

Accepted Answer

I would approximate the BNC cable length at 75ft. The BNC does not supply power for the camera. The cable is a siamese cable (2 cables fused together) and has a separate DC cable attached with the appropriate DC jack to mate to the camera. These cables are thin and cannot tolerate much heavy pulling. If you plan on routing thru walls and long runs, it's better to get a RG59/RG-6 siamese cable. The finished product will be much more durable.

Brand	KGuard
Model	KG-OT801-4HW227A-500G
Type	Kit Solution

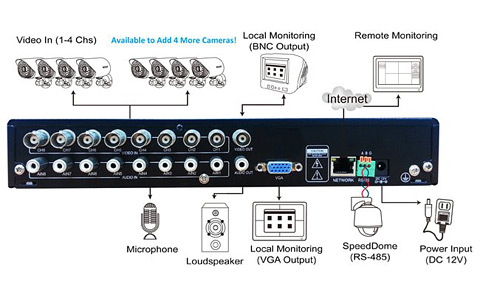

Camera inputs	8 Channel

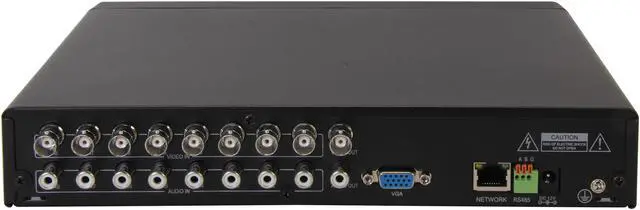

Video Input	8 x BNC
Audio Input	8 x RCA
Resolution Recording	NTSC: CIF(352x240), HD1(704x240), D1(704x480)
Recording Frame Rate	NTSC: 240fps@CIF, 120fps@HD1, 60fps@D1; PAL: 200fps@CIF, 100fps@HD1, 50fps@D1
Recording Mode	Always / Schedule / Motion detection / Remote Recording
Recording Compression	H.264 Level

Video Output	1 x BNC, 1 x VGA
Audio Output	1 x RCA
Display Frame Rate	NTSC: 240fps / PAL: 200fps

Network Connection	RJ45, 10M/100M
Network Protocol	TCP/IP, DHCP, DDNS, PPPoE Playback

Features	Quick Do-It-Yourself installation 8 Channels & H.264 compression latest recording technology Motion detection with instant email notification Pre-recording feature allows additional images to be captured prior to the motion detected event Free Kview series allows remote monitoring and control on your smartphones and tablets KGUARD Fulcolor to provide excellent colorful images Using 6mm fixed lens with 40 degrees viewing angle to monitor particular areas 600 TVL high resolution to make video clearer Night vision up to 20m/65ft in total darkness Waterproof case to protect the camera and survive rainy days.
Power Supply	DC 12V/2A
Remote Control	Yes

KGuard KG-OT801-4HW227A-500G 8 Channel DVR Security System & 4 Cameras 600 TVL with Smartphone and Tablet Remote viewing

One Touch Series - OT801-4HW227A

Features

What It Is and Why You Need It

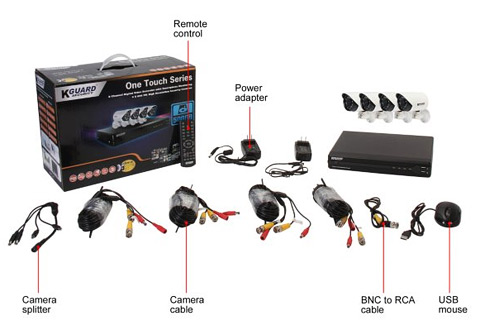

What's in the Box

Learn more about the KGuard KG-OT801-4HW227A-500G

Customer Reviews of the KGuard KG-OT801-4HW227A-500G

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

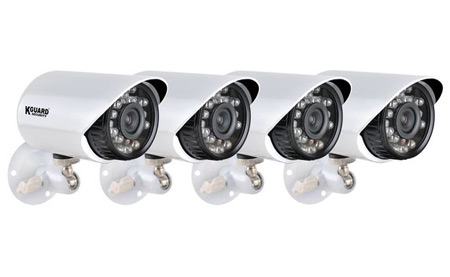

Bundled Camera Number	4

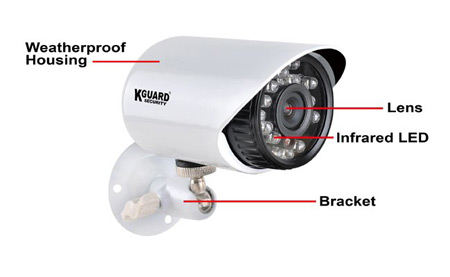

Bundled Camera Spec	Image Sensor: KGUARD Fulcolor Pixels: 728(H) x 560(V) Electronics Shutter: NTSC 1/60-1/100,000(sec), PAL 1/50-1/100,000(sec) Horizontal Resolution: 600 TVL Lens: 6mm Fixed Viewing Angle: 40 Degrees Video Output: 1.0VP-P, 75 ohms S/N Ratio: More than 48dB(AGC OFF) Day / Night Mode: Color during day / switches to B&W at night Minimum Illumination: While Infrared LED ON 0 lux Gain Control: Auto Backlight Compensation: Auto Night Vision Distance: 20m / 65ft Illumination Infra-Red Wavelength: 850nm Infra-Red LED Life: 10,000hrs Indoor / Outdoor: Weatherproof (Both) Dimensions - Camera with Stand: (WxDxH) 95x58x138mm Weight - Camera with Stand: 295g / 0.65lbs.

Item#: N82E16881377072
